Removal

LIGHTING (INT): BACK DOOR COURTESY SWITCH: REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

2. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (w/o Smart Key System)

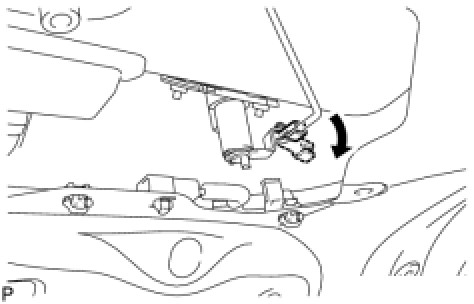

(a) Disconnect the rod as shown in the illustration.

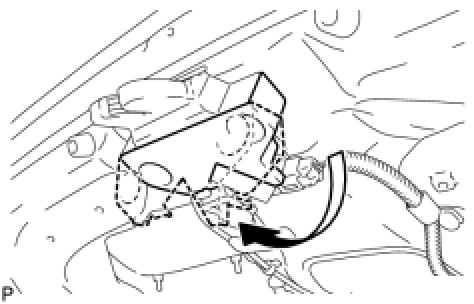

(b) Raise the cover of the luggage compartment door lock as shown in the illustration.

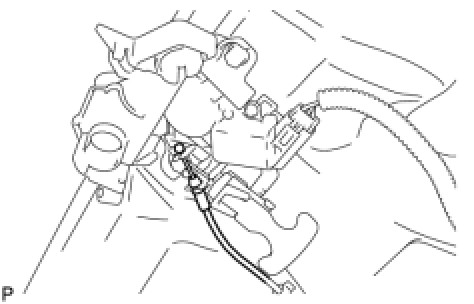

(c) Disconnect the luggage door lock control cable sub-assembly.





(d) Return the cover of the luggage compartment door lock to its original position.

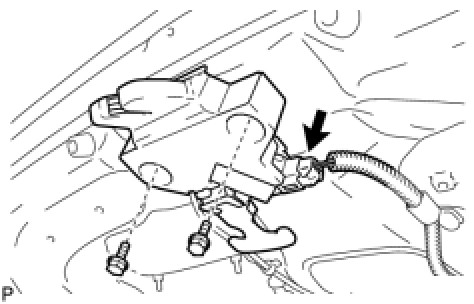

(e) Disconnect the connector.





(f) Remove the 2 bolts and luggage compartment door lock assembly.

3. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY (w/ Smart Key System)

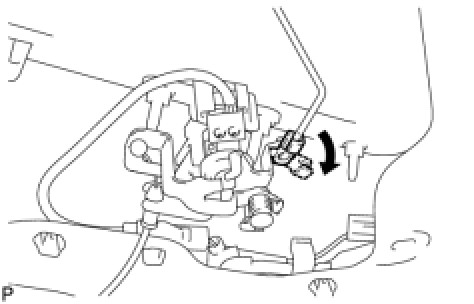

(a) Disconnect the rod as shown in the illustration.





(b) Disconnect the connector.





(c) Remove the 2 bolts and luggage compartment door lock assembly.
