Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Service and Repair >> Overhaul >> Disassembly

Disassembly





METER / GAUGE / DISPLAY: COMBINATION METER: DISASSEMBLY; 2013 MY Corolla [07/2012 -]

1. REMOVE COMBINATION METER GLASS

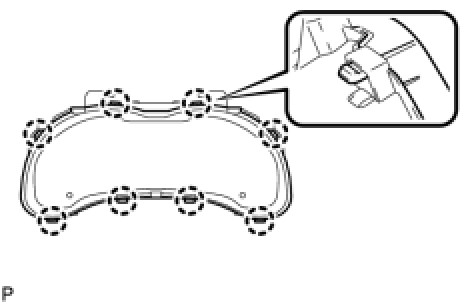

(a) Disengage the 8 claws and remove the combination meter glass.
