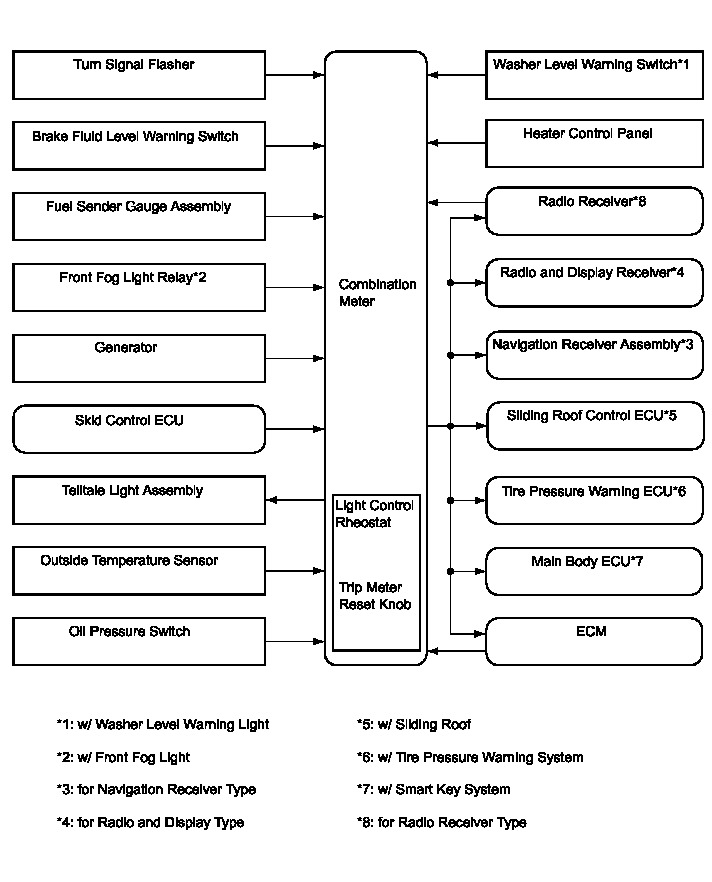

System Diagram

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DIAGRAM; 2013 MY Corolla [07/2012 -]

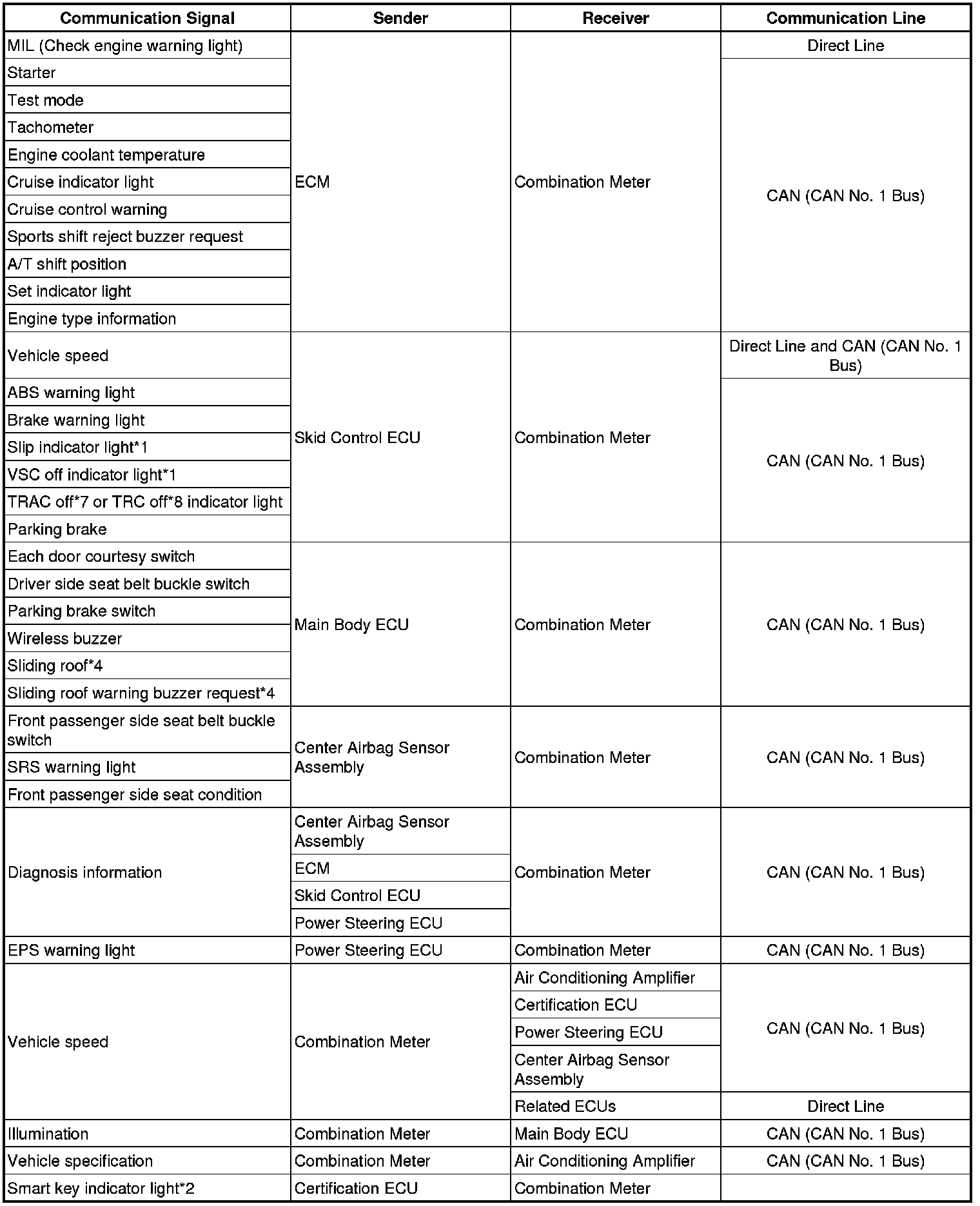

1. CAN SIGNAL

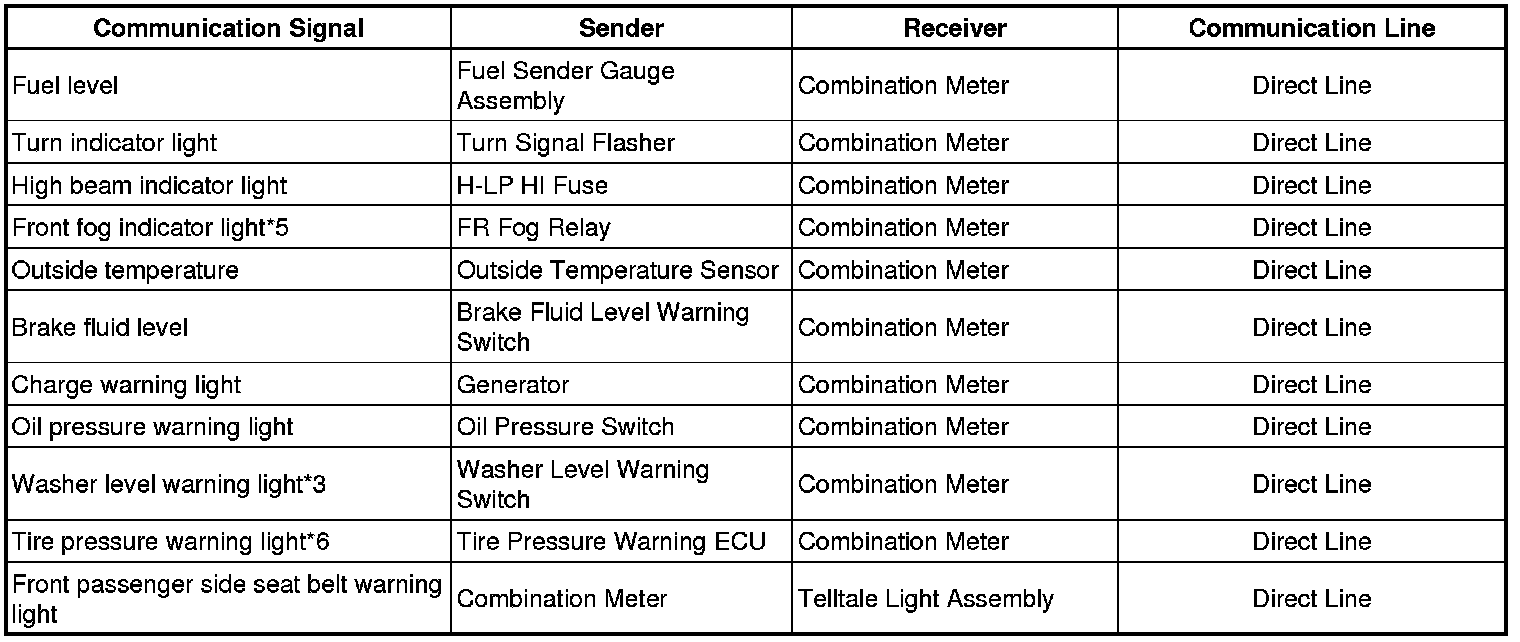

2. DIRECT LINE SIGNAL





3. INPUT AND OUTPUT SIGNALS OF THE COMBINATION METER









* *1: w/ VSC

* *2: w/ Smart Key System

* *3: w/ Washer Level Warning Light

* *4: w/ Sliding Roof

* *5: w/ Front Fog Light

* *6: w/ Tire Pressure Warning System

* *7: w/ mph units

* *8: w/ km/h units
