System Description

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION; 2013 MY Corolla [07/2012 -]

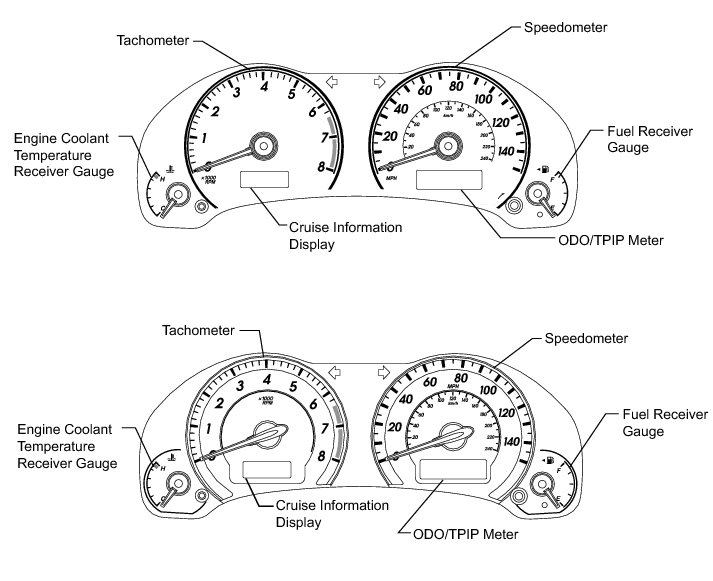

1. OUTLINE OF THE COMBINATION METER

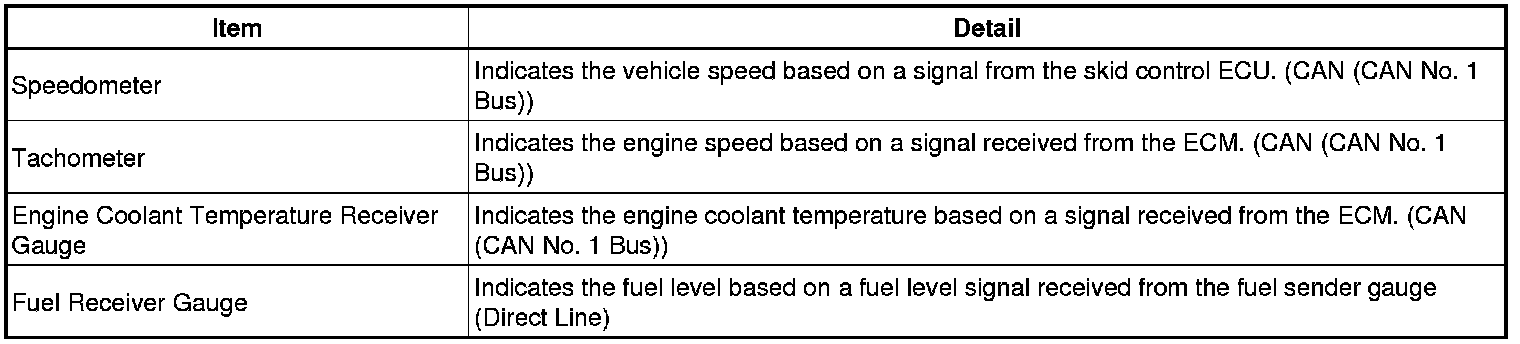

(a) Meter/Gauge

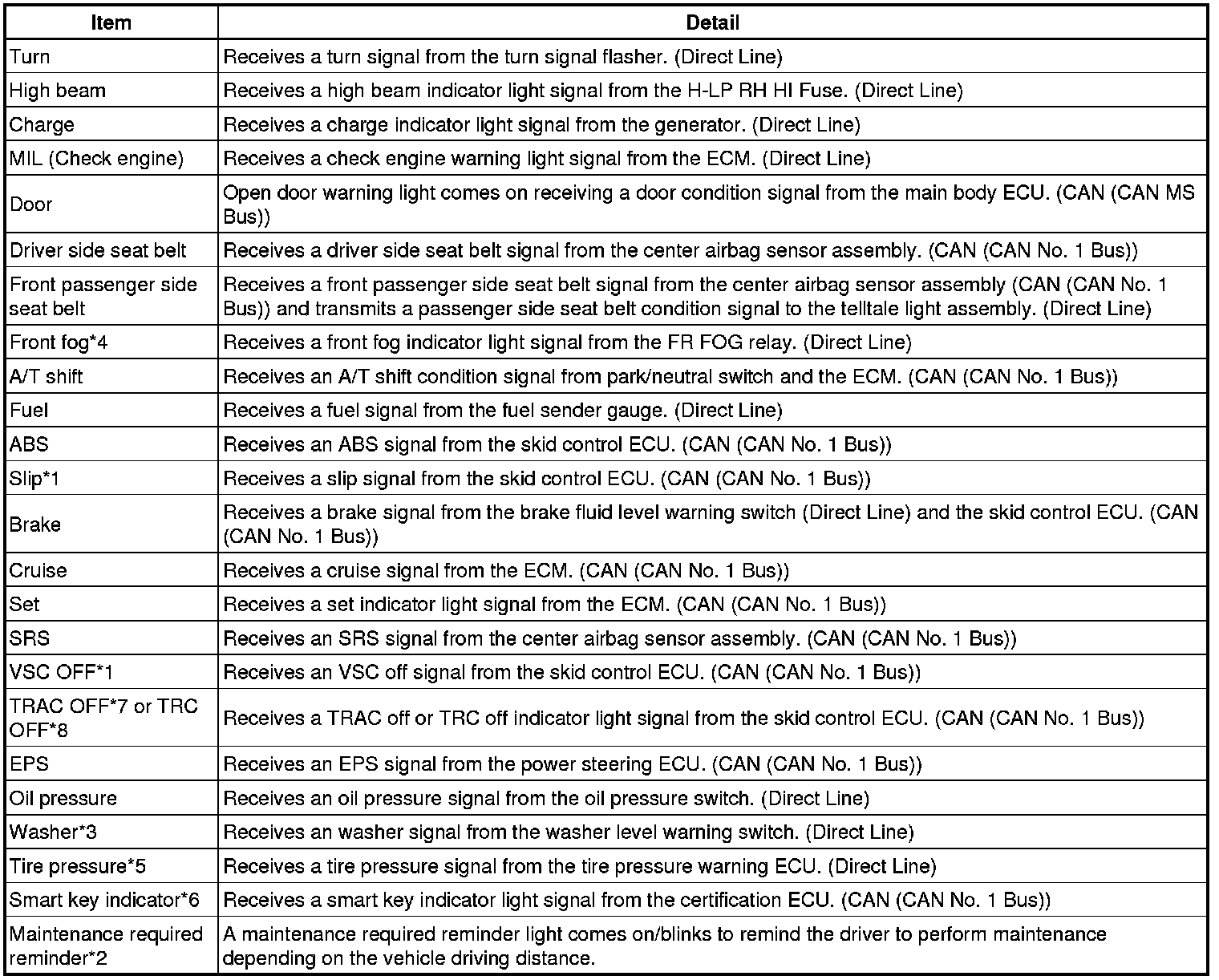

(b) Warning/Indicator





* *1: w/ VSC

* *2: for U.S.A.

* *3: w/ Washer Level Warning Light

* *4: w/ Front Fog Light

* *5 w/ Tire Pressure Warning System

* *6 w/ Smart Key System

* *7: w/ mph units

* *8: w/ km/h units

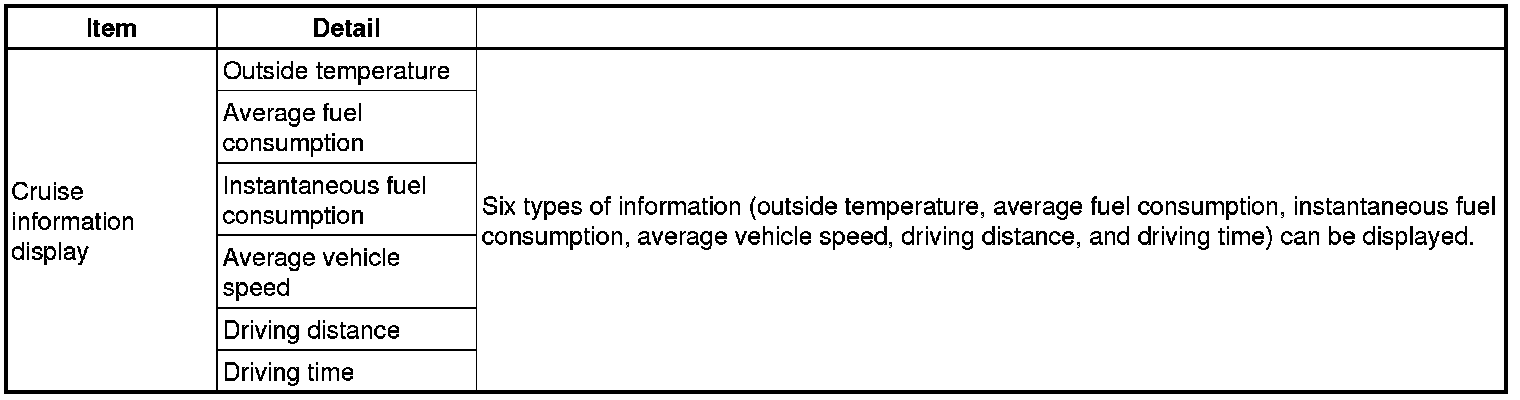

(c) Cruise Information Display





2. LED INITIAL CHECK

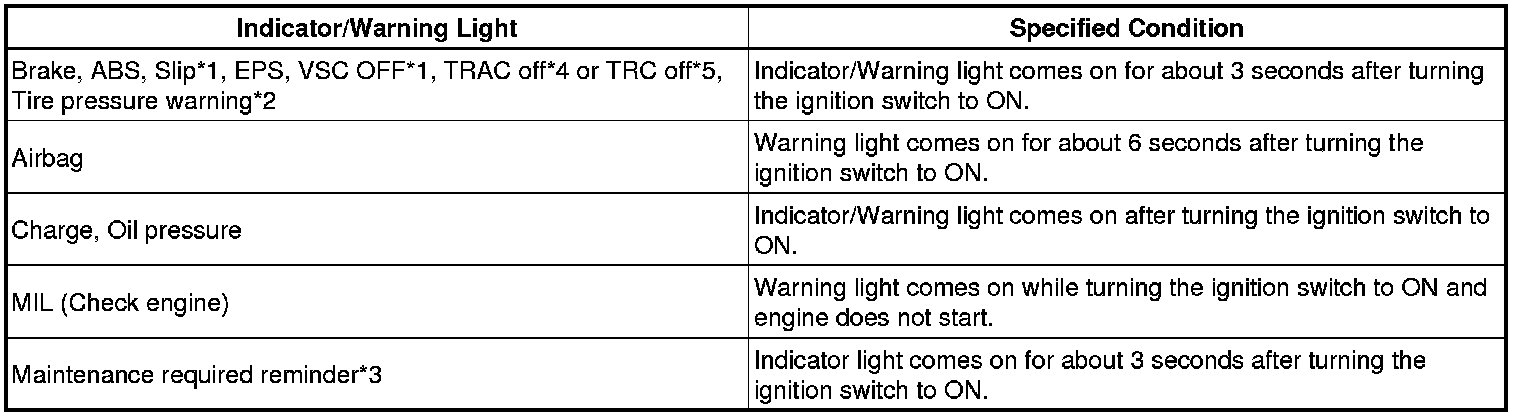

(a) The illumination function of the warning, indicator, or reminder light listed below can be confirmed when turning the ignition switch to ON.

OK:





* *1: w/ VSC

* *2: w/ Tire Pressure Warning System

* *3: for U.S.A.

* *4: w/ mph units

* *5: w/ km/h units
