Reassembly

INTERIOR PANELS / TRIM: LOWER INSTRUMENT PANEL: REASSEMBLY; 2013 MY Corolla [07/2012 -]

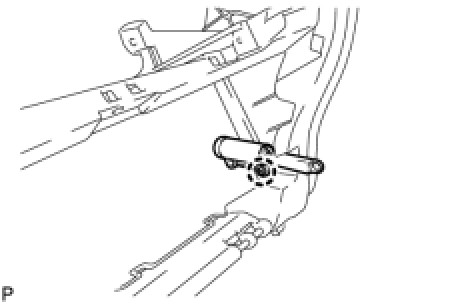

1. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY

(a) Engage the claw and install the glove compartment door stopper sub-assembly.





2. INSTALL ROOM TEMPERATURE SENSOR (for Automatic Air Conditioning System)

(a) Engage the 2 claws and install the room temperature sensor.





3. INSTALL NAVIGATION ANTENNA CORD SUB-ASSEMBLY (w/ Navigation System) Installation
