HEATING / AIR CONDITIONING: SOLAR SENSOR: INSTALLATION; 2013 MY Corolla [07/2012 -]

1. INSTALL SOLAR SENSOR

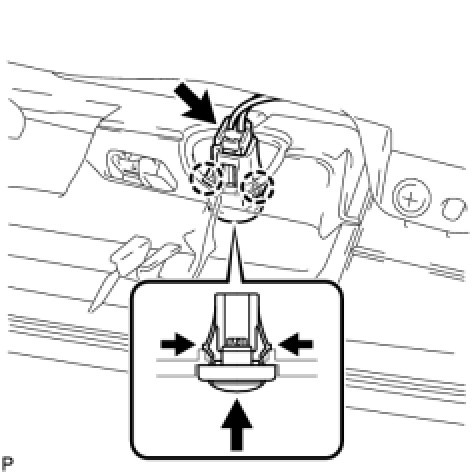

(a) Engage the 2 claws and install the solar sensor.





(b) Connect the connector.

2. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY
