Removal

HEATING / AIR CONDITIONING: AIR CONDITIONING PRESSURE SENSOR: REMOVAL; 2013 MY Corolla [07/2012 -]

1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

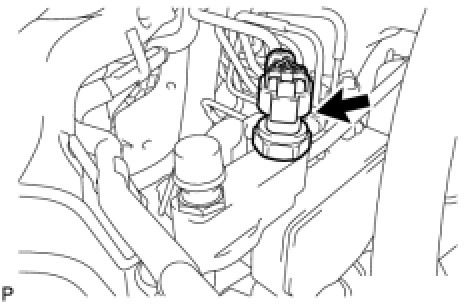

2. REMOVE AIR CONDITIONING PRESSURE SENSOR

(a) Disconnect the connector.





(b) Remove the air conditioning pressure sensor.
