Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Air Conditioning System (For Automatic Air Conditioning System)

Air Conditioning System (For Automatic Air Conditioning System)

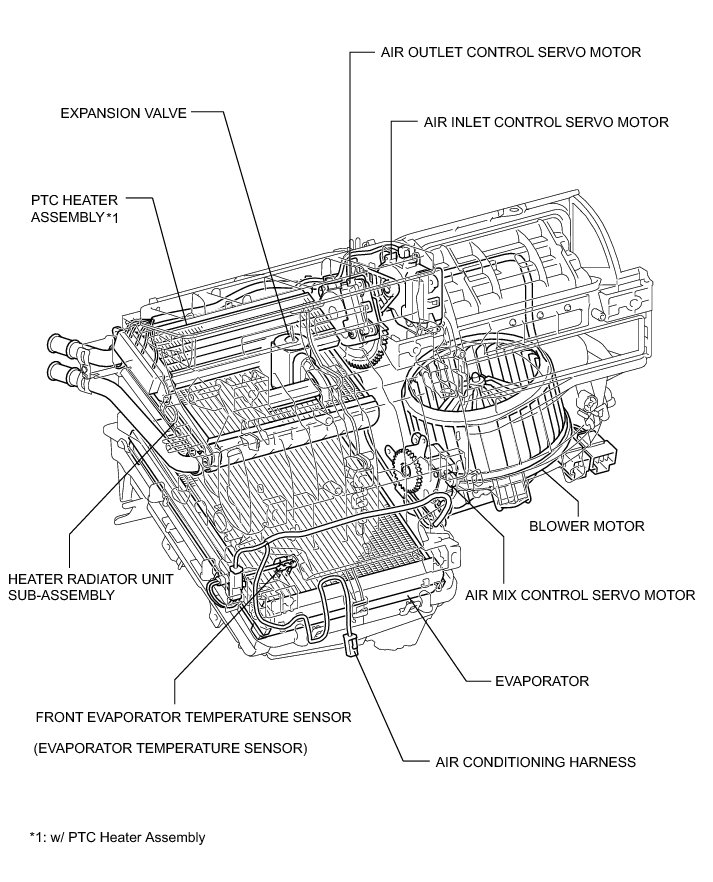

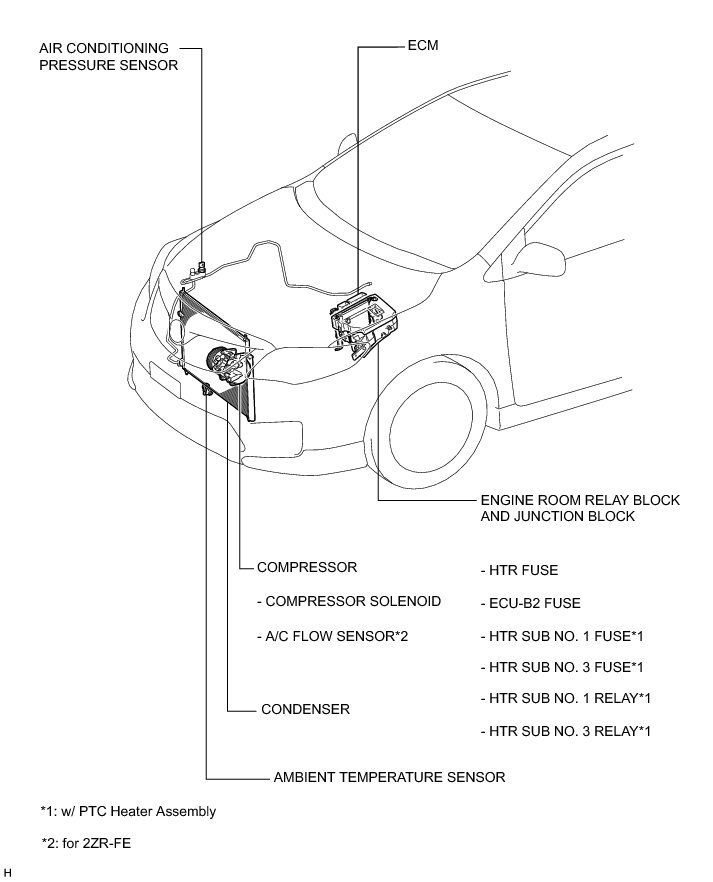

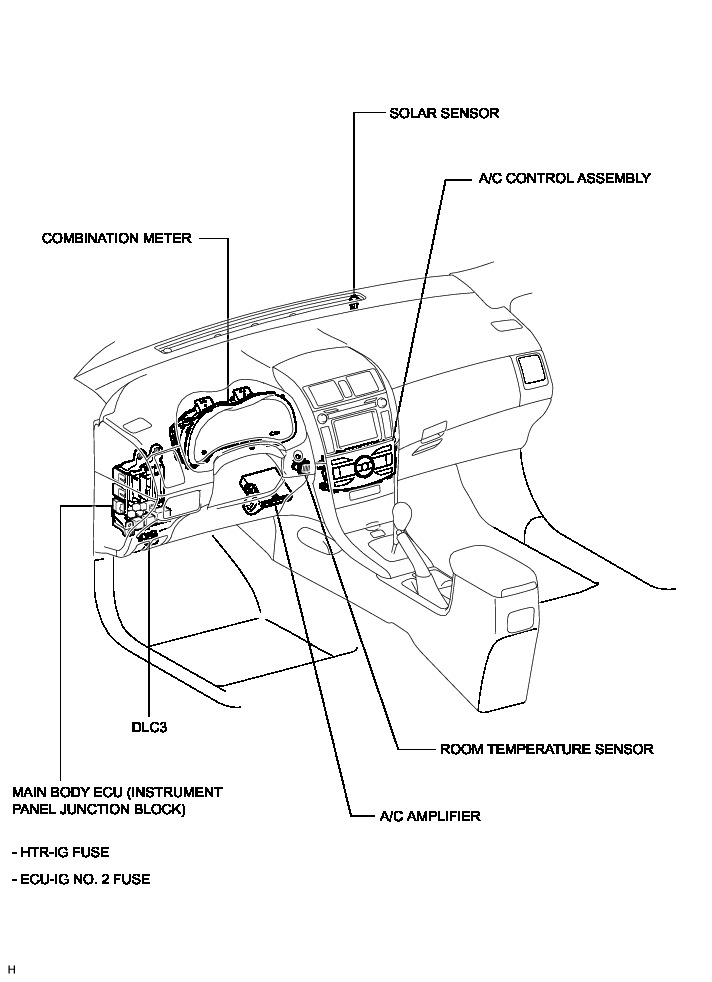

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System): PARTS LOCATION; 2013 MY Corolla [07/2012 -]
