Inspection

HEATING / AIR CONDITIONING: COMPRESSOR (for 2ZR-FE): INSPECTION; 2013 MY Corolla [07/2012 -]

1. INSPECT COMPRESSOR ASSEMBLY WITH PULLEY (COMPRESSOR SOLENOID)

(a) Disconnect the connector from the compressor assembly with pulley (compressor solenoid).

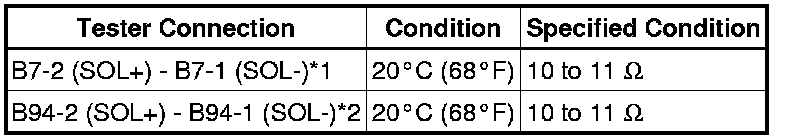

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





* *1: for TMC Made

* *2: except TMC Made

Text in Illustration





If the resistance is not as specified, replace the compressor assembly with pulley (compressor solenoid).
