Blower Motor Resistor: Testing and Inspection

HEATING / AIR CONDITIONING: BLOWER RESISTOR: INSPECTION; 2013 MY Corolla [07/2012 -]

1. INSPECT BLOWER RESISTOR (for Manual Air Conditioning System)

(a) Disconnect the connector from the blower resistor.

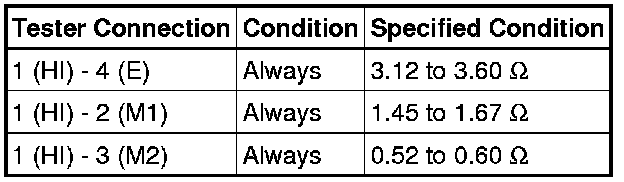

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the resistance is not as specified, replace the blower resistor.
