HEATING / AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: INSTALLATION; 2013 MY Corolla [07/2012 -]

1. INSTALL AMBIENT TEMPERATURE SENSOR

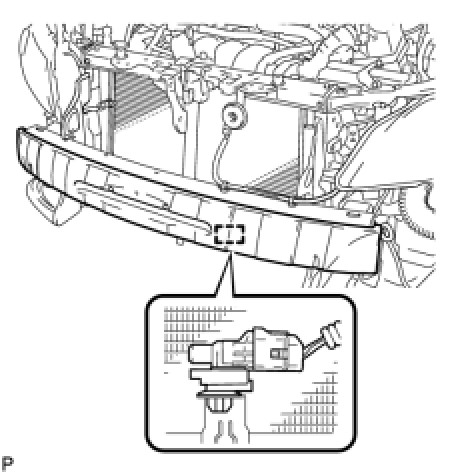

(a) Engage the clamp and install the ambient temperature sensor.





(b) Connect the connector.

2. INSTALL FRONT BUMPER ASSEMBLY (for 2AZ-FE) Installation

3. INSTALL FRONT BUMPER ASSEMBLY (for 2ZR-FE) Installation

4. INSTALL NO. 4 ENGINE UNDER COVER (for 2AZ-FE) Installation

5. INSTALL RADIATOR GRILLE PROTECTOR Installation

6. ADJUST FOG LIGHT AIMING (w/ Fog Light)

Adjustments
