Removal

2ZR-FE COOLING: WATER PUMP: REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE NO. 2 CYLINDER HEAD COVER Removal

2. REMOVE ENGINE UNDER COVER RH

3. DRAIN ENGINE COOLANT Service and Repair

4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

5. REMOVE V-RIBBED BELT Removal

6. REMOVE GENERATOR ASSEMBLY Removal

7. REMOVE WATER PUMP ASSEMBLY

(a) Remove the 5 bolts and water pump assembly from the timing chain cover.

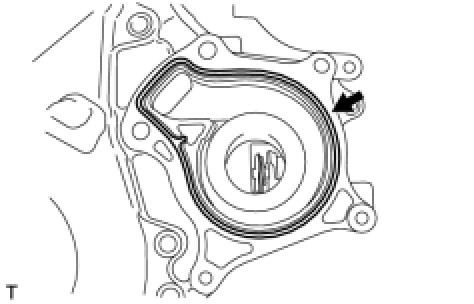

(b) Remove the water pump gasket from the timing chain cover.
