FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Toyota
>>
2013
>>
Corolla L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Service and Repair
>>
Removal and Replacement
>>
Engine Assembly
>>

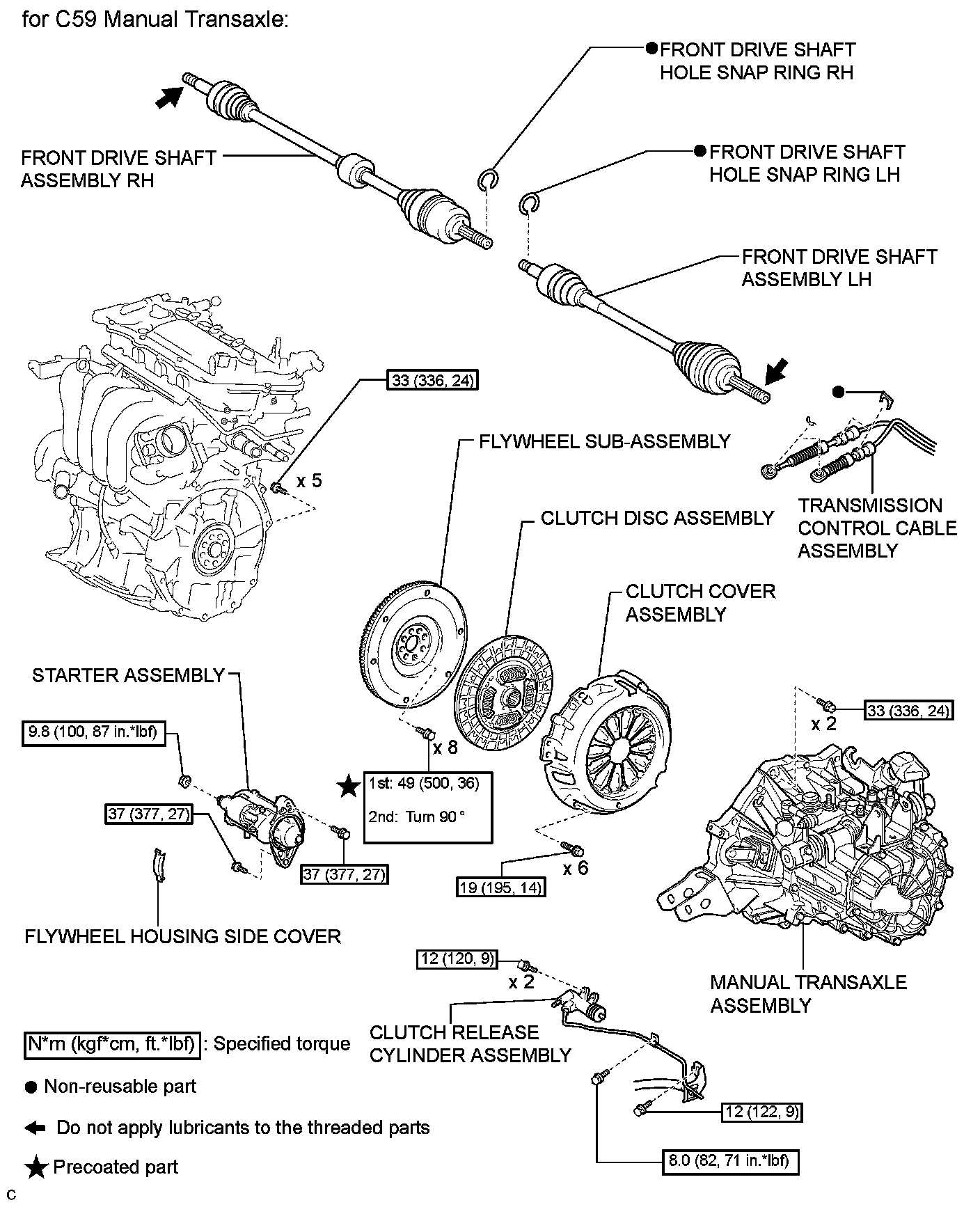

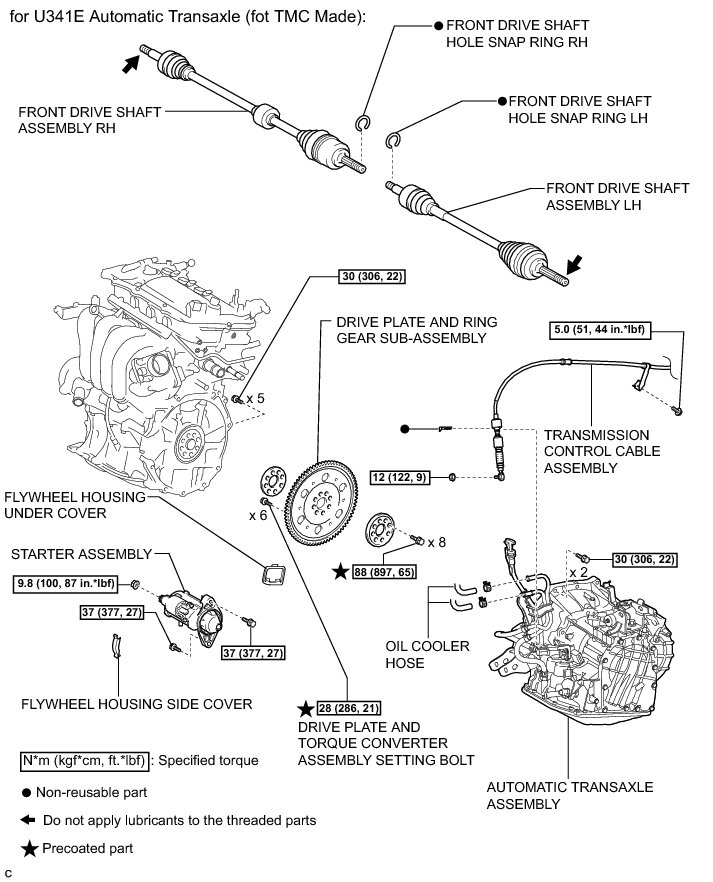

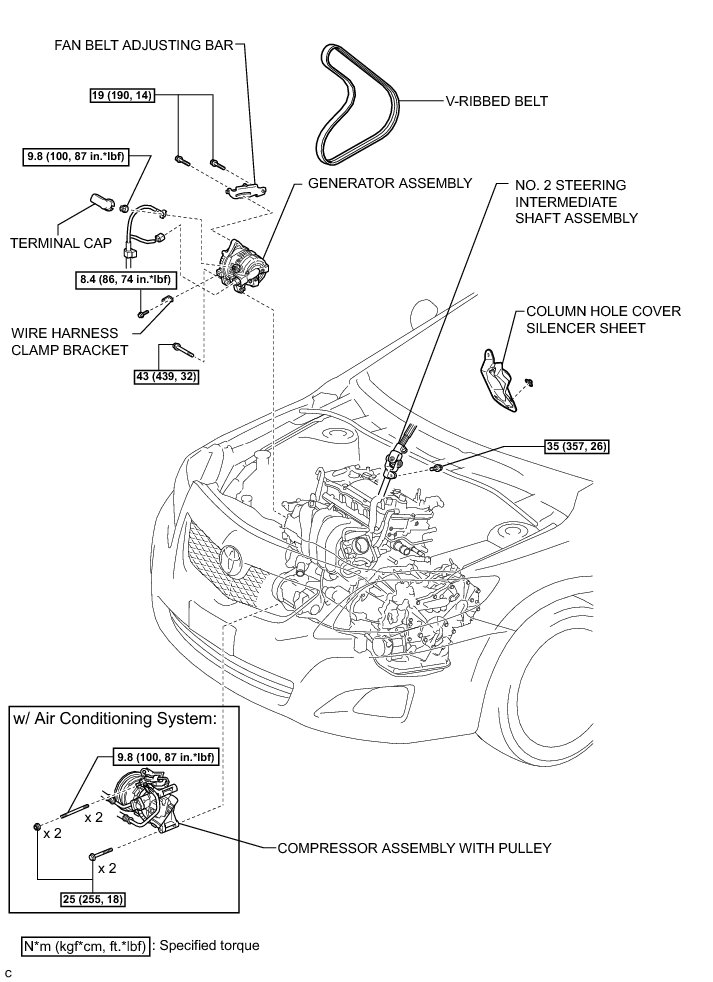

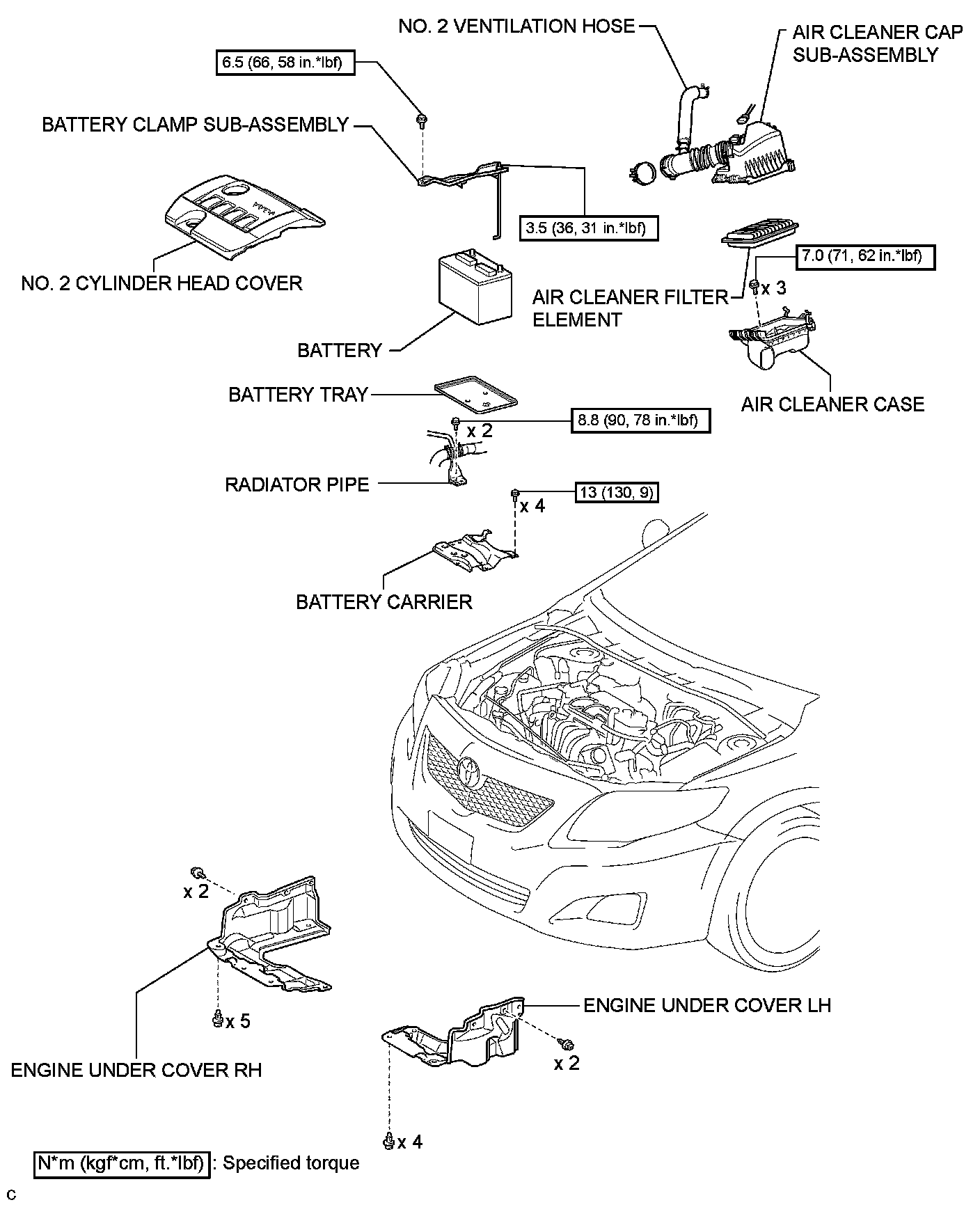

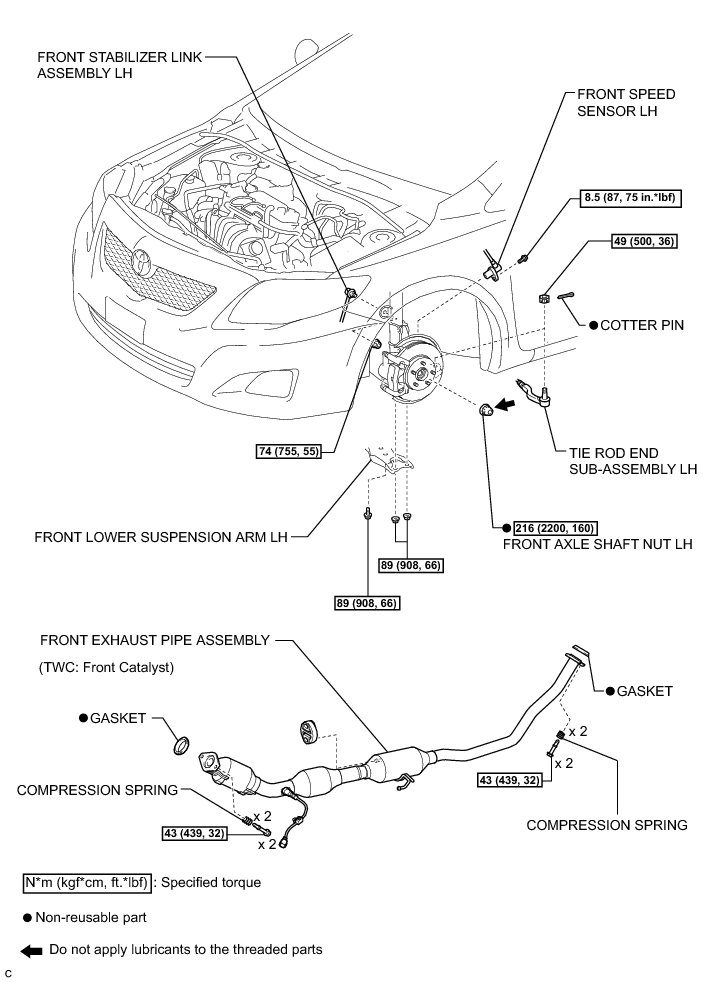

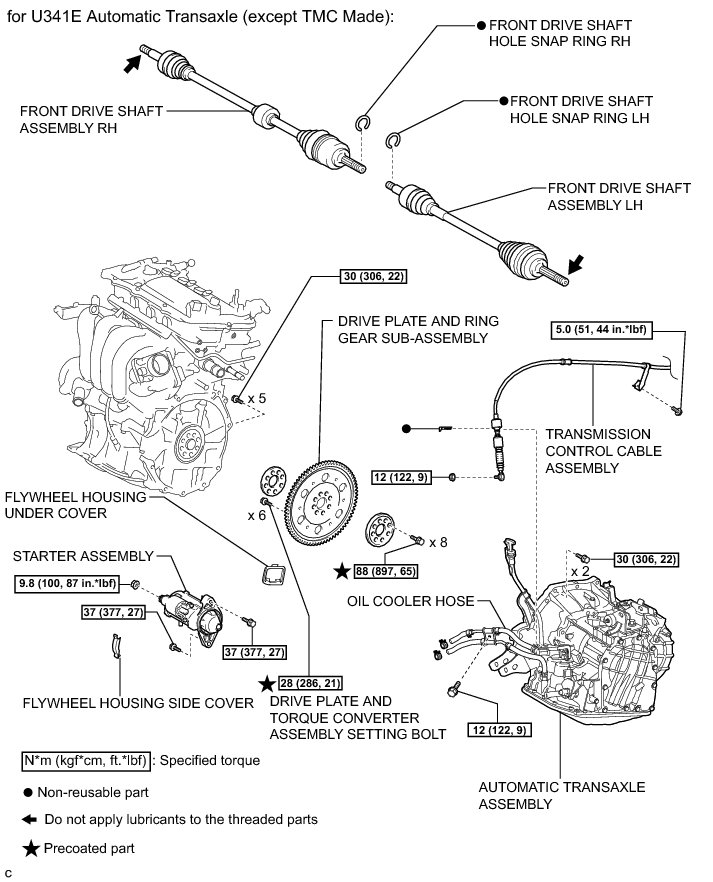

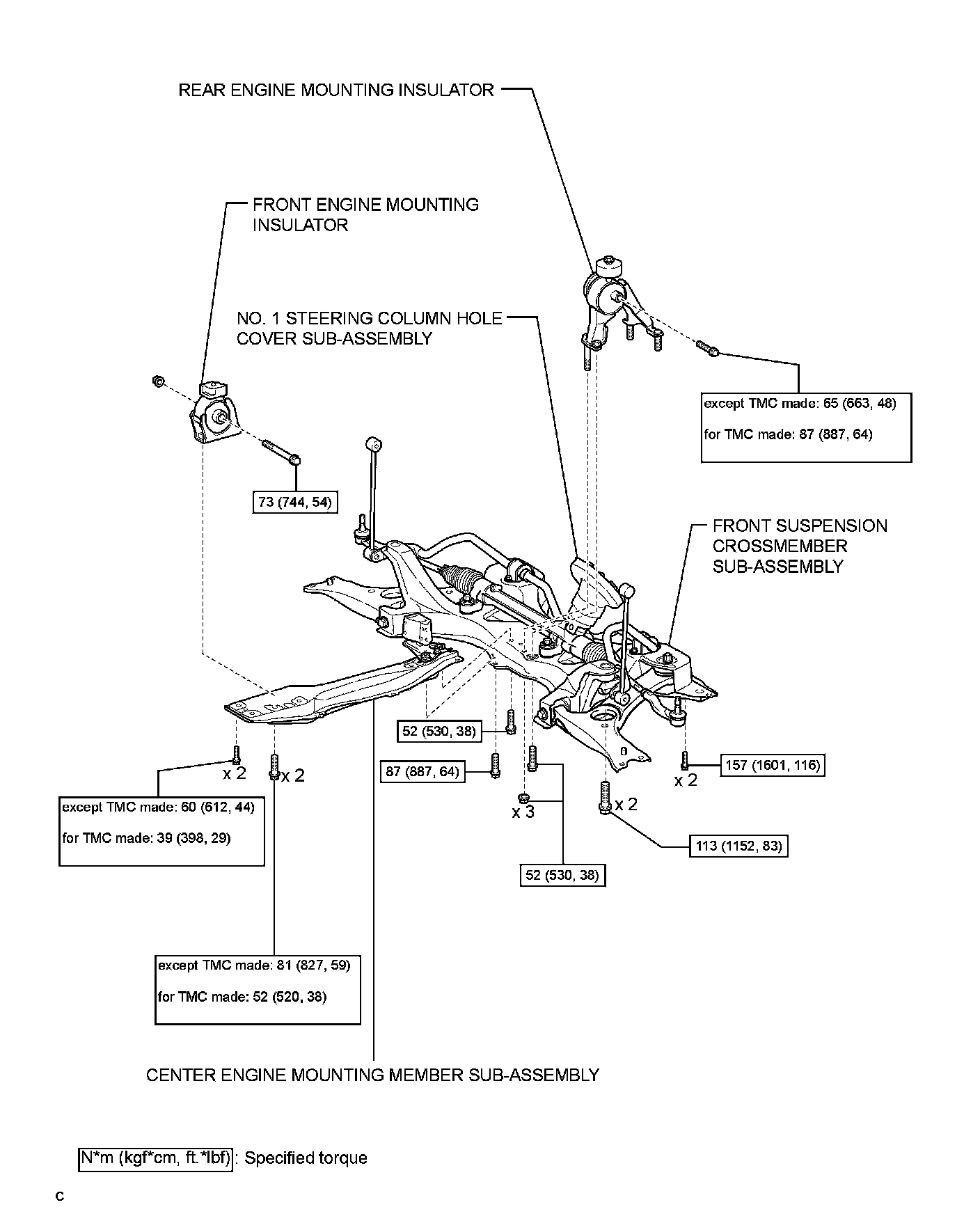

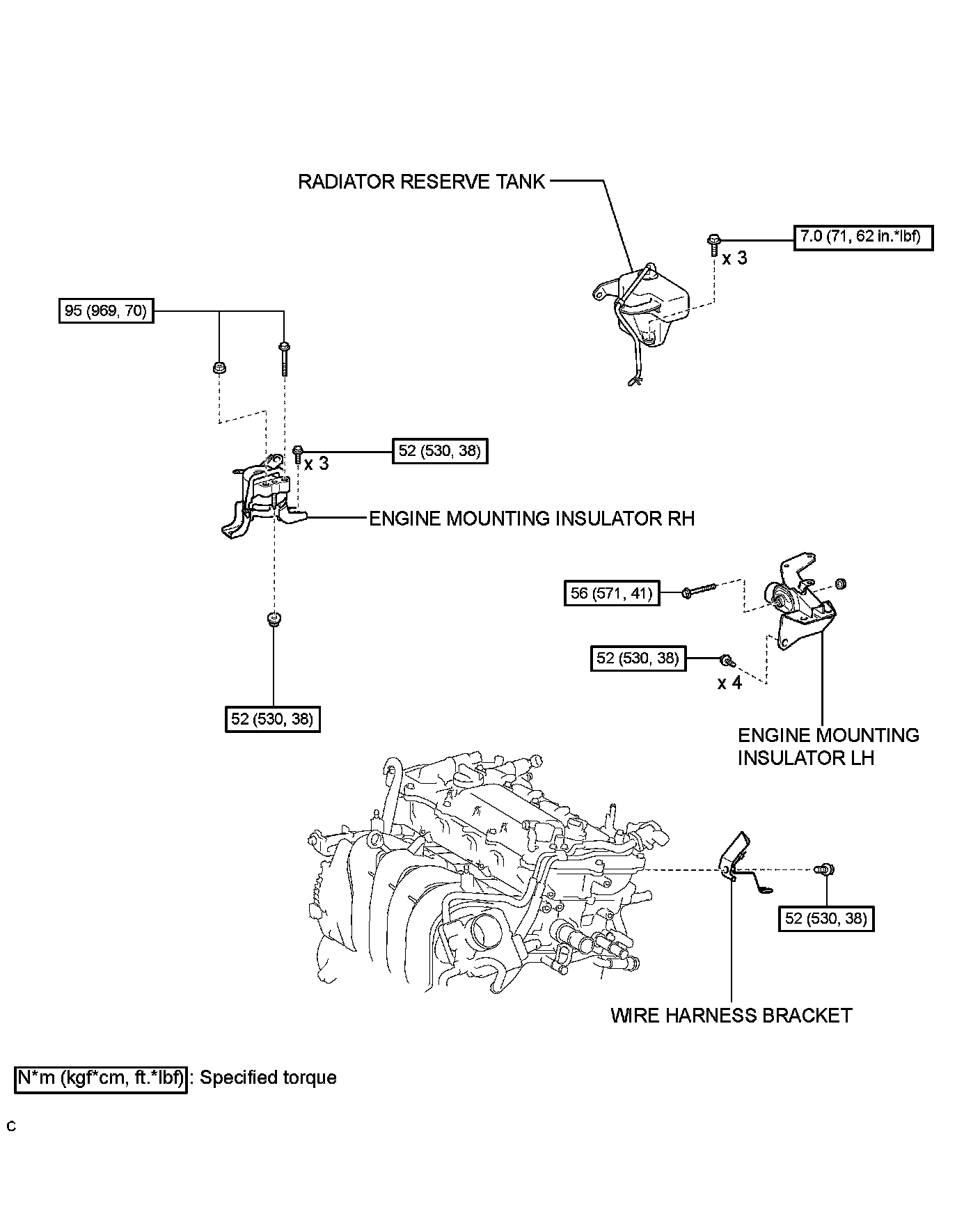

Components
Components
2ZR-FE ENGINE MECHANICAL: ENGINE ASSEMBLY: COMPONENTS; 2013 MY Corolla [07/2012 -]
