34 - 37 - Instrument Panel J/B Inner Circuit

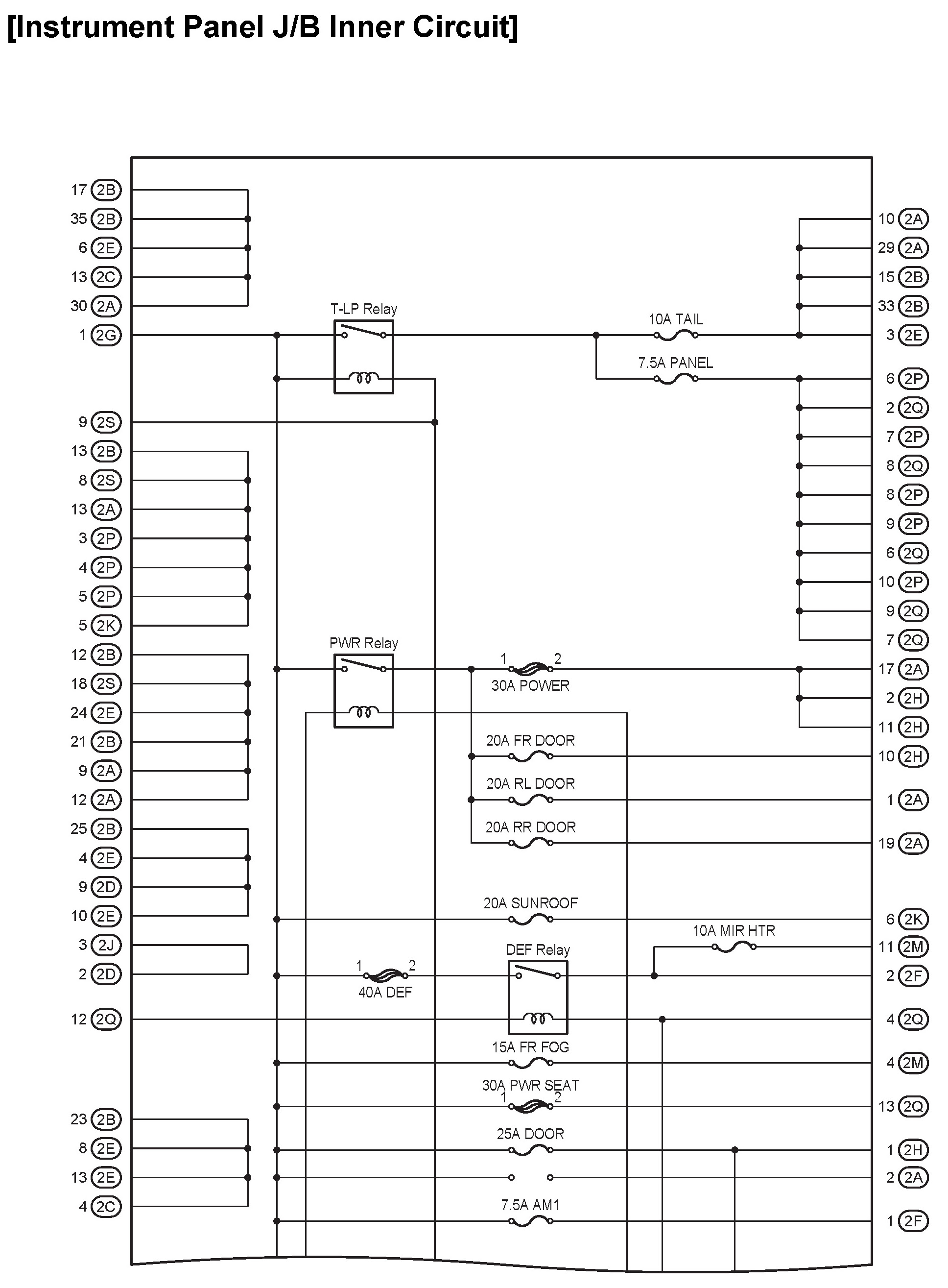

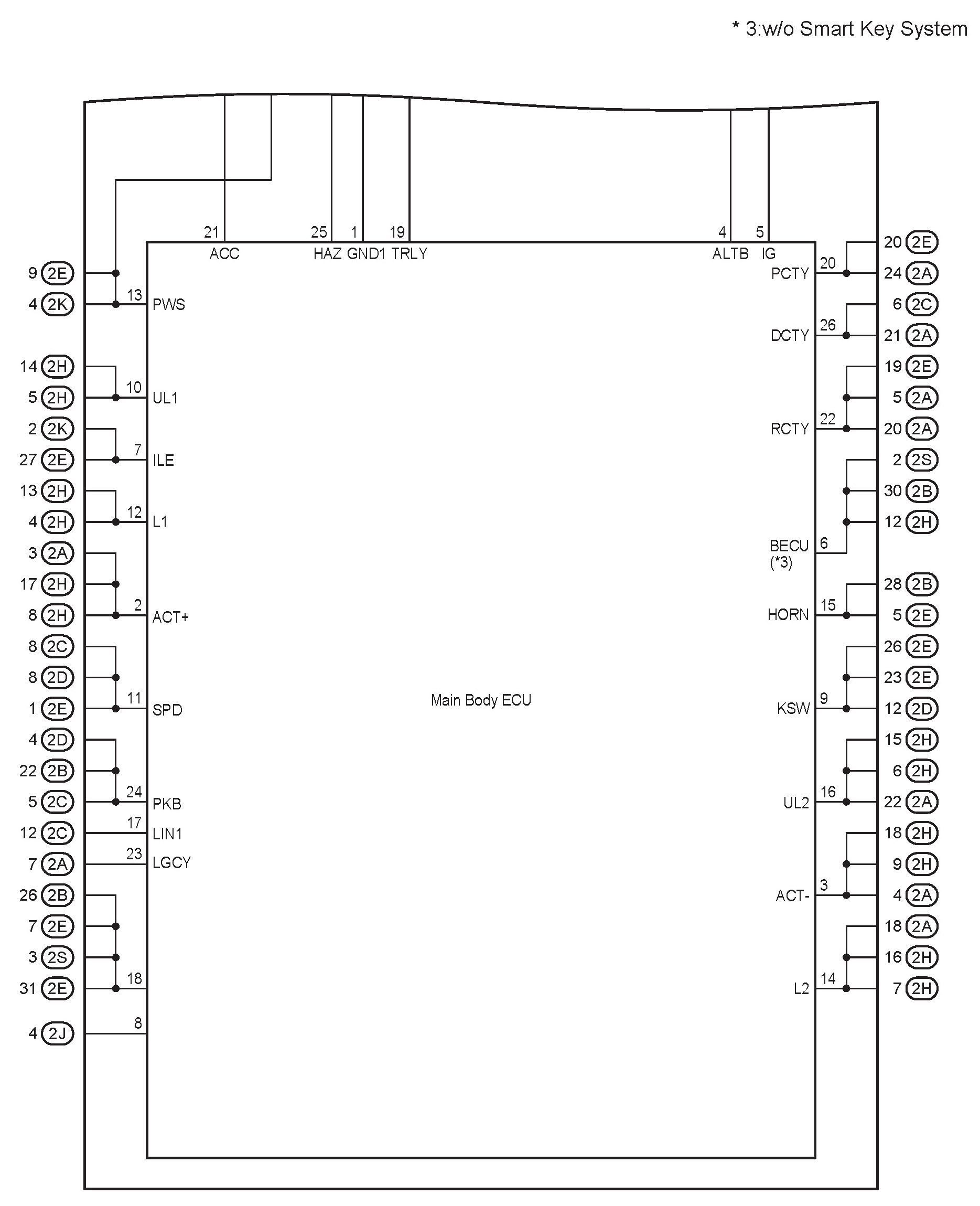

Instrument Panel J/B Inner Circuit:






Instrument Panel J/B Inner Circuit:

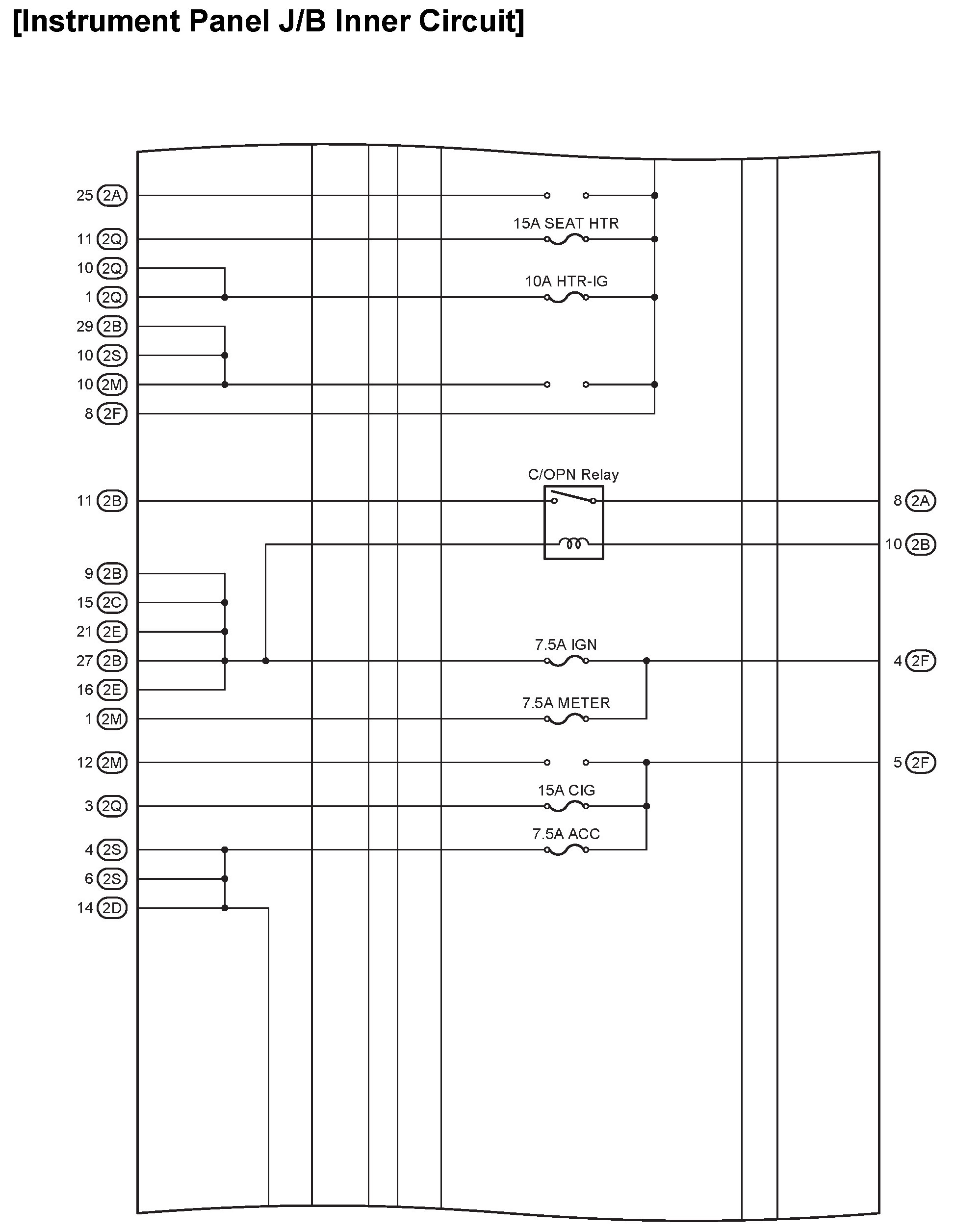

Instrument Panel J/B Inner Circuit:






Instrument Panel J/B Inner Circuit:
