30 - 31 - Instrument Panel J/B - Cowl Side Left
30 - 31 - Instrument Panel J/B - Cowl Side Left

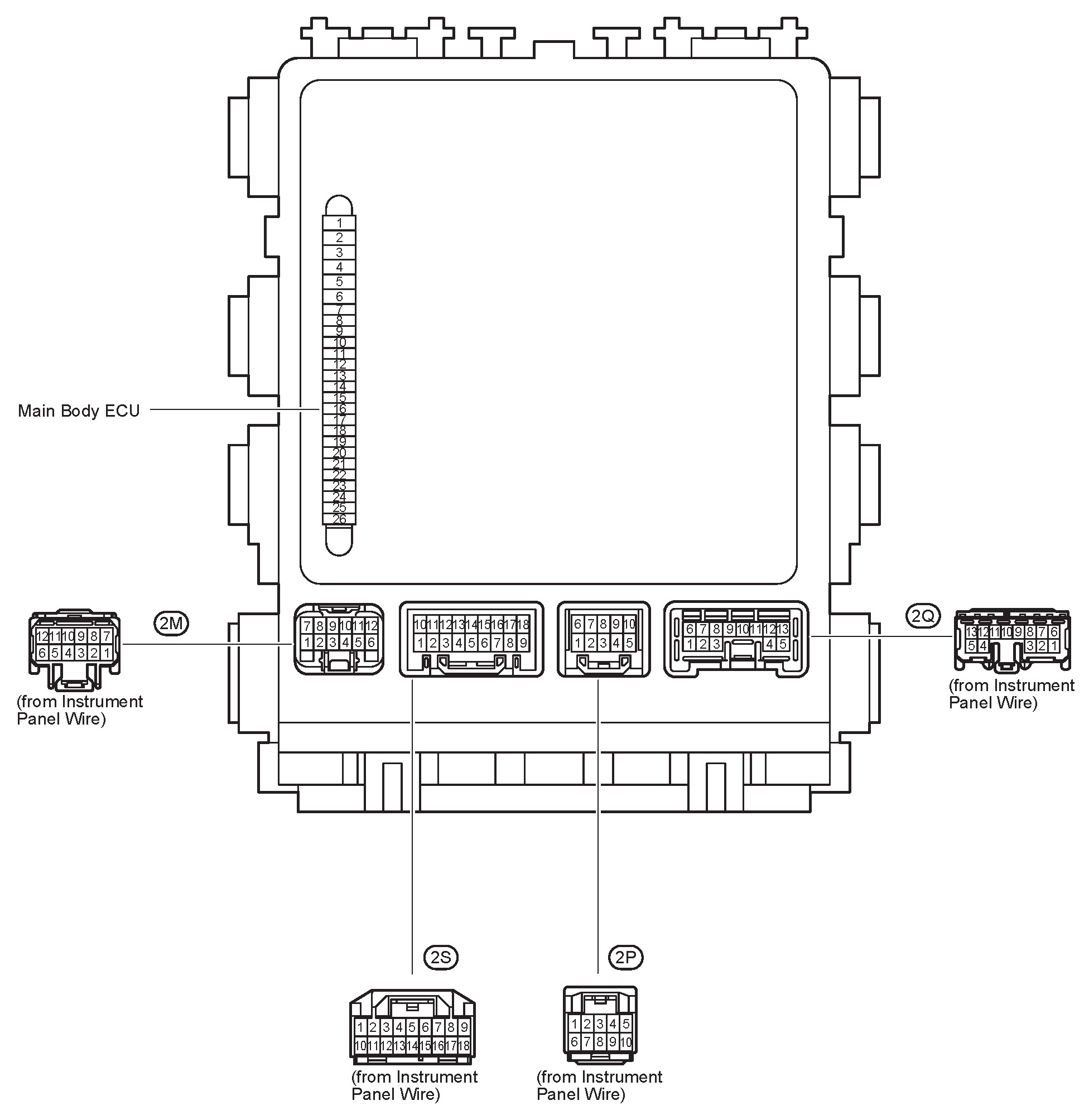

Instrument Panel J/B - Cowl Side Left:

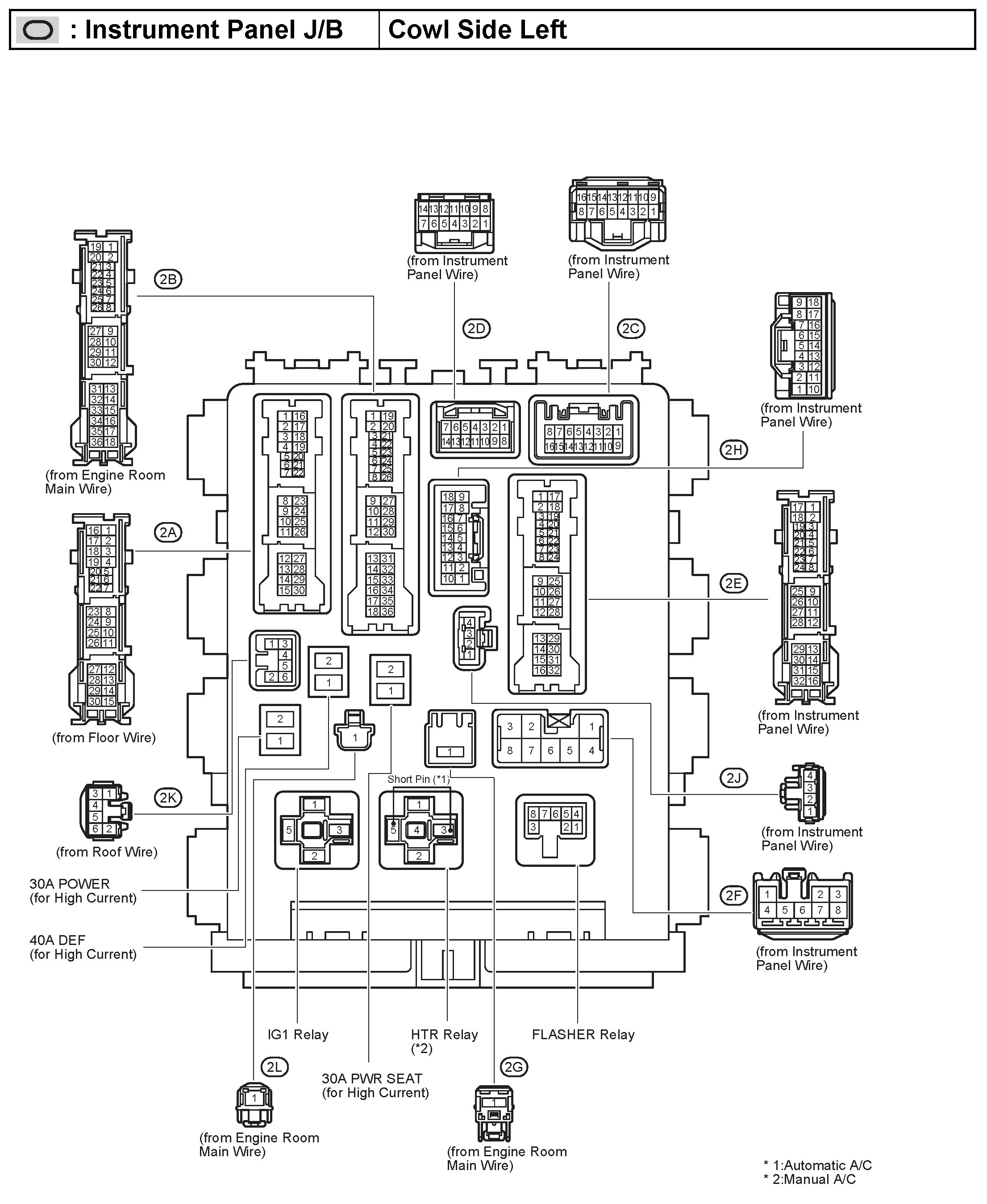

Instrument Panel J/B - Cowl Side Left:
