Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Diagrams >> Components >> 52-59 - Position of Parts In Instrument Panel >> TMC Made

TMC Made

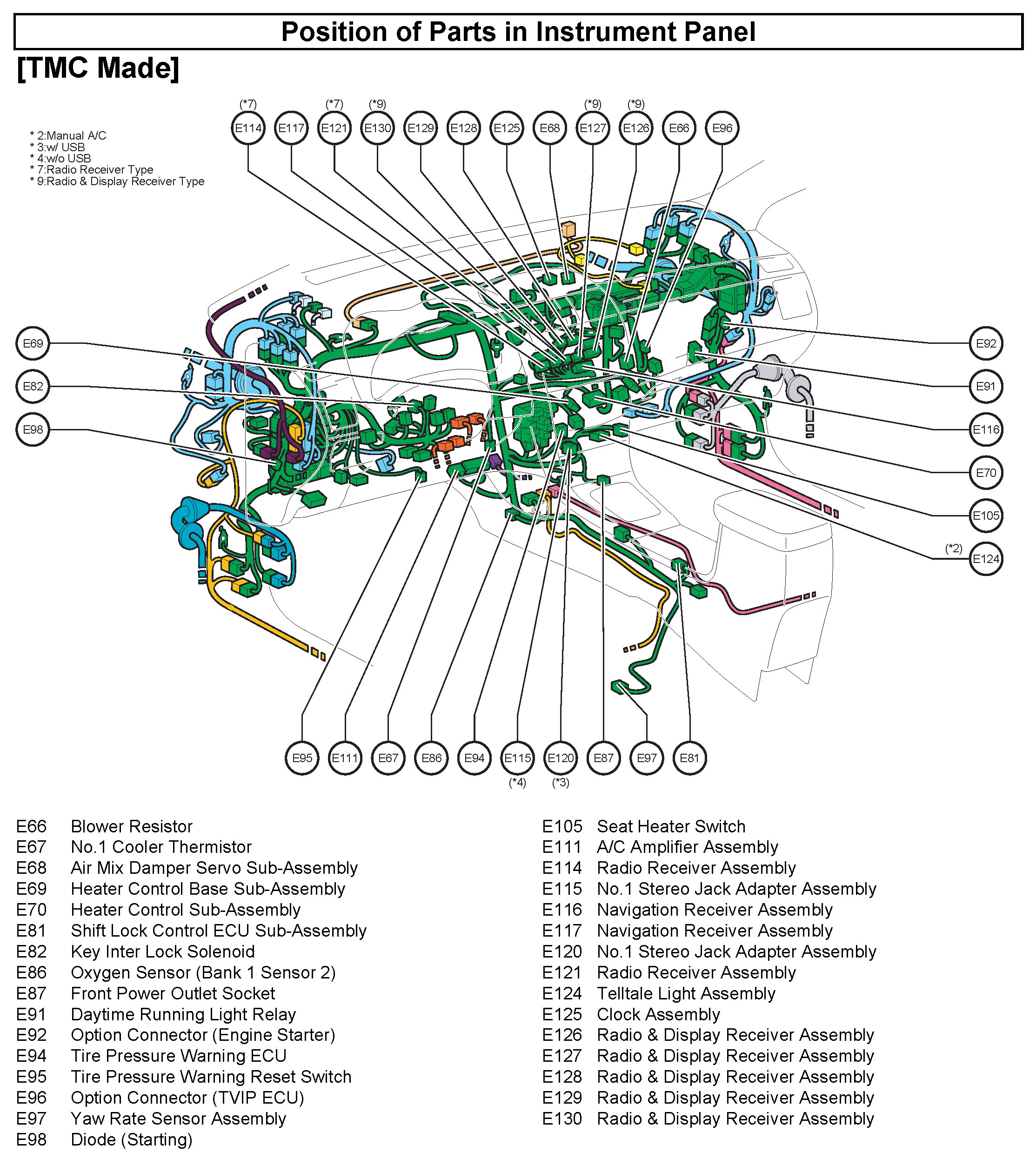

Position of Parts in Instrument Panel:

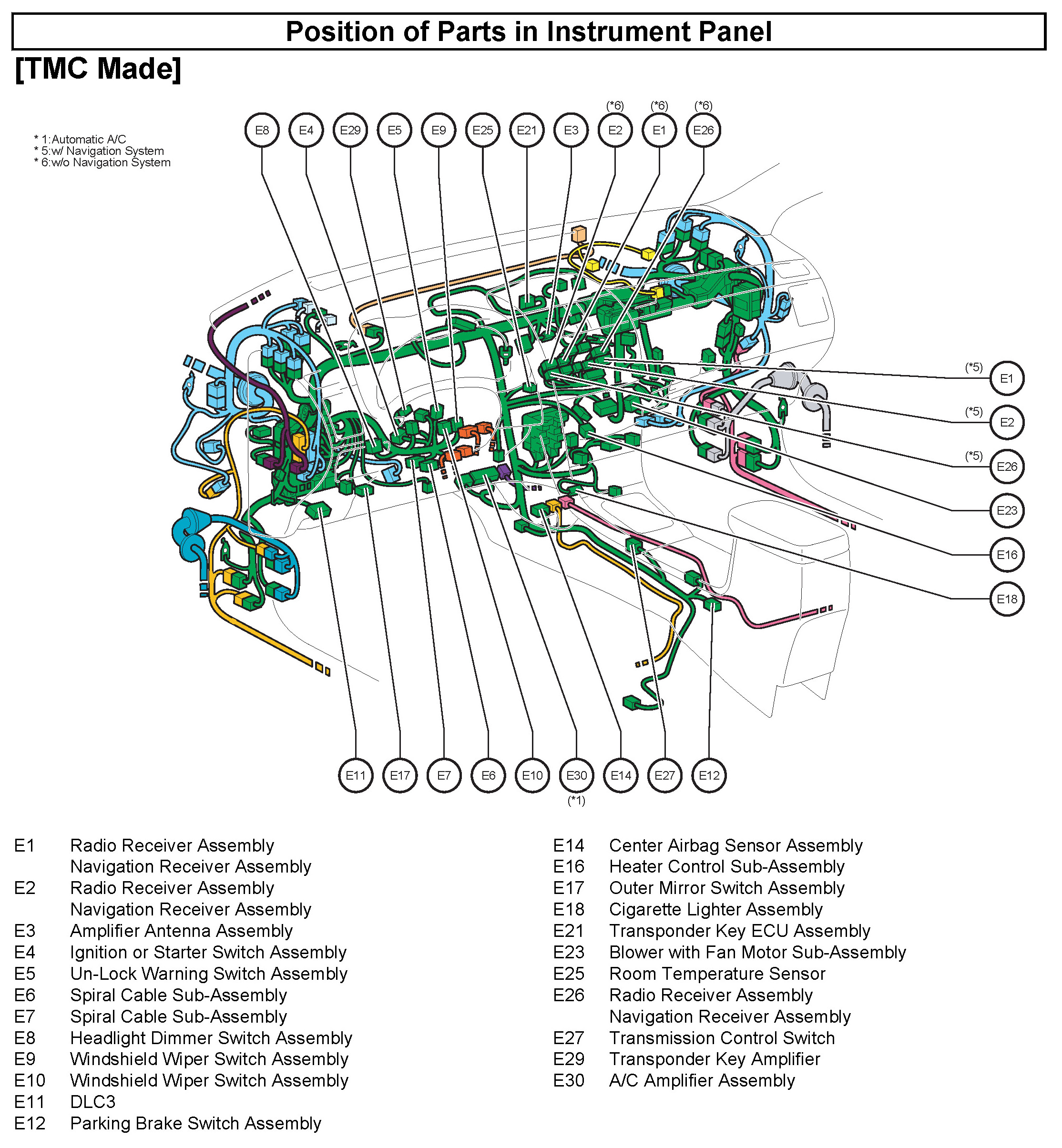

Position of Parts in Instrument Panel:

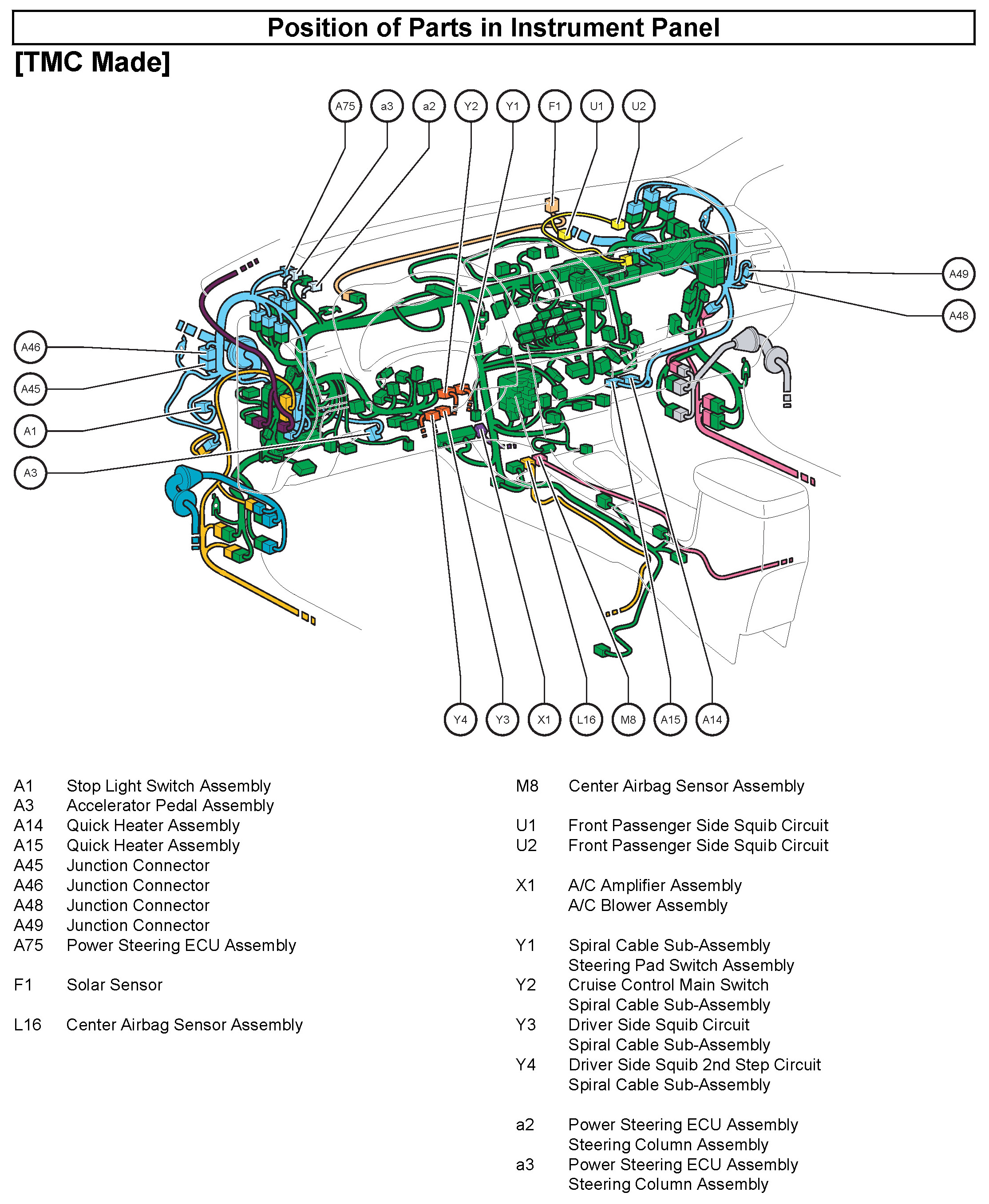

Position of Parts in Instrument Panel:






Position of Parts in Instrument Panel:
