Expect TMC Made

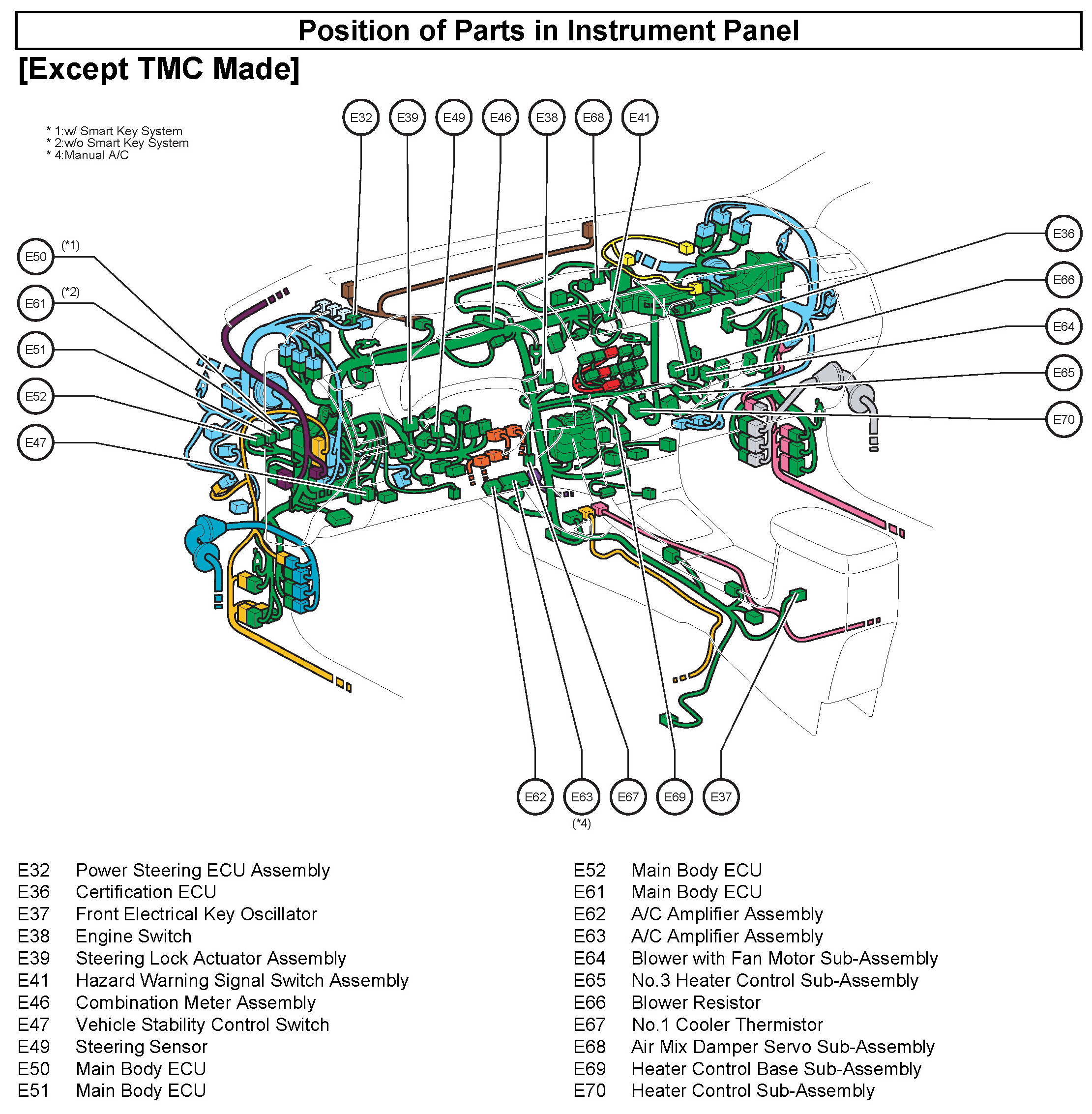

Position of Parts in Instrument Panel:

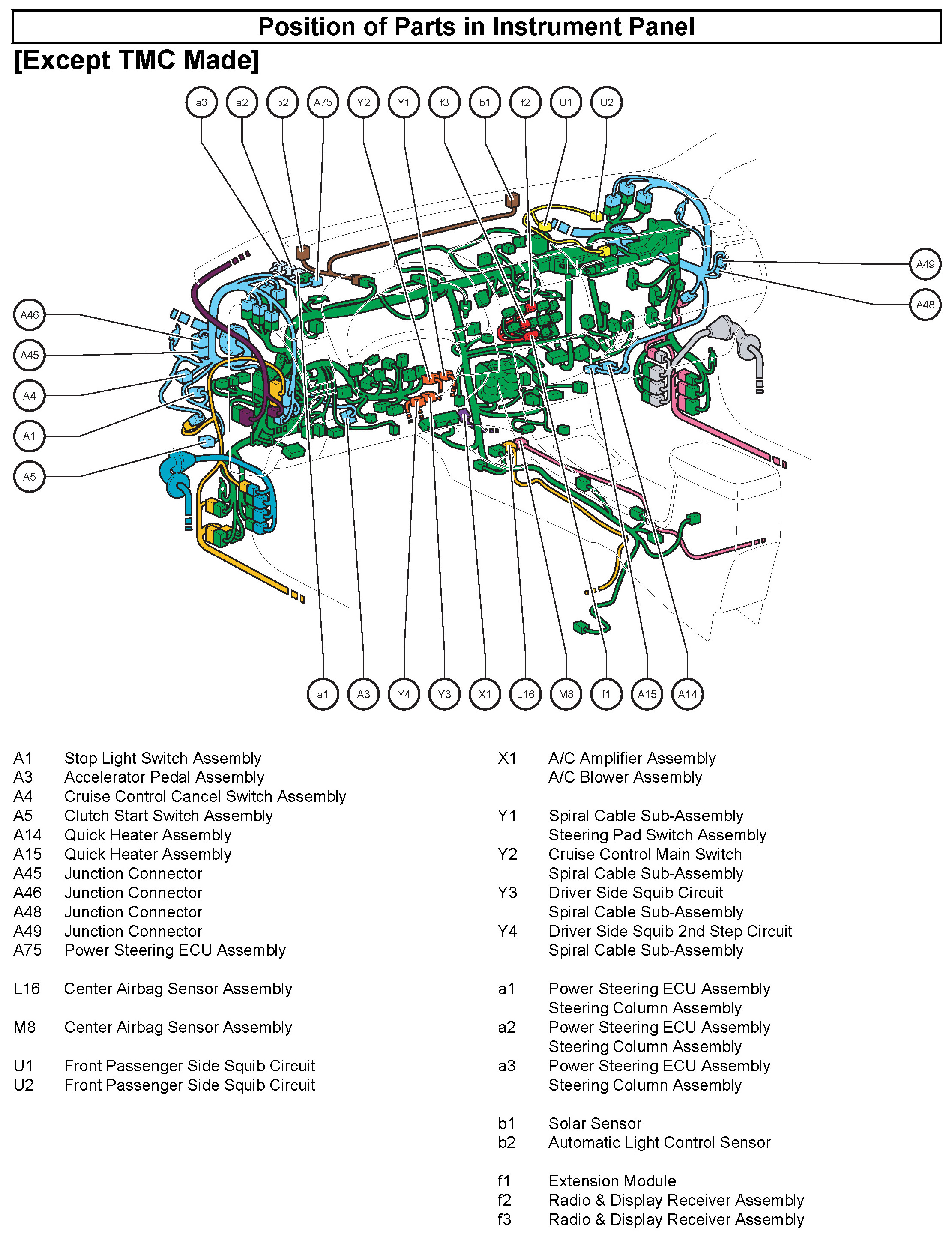

Position of Parts in Instrument Panel:

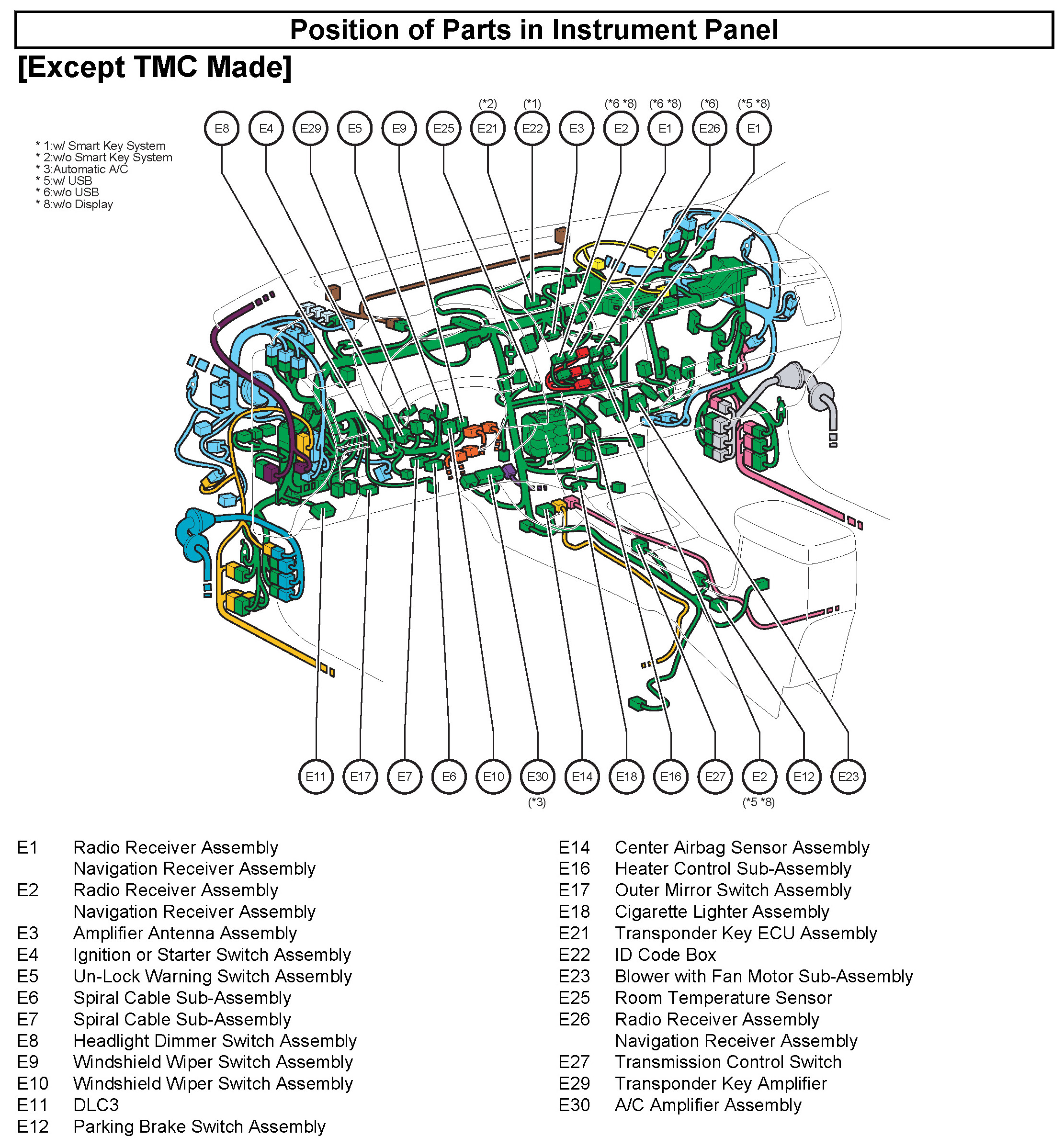

Position of Parts in Instrument Panel:

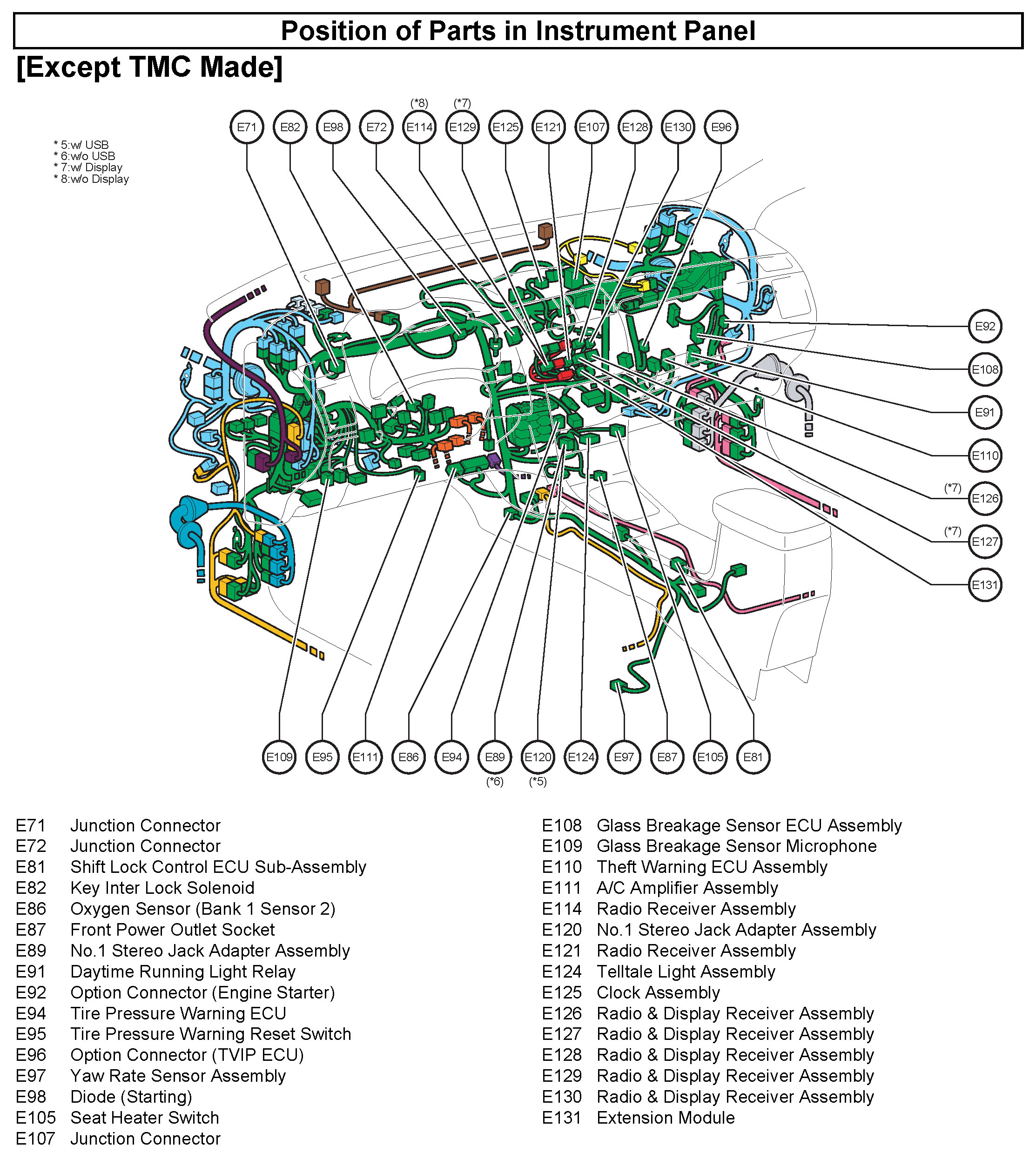

Position of Parts in Instrument Panel:
