Electronic Brake Control Module
>>
Locations
>>
ABS (Antilock Brake System)
ABS (Antilock Brake System)

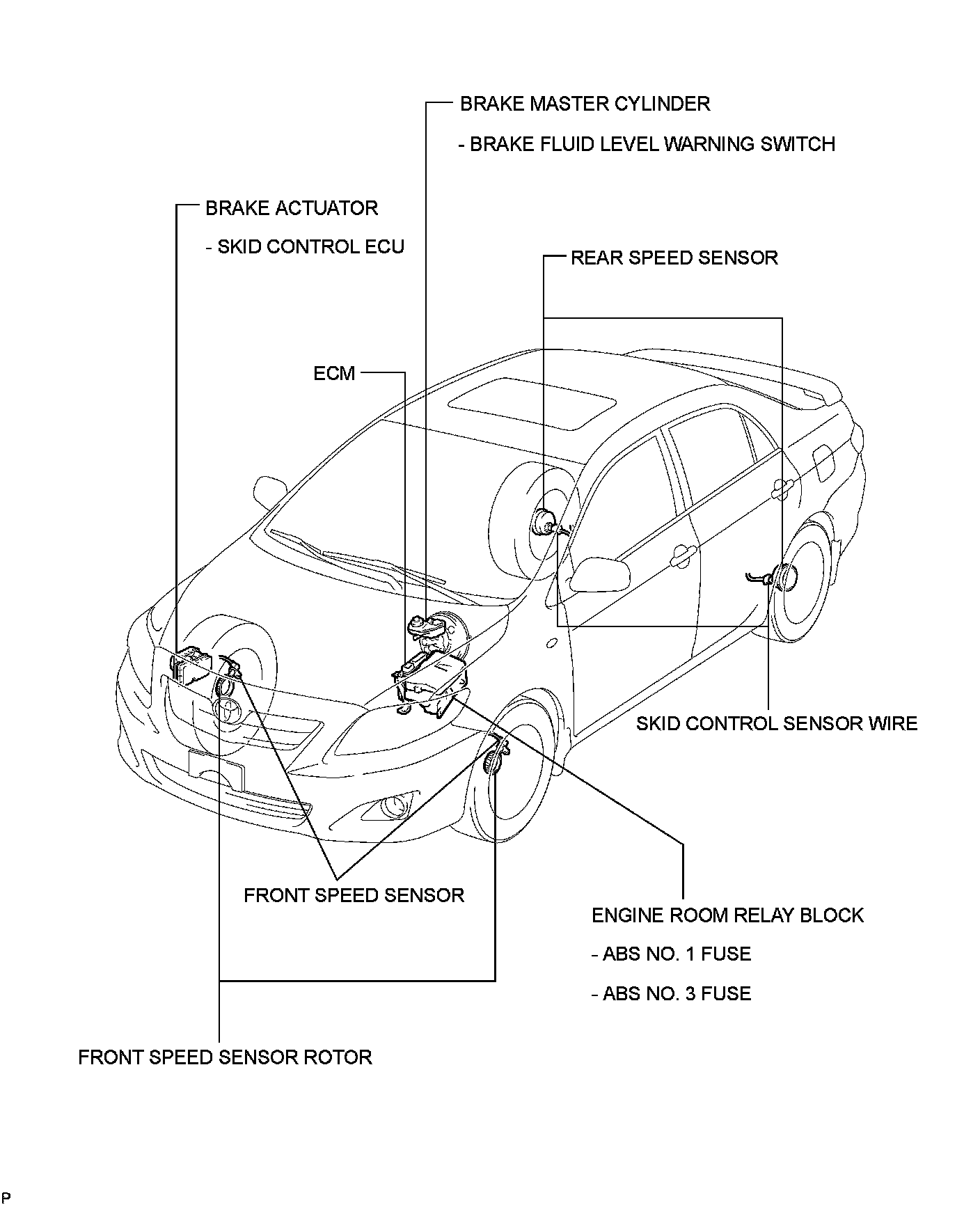

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: ANTI-LOCK BRAKE SYSTEM: PARTS LOCATION; 2013 MY Corolla [07/2012 -]
