Removal

PARKING BRAKE: PARKING BRAKE CABLE (for Rear Drum Brake): REMOVAL; 2013 MY Corolla [07/2012 -]

CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.

HINT
* Use the same procedure for the No. 2 parking brake cable assembly and No. 3 parking brake cable assembly.
* The procedure listed below is for the No. 3 parking brake cable assembly.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Front Seat Side Airbag)

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

2. REMOVE REAR WHEELS

3. REMOVE FRONT SEAT ASSEMBLY LH (for Manual Seat)

HINT
Refer to the instructions for Removal of the front seat assembly Removal.

4. REMOVE FRONT SEAT ASSEMBLY LH (for Power Seat)

HINT
Refer to the instructions for Removal of the front seat assembly Removal.

5. REMOVE FRONT SEAT ASSEMBLY RH

HINT
Perform the same procedure for the LH side.

6. REMOVE CONSOLE BOX ASSEMBLY

HINT
Refer to the instructions for Removal of the front console box Removal.

7. REMOVE NO. 2 BELT ANCHOR REINFORCEMENT SUB-ASSEMBLY Removal

8. REMOVE NO. 3 BELT ANCHOR REINFORCEMENT SUB-ASSEMBLY Removal

9. SEPARATE PARKING BRAKE EQUALIZER Removal

10. REMOVE PARKING BRAKE LEVER ASSEMBLY Removal

11. REMOVE PARKING BRAKE EQUALIZER Removal

12. REMOVE PARKING BRAKE CABLE END STOPPER Removal

13. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY Removal

14. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal

15. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

(a) Remove the 3 nuts and front No. 1 floor heat insulator.

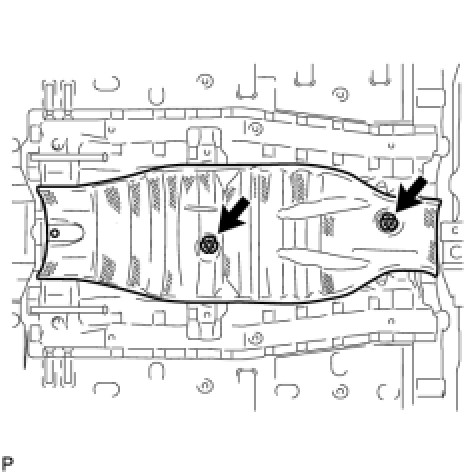

16. REMOVE FRONT NO. 2 FLOOR HEAT INSULATOR

(a) Remove the 2 nuts and front No. 2 floor heat insulator.





17. REMOVE REAR BRAKE DRUM Removal

18. REMOVE REAR BRAKE SHOE (for Front Side) Removal

19. REMOVE REAR BRAKE STRUT SET Removal

20. REMOVE REAR BRAKE SHOE (for Rear Side) Removal

21. REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY

(a) Disengage the clamp from the No. 3 parking brake cable assembly.





(b) Remove the bolt.

(c) Remove the bolt and separate the No. 3 parking brake cable assembly from the backing plate.

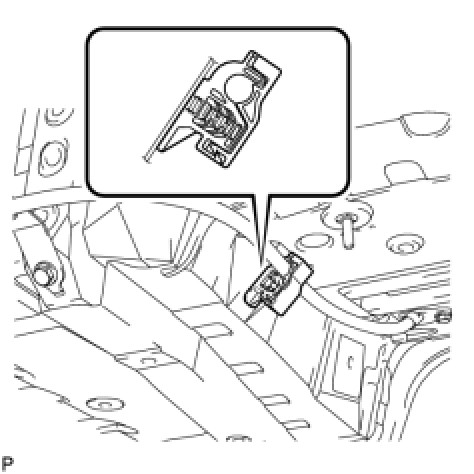

(d) Separate the No. 3 parking brake cable clamp.

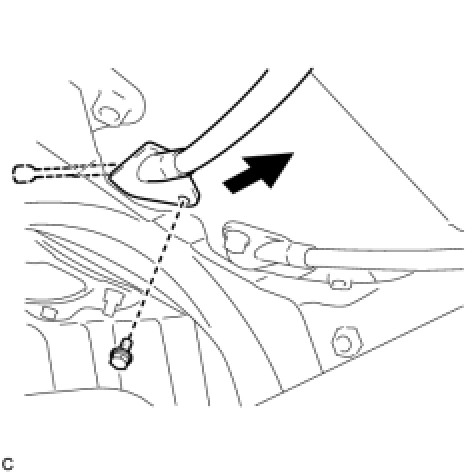

(e) Remove the bolt and pull out the No. 3 parking brake cable assembly to the outside of the body.





(f) Remove the 2 bolts and the No. 3 parking brake cable assembly.





22. REMOVE NO. 3 PARKING BRAKE CABLE CLAMP

(a) Disengage the 2 claws to remove the No. 3 parking brake cable clamp from the No. 3 parking brake cable assembly.
