Disassembly

BRAKE (REAR): REAR BRAKE (for Drum Type): DISASSEMBLY; 2013 MY Corolla [07/2012 -]

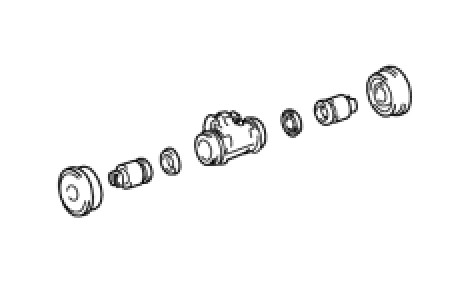

1. REMOVE REAR WHEEL CYLINDER CUP KIT

(a) Remove the 2 wheel cylinder boots from the rear wheel brake cylinder assembly.





(b) Remove the 2 pistons.

(c) Remove the wheel cylinder cup from each piston.

2. REMOVE REAR WHEEL BRAKE CYLINDER COMPRESSION SPRING

(a) Remove the rear wheel brake cylinder compression spring from the rear brake wheel cylinder assembly.
