BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: BRAKE ACTUATOR (w/ VSC): REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE FRONT WHEEL RH

2. REMOVE GENERATOR ASSEMBLY

* for 2ZR-FE: Removal

* for 2AZ-FE: Removal

3. REMOVE FRONT BUMPER ASSEMBLY

Removal

4. DRAIN BRAKE FLUID

NOTICE:
If brake fluid leaks onto any painted surface, immediately clean it off completely.

5. REMOVE RADIATOR RESERVE TANK SUB-ASSEMBLY

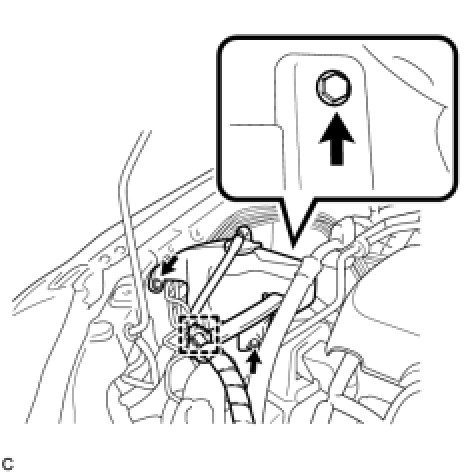

(a) Remove the 3 bolts and radiator reserve tank sub-assembly.





6. REMOVE WINDSHIELD WASHER JAR ASSEMBLY

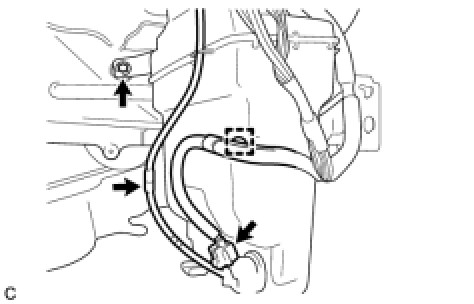

(a) Remove the bolt and disconnect the motor connectors.





(b) Separate the washer hoses from the windshield washer jar assembly.

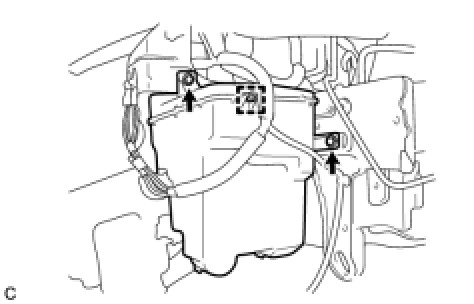

(c) Remove the 2 bolts, clamp and windshield washer jar assembly from the body.





7. REMOVE BRAKE ACTUATOR WITH BRACKET

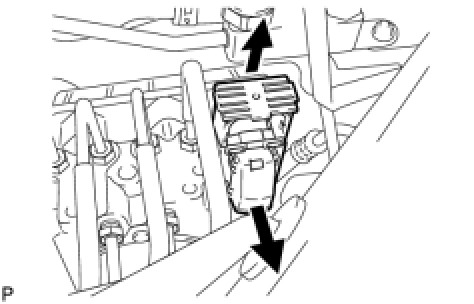

(a) Release the lock lever and disconnect the brake actuator connector.





NOTICE:
Be careful not to allow brake fluid to enter the removed connector.

(b) Remove the bolt.





(c) Using a union nut wrench (10 mm), disconnect the 6 brake lines from the actuator assembly.





(d) Use tags or make a memo to identify the places to reconnect.





HINT
* *1: To front wheel cylinder RH
* *2: To front wheel cylinder LH
* *3: To rear wheel cylinder RH
* *4: To rear wheel cylinder LH
* *5: From 1st master cylinder chamber
* *6: From 2nd master cylinder chamber

(e) Remove the 2 bolts, nut and the brake actuator with bracket from the body.





NOTICE:
* Do not damage the brake lines or wire harness.
* Do not carry the brake actuator assembly by the connector.

8. REMOVE BRAKE ACTUATOR

(a) Remove the 3 bolts and brake actuator from the brake actuator bracket assembly.
