System Diagram

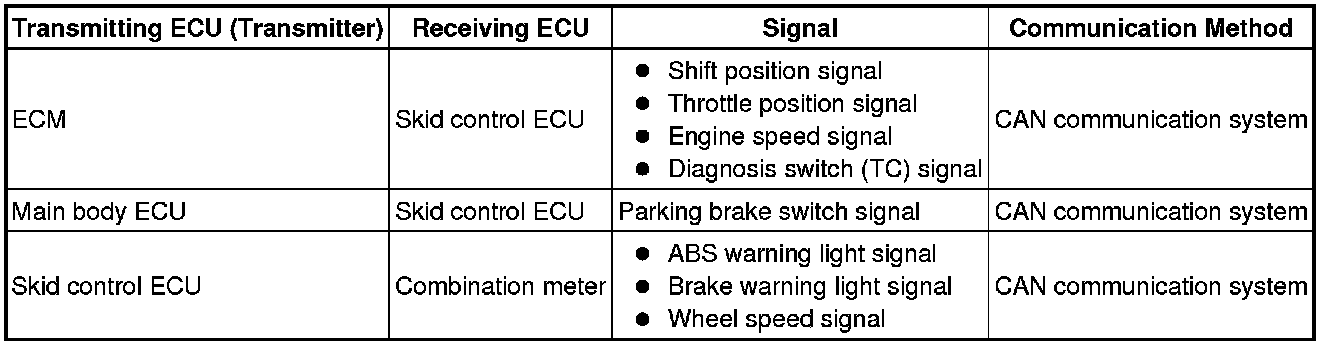

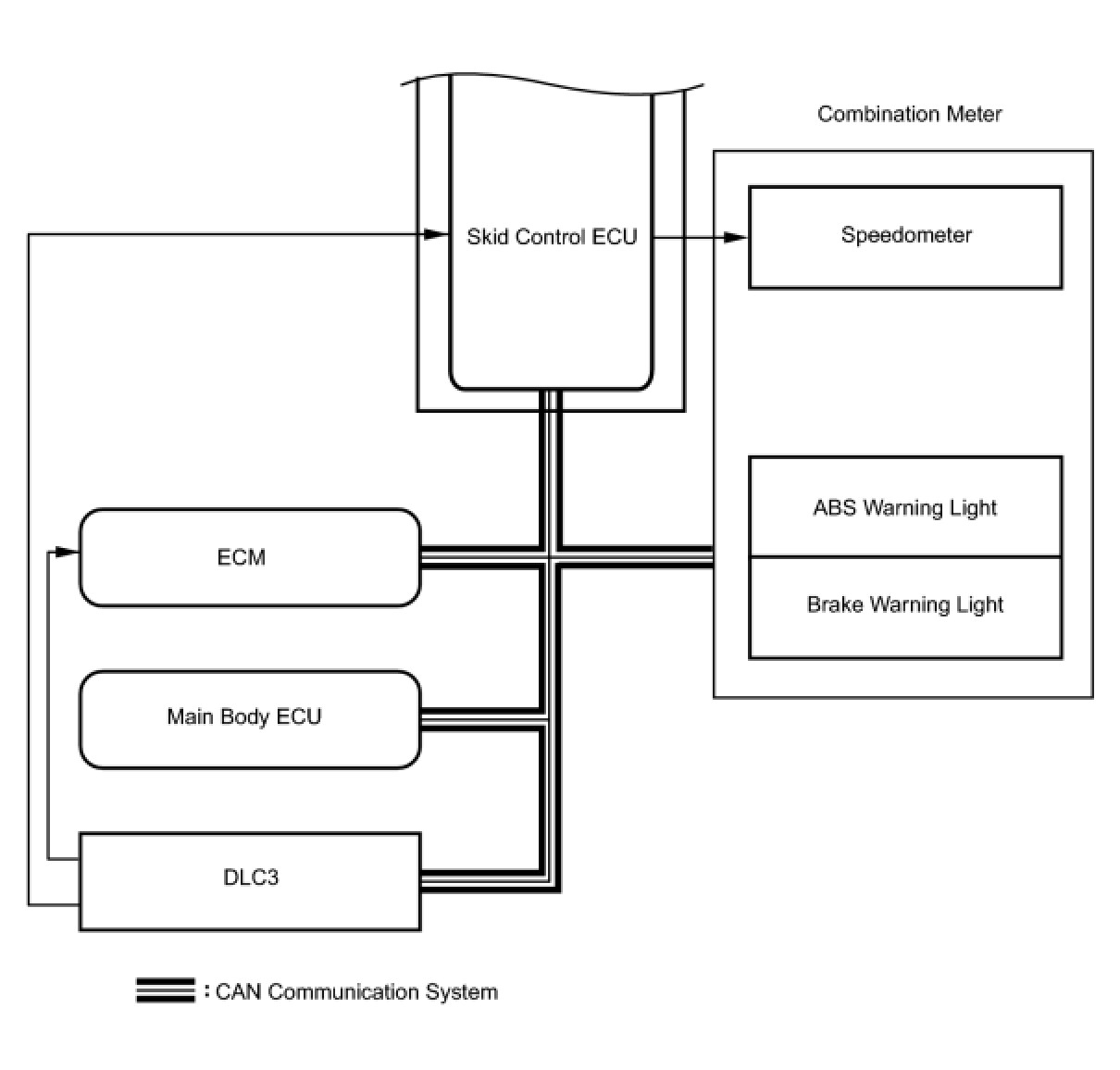

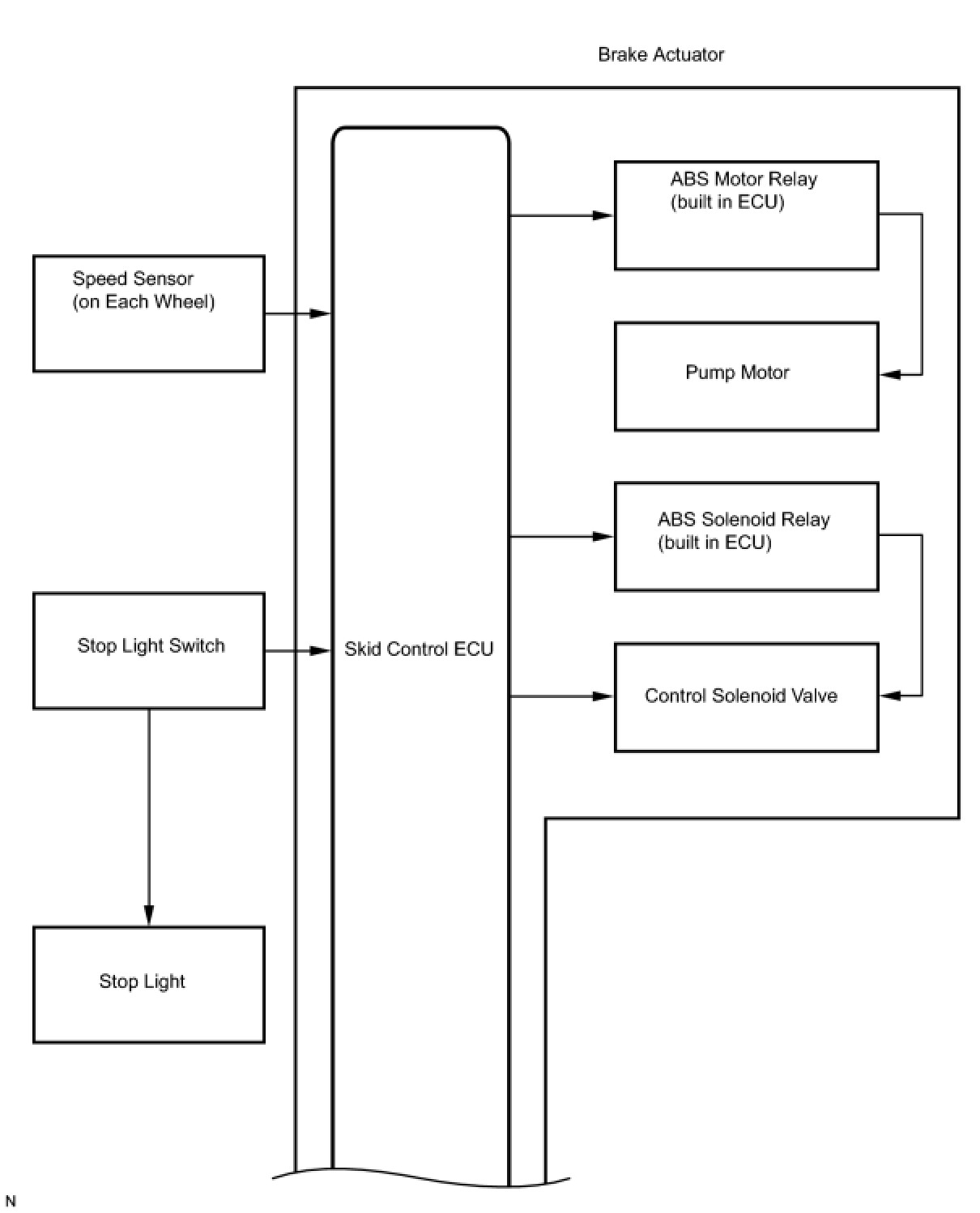

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: ANTI-LOCK BRAKE SYSTEM: SYSTEM DIAGRAM; 2013 MY Corolla [07/2012 -]
