Removal

EXTERIOR PANELS / TRIM: SIDE MUDGUARD: REMOVAL; 2013 MY Corolla [07/2012 -]

HINT
* Use the same procedure for the RH side and LH side.
* The procedure listed below is for the LH side.

1. REMOVE SIDE MUDGUARD

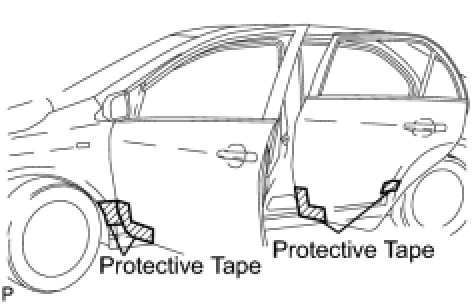

(a) Put protective tape around the side mudguard.





(b) Remove the 2 clips.





(c) Remove the 3 screws.

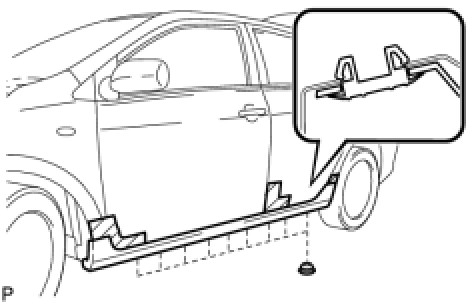

(d) Remove the 9 retainers.

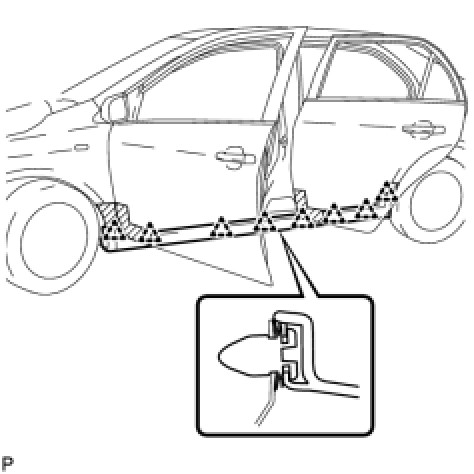

(e) Disengage the 8 clips and remove the side mudguard.
