Seats: Specifications





SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS; 2013 MY Corolla [07/2012 -]

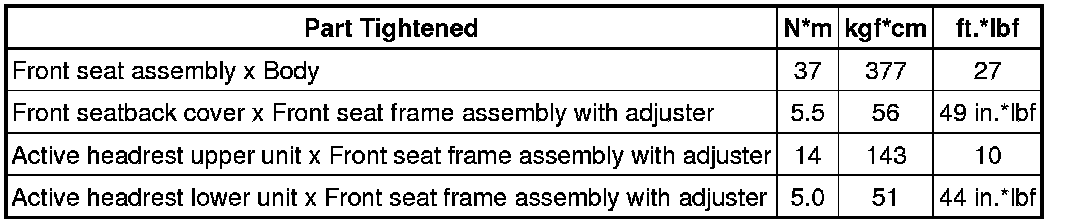

FRONT SEAT ASSEMBLY (for Manual Seat)





FRONT SEAT ASSEMBLY (for Power Seat)

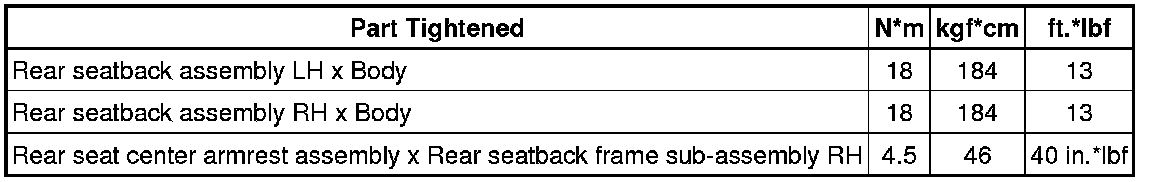

REAR SEAT ASSEMBLY
