Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Removal and Replacement >> Front Seat Assembly (For Power Seat) >> Components

Components

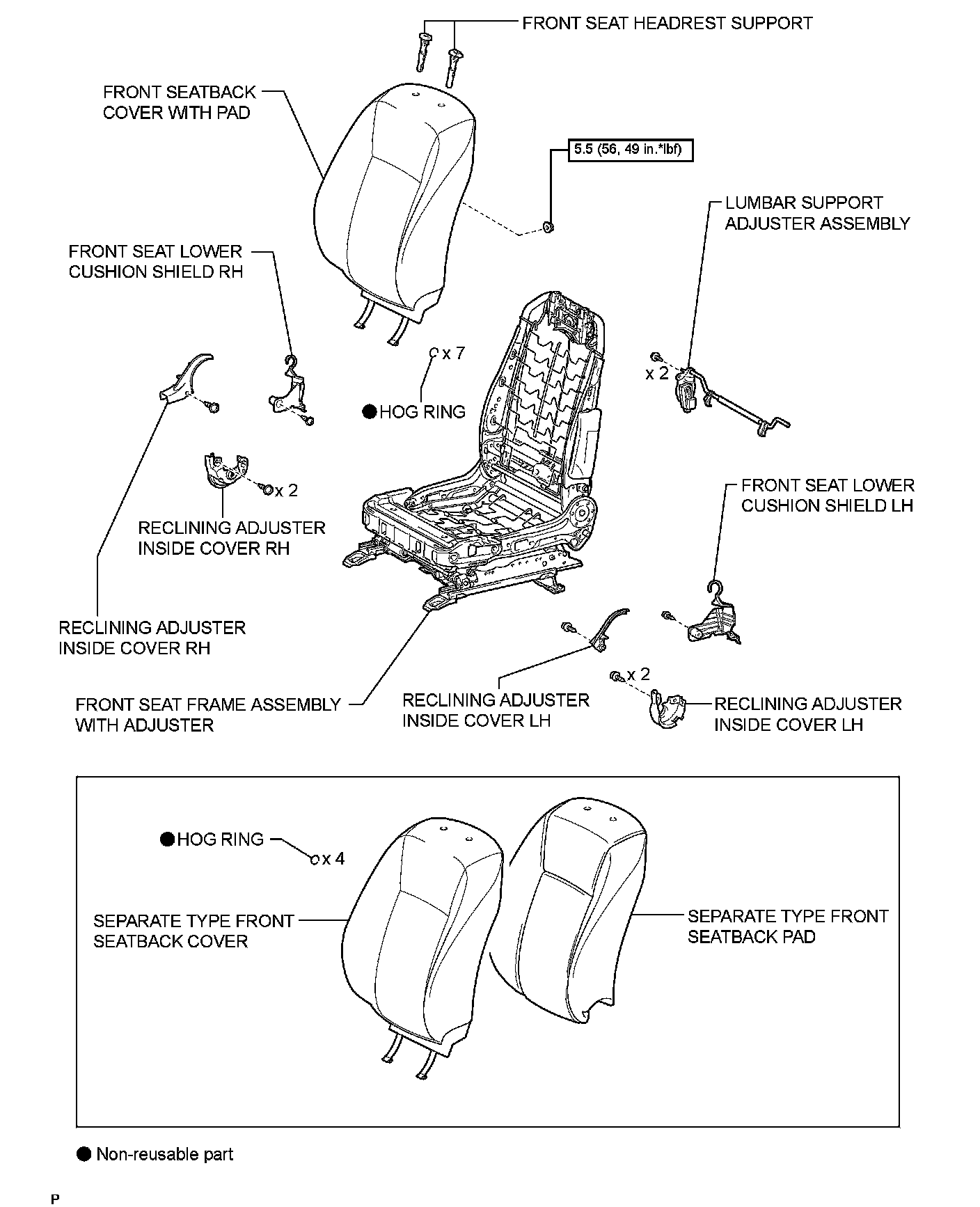

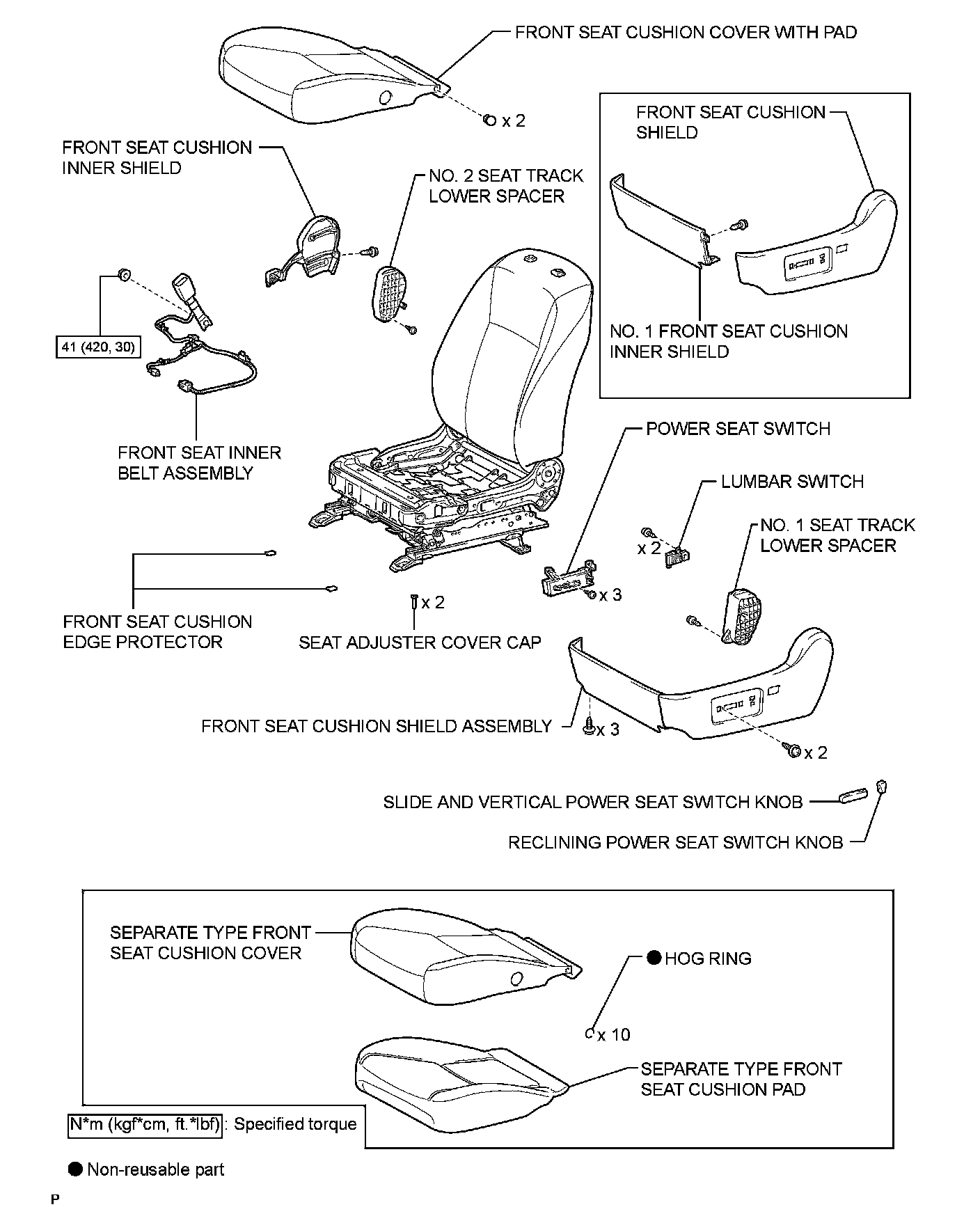

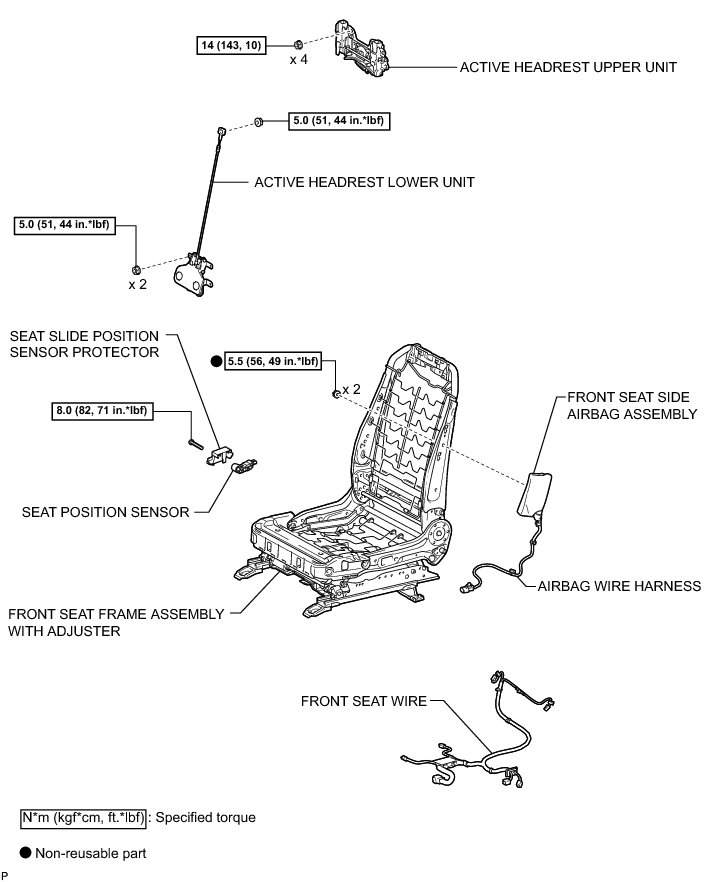

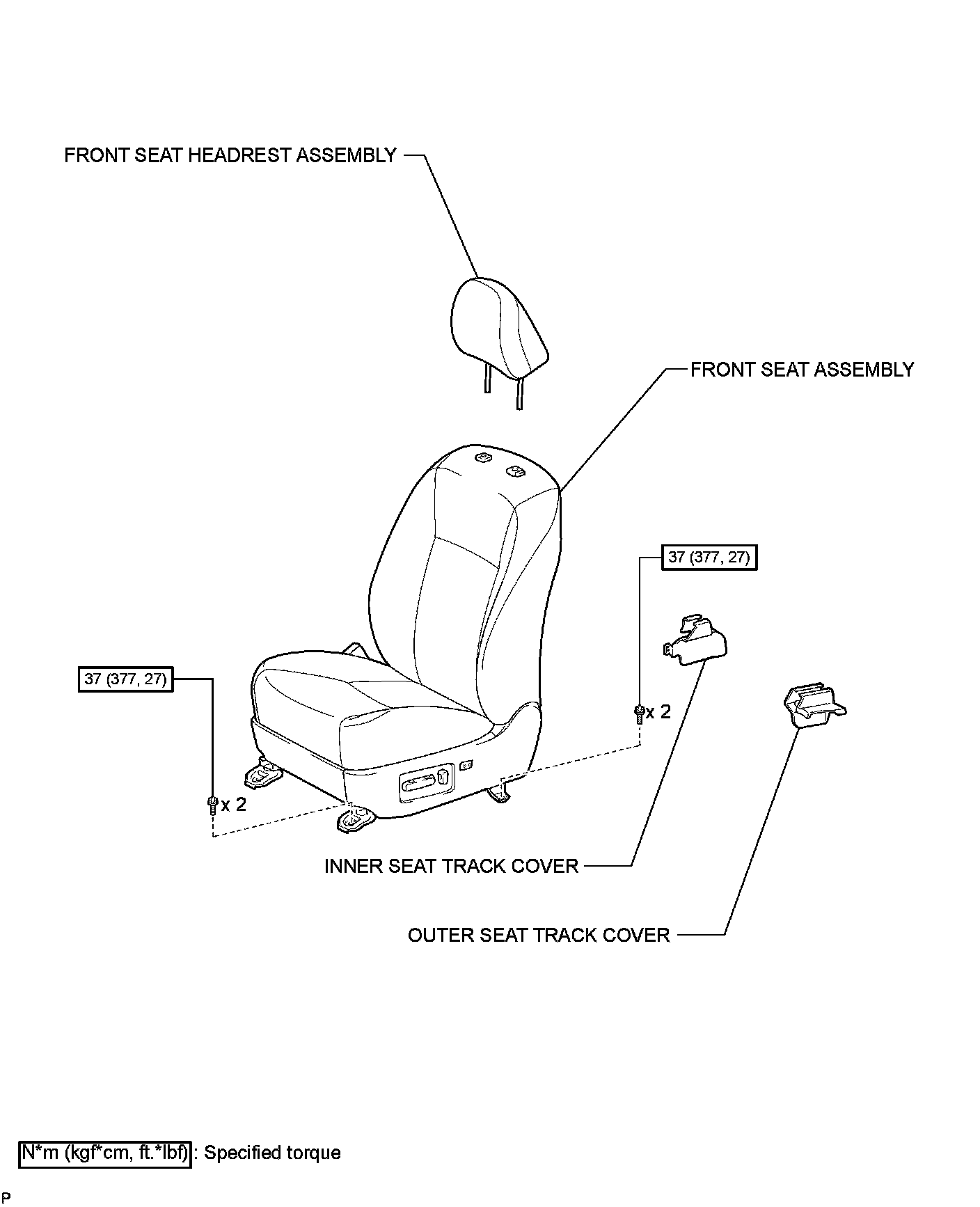

SEAT: FRONT SEAT ASSEMBLY (for Power Seat): COMPONENTS; 2013 MY Corolla [07/2012 -]
