Body and Frame
>>
Locks
>>
Power Locks
>>
Description and Operation
>>
System Diagram
System Diagram

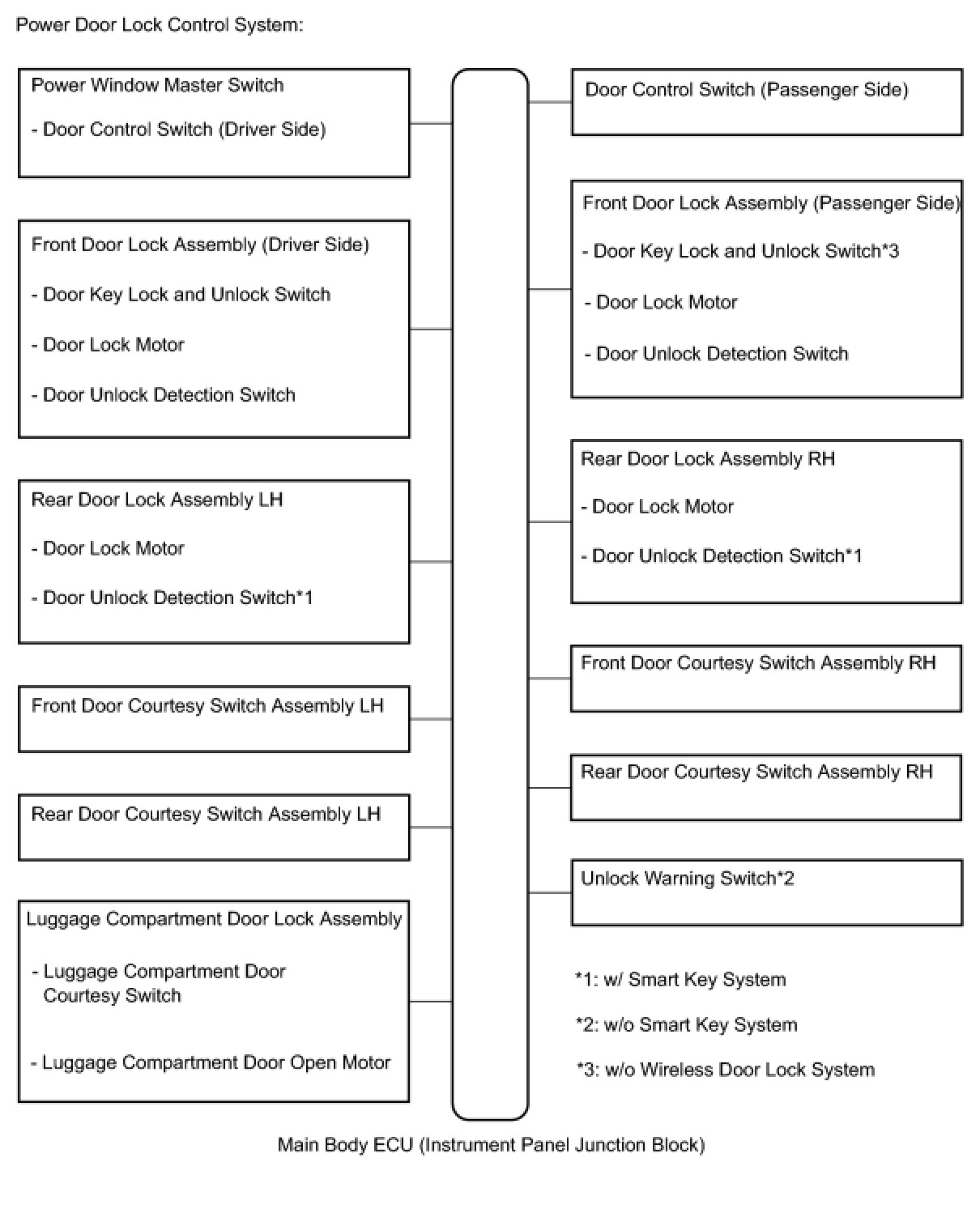

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DIAGRAM; 2013 MY Corolla [07/2012 -]
