FRONT SUSPENSION: FRONT STRUT BAR: DISPOSAL; 2013 MY Corolla [07/2012 -]

1. DISPOSE OF FRONT STRUT BAR

(a) Fully extend the front strut bar.

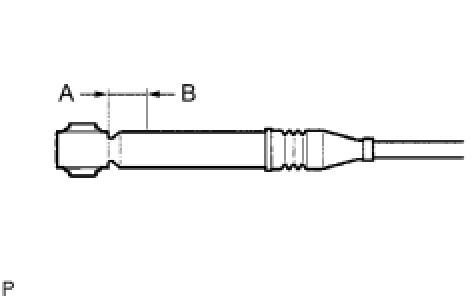

(b) Using a drill, make a hole in the cylinder between A and B as shown in the illustration to discharge the gas inside.





A to B:

10 mm (0.394 in.)

NOTICE:
* Always use proper safety equipment and be careful when drilling because shards of metal fly about.
* The gas is colorless, odorless and non-poisonous.
