Removal

DOOR / HATCH: LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH: REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER

2. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

3. REMOVE LUGGAGE DOOR OPENING SWITCH ASSEMBLY

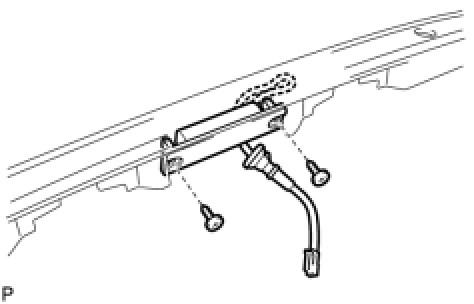

(a) Remove the 2 screws and the luggage door opening switch assembly.
