Audio and Visual System (W/ Multi-Display With DVD Player)

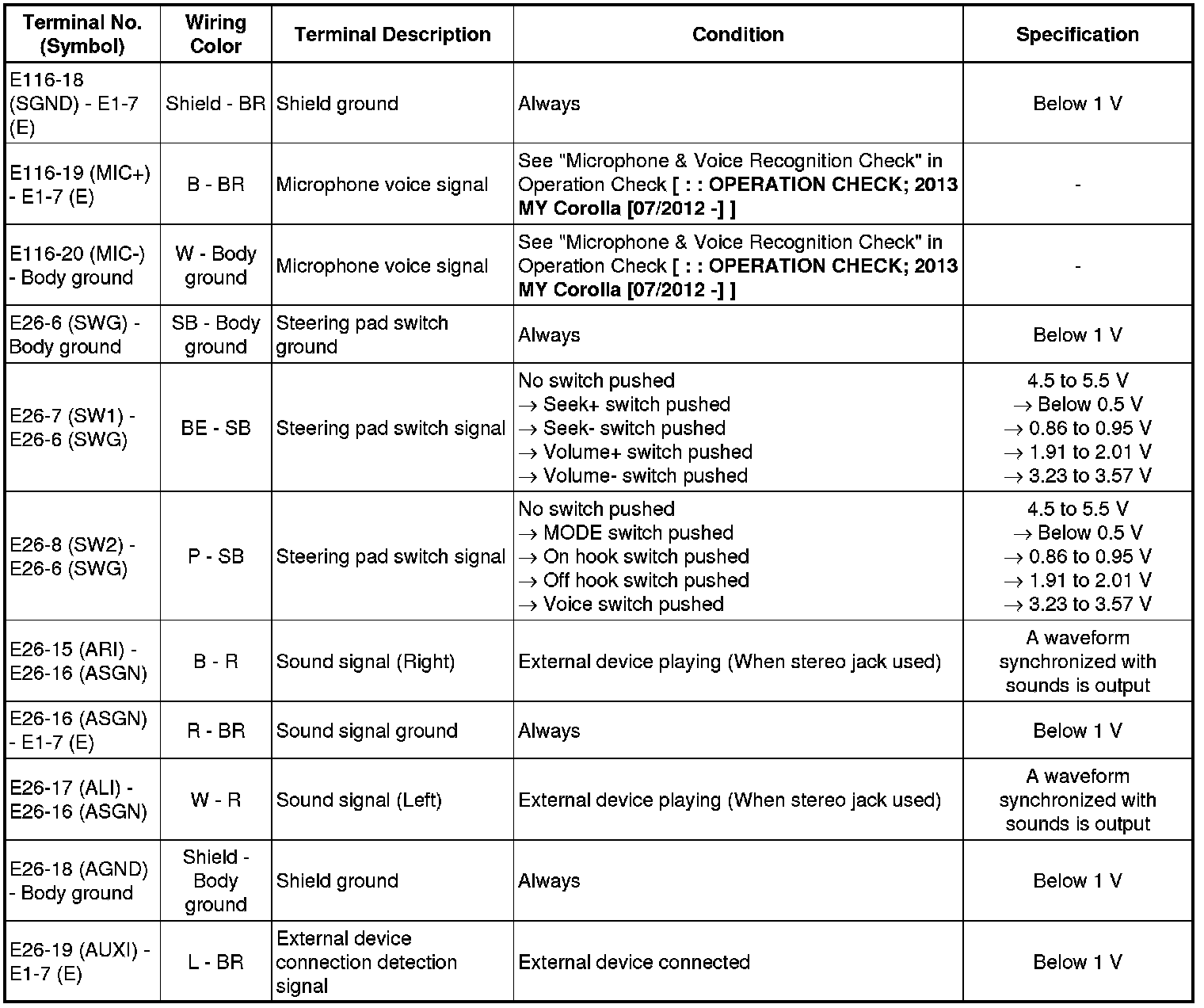

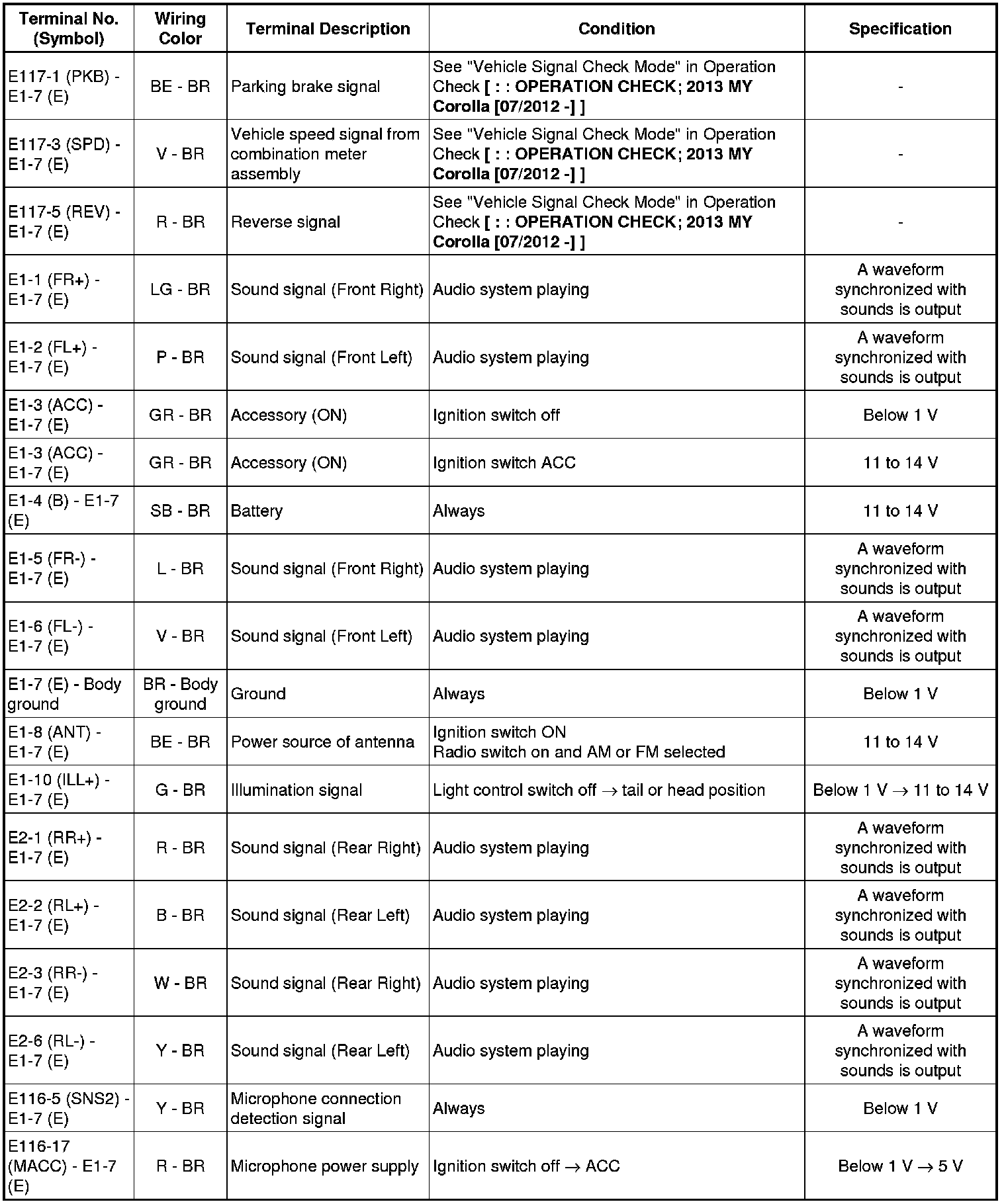

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/ Multi-display with DVD Player): TERMINALS OF ECU; 2013 MY Corolla [07/2012 -]

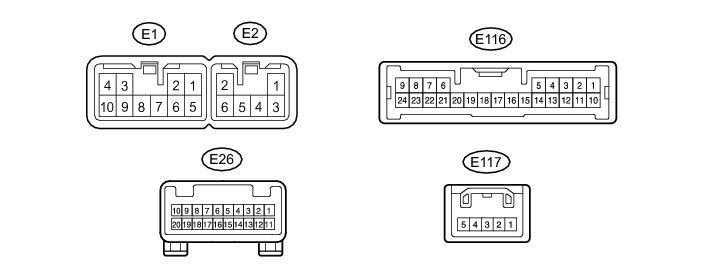

1. NAVIGATION RECEIVER ASSEMBLY
