System Diagram
System Diagram

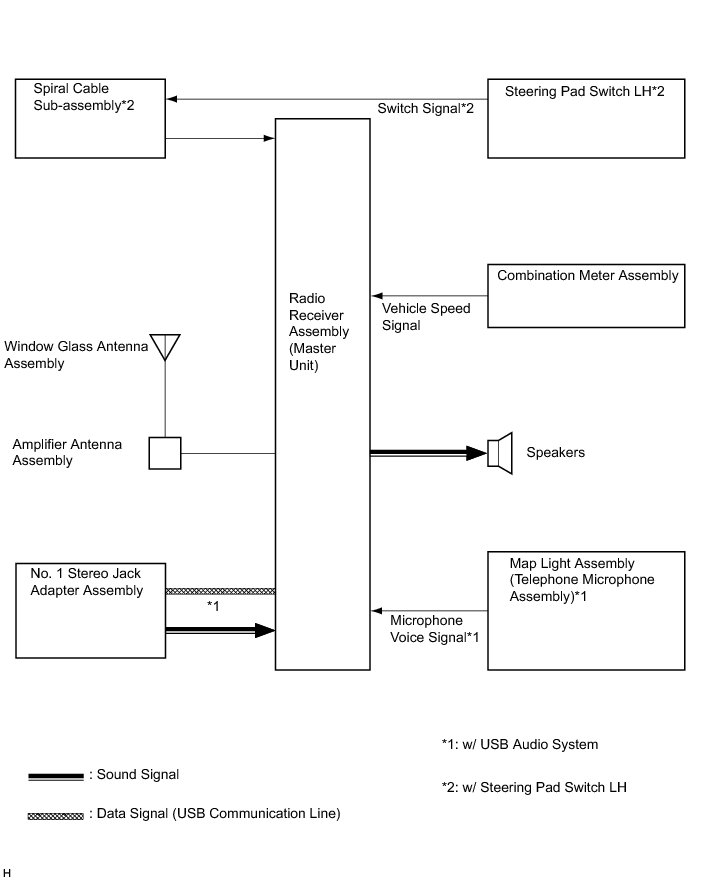

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/o Multi-display): SYSTEM DIAGRAM; 2013 MY Corolla [07/2012 -]
