Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Description and Operation >> Audio and Visual System (W/ Multi-Display Without DVD Player) >> System Diagram

System Diagram

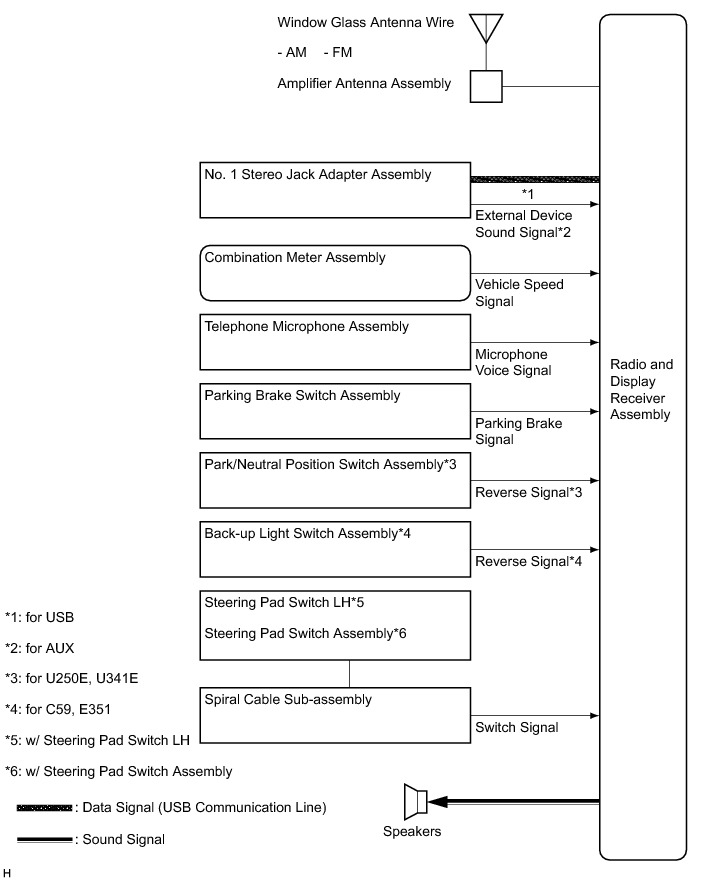

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM (w/ Multi-display without DVD Player): SYSTEM DIAGRAM; 2013 MY Corolla [07/2012 -]
