Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Locations >> Smart Key System (For Entry Function)

Smart Key System (For Entry Function)

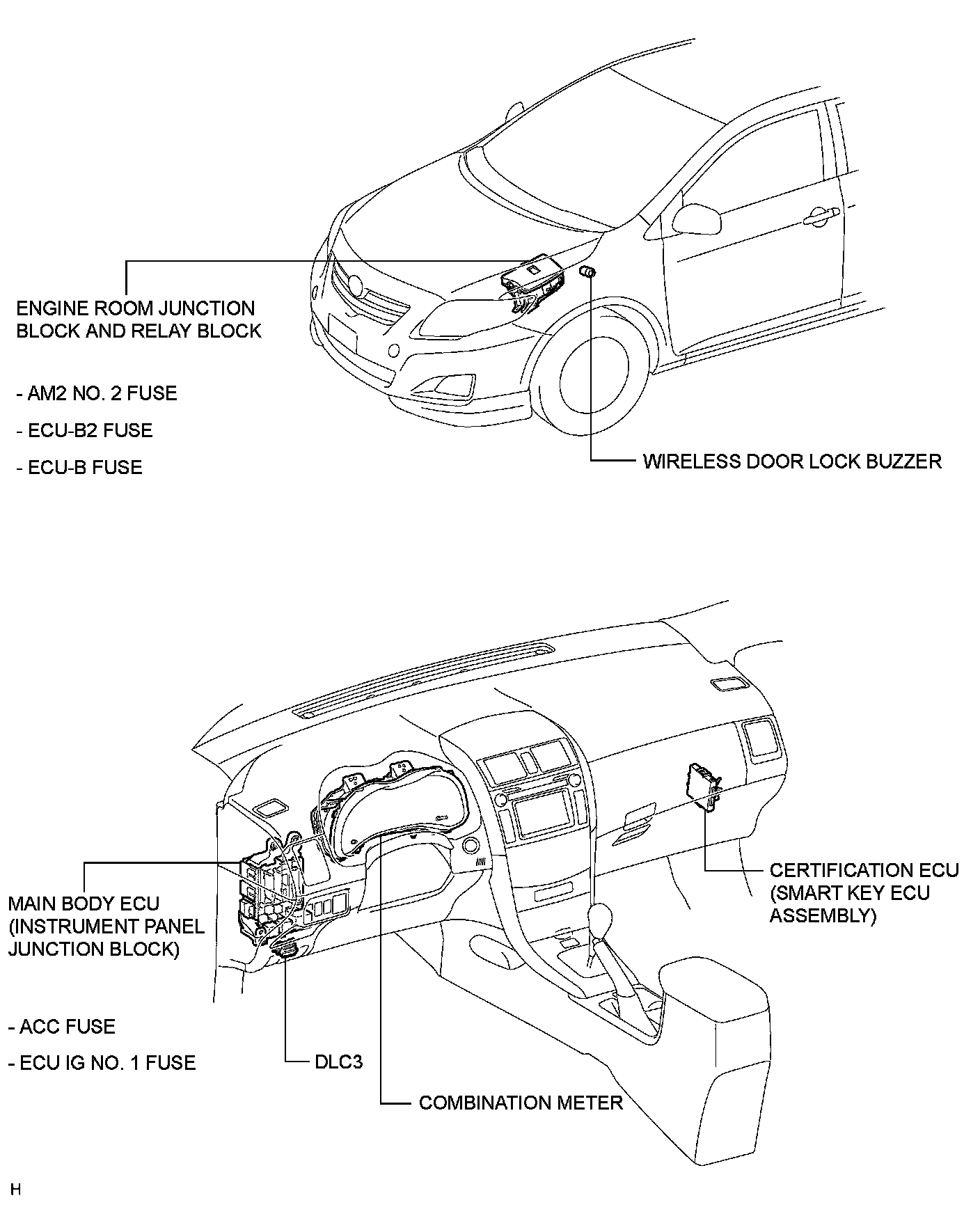

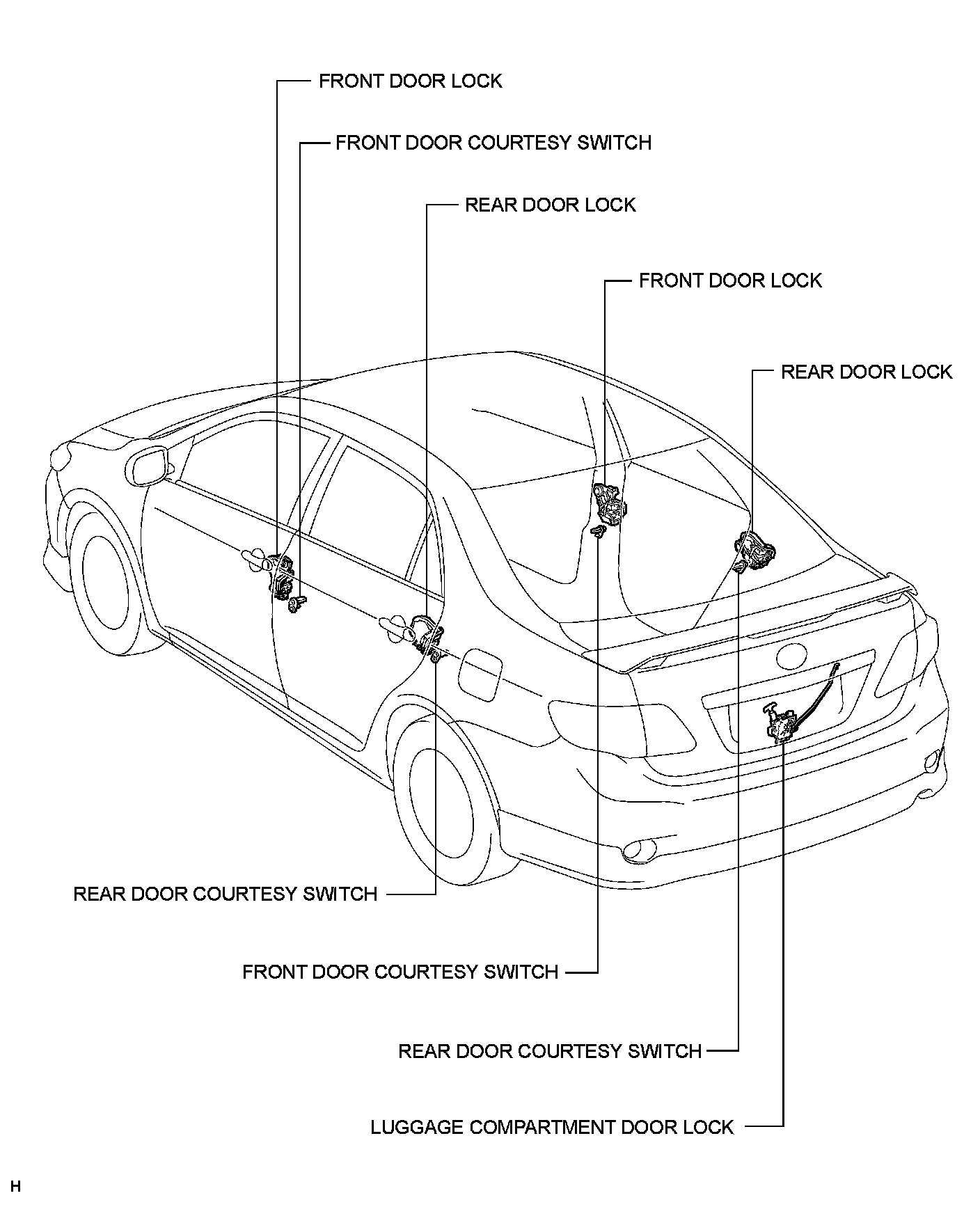

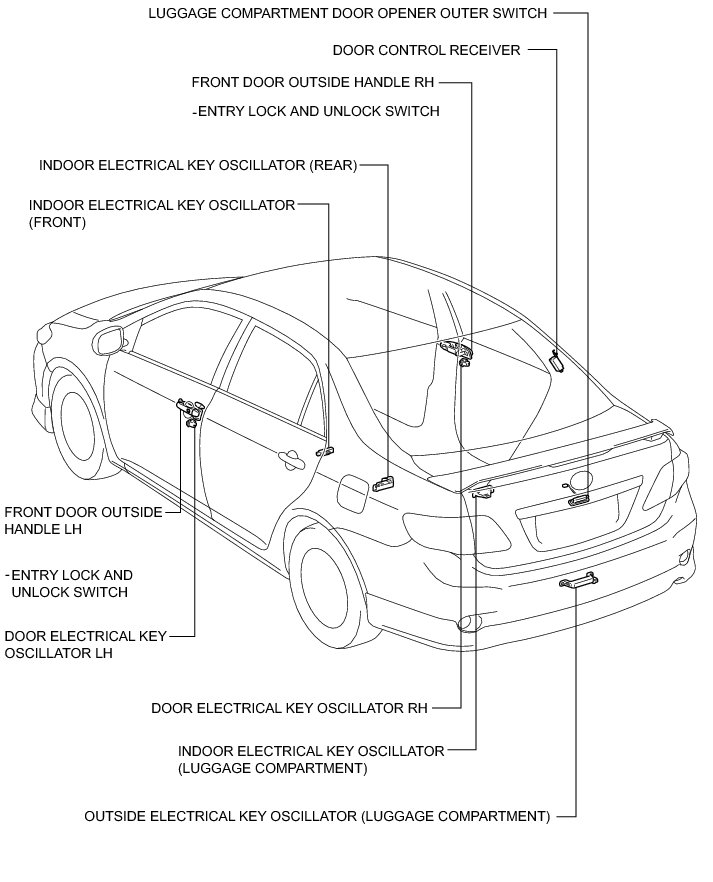

THEFT DETERRENT / KEYLESS ENTRY: SMART KEY SYSTEM (for Entry Function): PARTS LOCATION; 2013 MY Corolla [07/2012 -]
