Removal

THEFT DETERRENT / KEYLESS ENTRY: TRANSPONDER KEY AMPLIFIER: REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE STEERING WHEEL ASSEMBLY

Removal

2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

3. REMOVE LOWER STEERING COLUMN COVER Removal

4. REMOVE UPPER STEERING COLUMN COVER Removal

5. REMOVE TRANSPONDER KEY AMPLIFIER

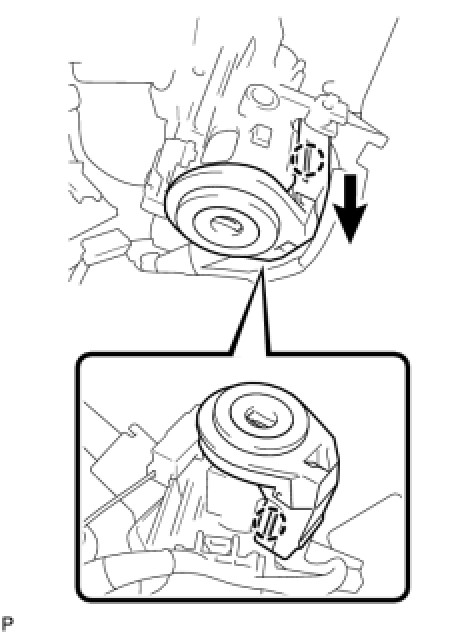

(a) Disengage the 2 claws as shown in the illustration.

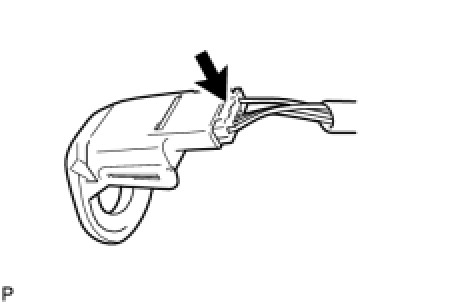

(b) Disconnect the connector and remove the transponder key amplifier.
