Antenna, Radio: Testing and Inspection

AUDIO / VIDEO: WINDOW GLASS ANTENNA WIRE: ON-VEHICLE INSPECTION; 2013 MY Corolla [07/2012 -]

1. INSPECT WINDOW GLASS ANTENNA WIRE

(a) Check for continuity of the antenna.





HINT

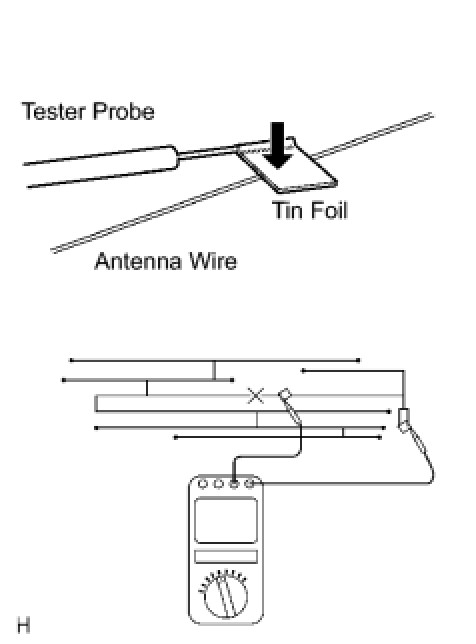

Check for continuity at the center of each antenna wire as shown in the illustration.

NOTICE:
* When cleaning the glass, wipe it in the direction of the wire with a soft dry cloth. Take care not to damage the wire. Do not use detergents or glass cleaners with abrasive ingredients.
* When measuring voltage, wrap a piece of tin foil around the tip of the negative probe and press the foil against the wire with your finger as shown in the illustration.

OK:

There is continuity in the antenna.

If the result is not specified, repair the window glass antenna wire.
