Removal





AUDIO / VIDEO: RADIO ANTENNA (for Satellite Radio): REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE ROOF HEADLINING ASSEMBLY

Removal

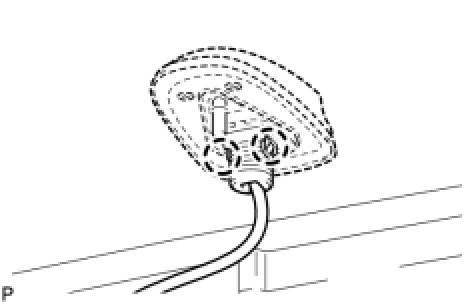

2. REMOVE SATELLITE RADIO ANTENNA ASSEMBLY

(a) Disconnect the connector.





(b) Remove the antenna nut.

(c) Disengage the 2 claws and remove the satellite radio antenna assembly.
