Removal

AUDIO / VIDEO: RADIO ANTENNA CORD: REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY

Removal

2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (w/ USB Audio System) Removal

3. REMOVE RADIO RECEIVER WITH BRACKET (for Radio Receiver Type without USB Audio System) Removal

4. REMOVE RADIO RECEIVER WITH BRACKET (for Radio Receiver Type with USB Audio System) Removal

5. REMOVE RADIO AND DISPLAY RECEIVER WITH BRACKET (for Radio and Display Type) Removal

6. REMOVE NAVIGATION RECEIVER WITH BRACKET (for Navigation Receiver Type) Removal

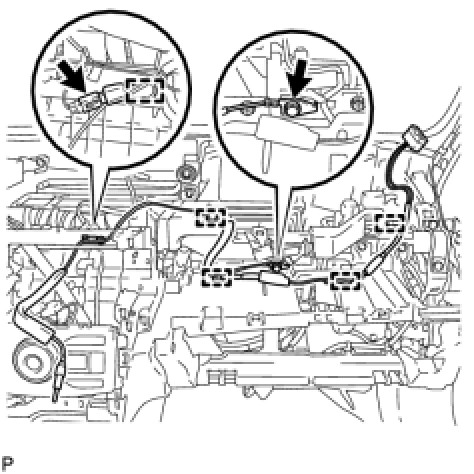

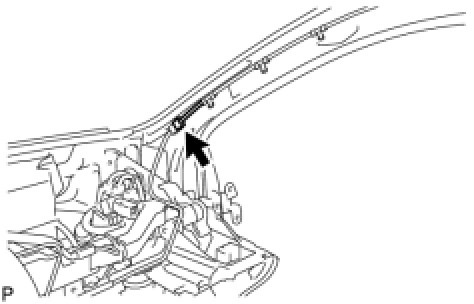

7. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

(a) Disconnect the connector.





(b) Disengage the clamp.





(c) for 3 Connector Type:

(1) Remove the bolt.





(2) Disconnect the connector.

(3) Disengage the 5 clamps and remove the No. 2 antenna cord sub-assembly.

(d) for 2 Connector Type:

(1) Remove the bolt.





(2) Disengage the 5 clamps and remove the No. 2 antenna cord sub-assembly.
