Removal

CLUTCH: CLUTCH ACCUMULATOR (for E351): REMOVAL

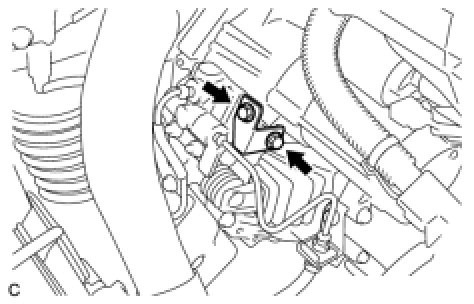

1. REMOVE RELEASE CYLINDER HEAT INSULATOR

(a) Remove the 2 bolts and release cylinder heat insulator.

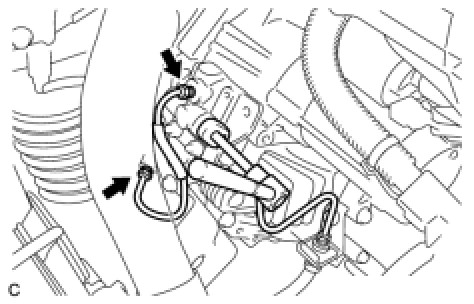

2. REMOVE CLUTCH ACCUMULATOR BRACKET

(a) Remove the 2 bolts and clutch accumulator bracket.





3. DISCONNECT CLUTCH LINE

(a) Using a union nut wrench (10 mm), remove the clutch line.





HINT
Use a container to collect the fluid.

(b) Remove the bolt and disconnect the clutch tube bracket.





4. REMOVE CLUTCH ACCUMULATOR ASSEMBLY

(a) Remove the 2 nuts and clutch accumulator assembly.
