Disassembly

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: DIFFERENTIAL CASE: DISASSEMBLY

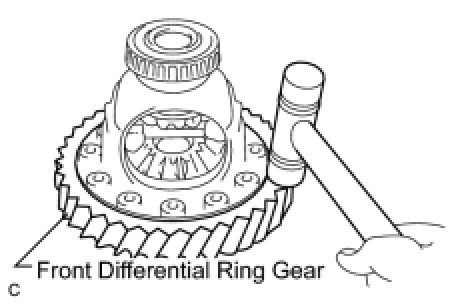

1. REMOVE FRONT DIFFERENTIAL RING GEAR

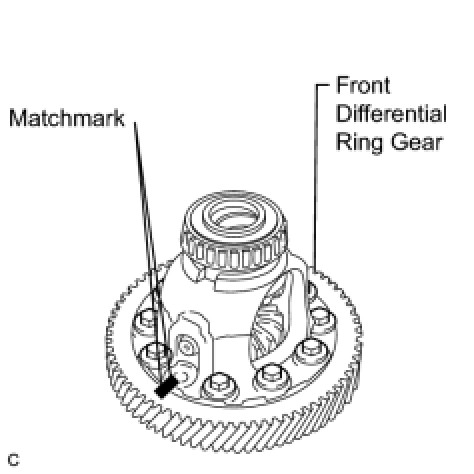

(a) Put matchmarks on the front differential ring gear and differential case.

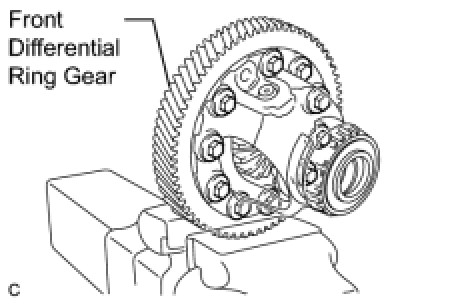

(b) Remove the 10 bolts.

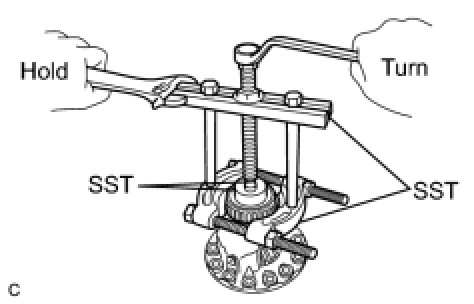

2. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING

(a) Using SST, remove the front differential case front tapered roller bearing from the differential case.

SST : 09950-00020

SST : 09950-00030

SST : 09950-40011

09957-04010

SST : 09950-60010

09951-00480

(b) Using SST, remove the front differential case front tapered roller bearing outer race.

SST : 09308-00010

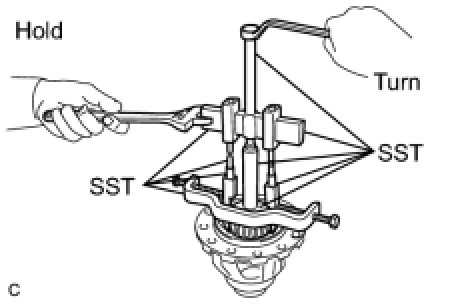

3. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING

(a) Using SST, remove the front differential case rear tapered roller bearing from the differential case.

SST : 09950-00020

SST : 09950-00030

SST : 09950-40011

09955-04061

09957-04010

09958-04011

SST : 09950-50013

09951-05010

09952-05010

09953-05020

09954-05021

09955-05010

SST : 09950-60010

09951-00480

SST : 09950-70010

09951-07100

(b) Using SST, remove the front differential case rear tapered roller bearing outer race.

SST : 09308-00010

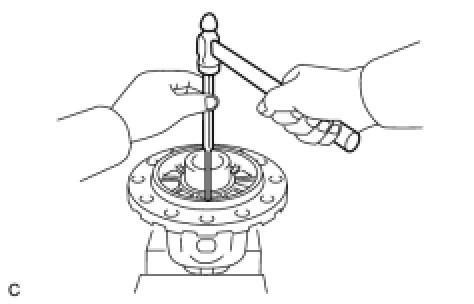

4. REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN

(a) Using a pin punch and a hammer, remove the straight pin.

NOTICE:
Before removing the straight pin, unstake it with a pin punch.

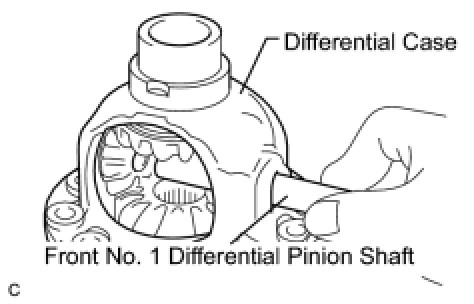

5. REMOVE FRONT NO. 1 DIFFERENTIAL PINION SHAFT

(a) Remove the front No. 1 differential pinion shaft from the differential case.

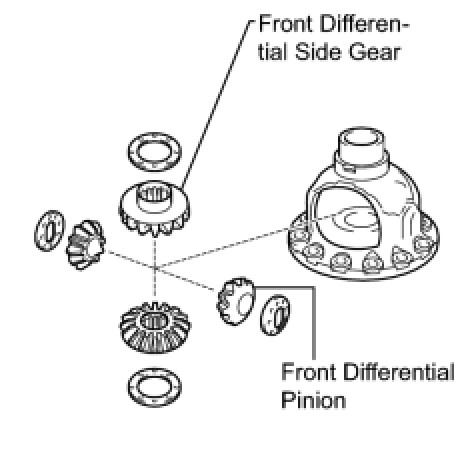

6. REMOVE FRONT DIFFERENTIAL SIDE GEAR

(a) Remove the 2 front differential pinions, 2 pinion thrust washers, 2 front differential side gears and 2 side gear thrust washers from the differential case.

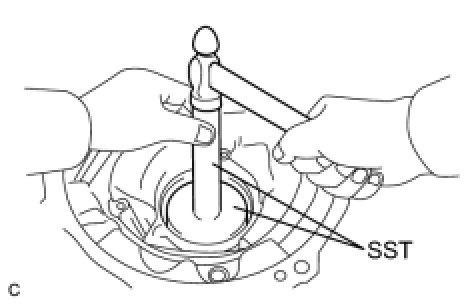

7. REMOVE TRANSAXLE HOUSING OIL SEAL

(a) Using SST and a hammer, remove the oil seal.

SST : 09950-60010

09951-00630

SST : 09950-70010

09951-07200

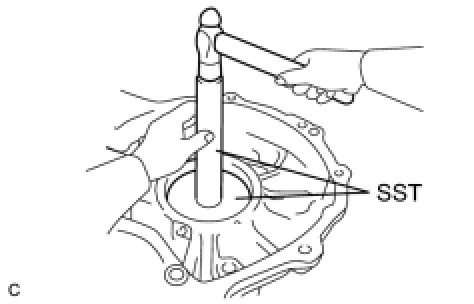

8. REMOVE DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL

(a) Using SST and a hammer, remove the oil seal.

SST : 09608-10010

SST : 09950-70010

09951-07100
