Replacement

U250E AUTOMATIC TRANSMISSION / TRANSAXLE: DIFFERENTIAL OIL SEAL: REPLACEMENT

1. REMOVE ENGINE UNDER COVER LH

2. REMOVE ENGINE UNDER COVER RH

3. DRAIN AUTOMATIC TRANSAXLE FLUID Removal

4. REMOVE FRONT DRIVE SHAFT ASSEMBLY

Removal

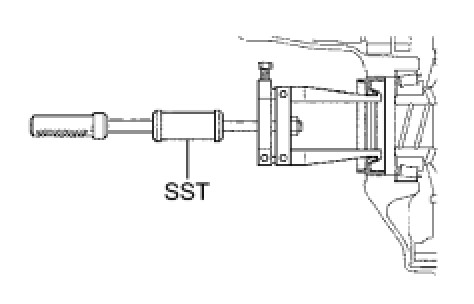

5. REMOVE TRANSAXLE HOUSING OIL SEAL

(a) Using SST, pull out the oil seal.





SST : 09308-00010

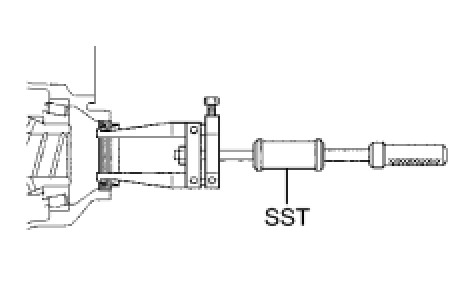

6. REMOVE DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL

(a) Using SST, pull out the oil seal.





SST : 09308-00010

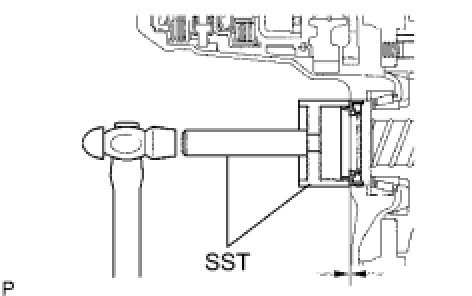

7. INSTALL TRANSAXLE HOUSING OIL SEAL

(a) Using SST and a hammer, install a new oil seal.





SST : 09316-60011

09316-00011

Oil seal installation depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

(b) Coat the lip of the oil seal with MP grease.

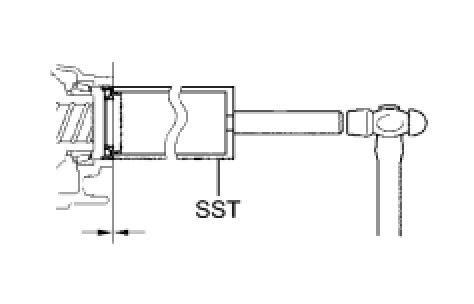

8. INSTALL DIFFERENTIAL SIDE BEARING RETAINER OIL SEAL

(a) Using SST and a hammer, install a new oil seal.





SST : 09649-17010

SST : 09950-70010

09951-07150

Oil seal installation depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

(b) Coat the lip of the oil seal with MP grease.

9. INSTALL FRONT DRIVE SHAFT ASSEMBLY

Installation

10. ADD AUTOMATIC TRANSAXLE FLUID

11. INSPECT TRANSAXLE FLUID LEVEL Procedures

12. INSTALL ENGINE UNDER COVER LH

13. INSTALL ENGINE UNDER COVER RH
