Fluid Pan, A/T
AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

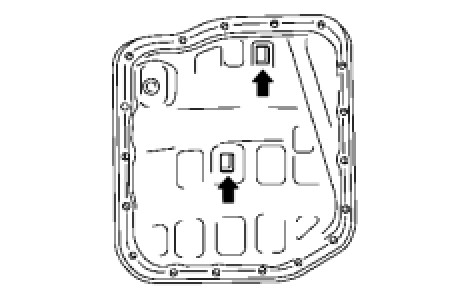

Install the 2 magnets in the oil pan.

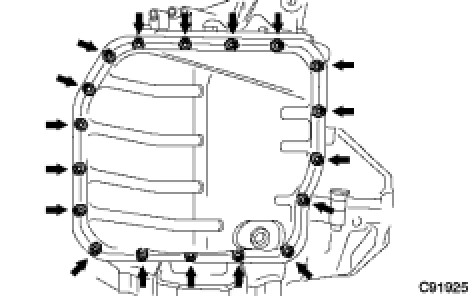

Using a new gasket, install the oil pan to the transaxle case with the 18 bolts.
Torque 7.8 Nm (80 kgf-cm, 69 in-lbf)
AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
Install the 2 magnets in the oil pan.
Using a new gasket, install the oil pan to the transaxle case with the 18 bolts.
Torque 7.8 Nm (80 kgf-cm, 69 in-lbf)
