Reassembly

STEERING GEAR / LINKAGE: STEERING GEAR (for 4WD): REASSEMBLY

1. INSTALL NO. 2 STEERING RACK BOOT

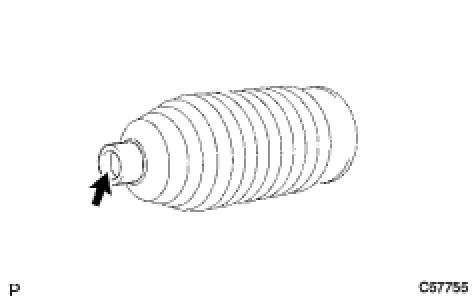

(a) Apply lithium soap base glycol grease to the inside of the small opening of a new No. 2 steering rack boot.





(b) Install the No. 2 steering rack boot to the groove on the rack housing.

NOTICE:
* Be careful not to damage or twist the boot.
* Make sure that the boot is free of rust and foreign matter.

2. INSTALL NO. 1 STEERING RACK BOOT

HINT
Perform the same procedure as for the No. 2 steering rack boot.

3. INSTALL NO. 2 STEERING RACK BOOT CLAMP

(a) Using SST, tighten a new No. 2 steering rack boot clamp as shown in the illustration.





SST : 09521-24010

Clearance:

3.0 mm (0.118 in.) or less

NOTICE:
Be careful not to damage or twist the No. 2 steering rack boot.

4. INSTALL NO. 1 STEERING RACK BOOT CLAMP

HINT
Perform the same procedure as for the No. 2 steering rack boot clamp.

SST : 09521-24010

5. INSTALL STEERING RACK BOOT CLIP (for LH Side)

(a) Using pliers, install the steering rack boot clip.

6. INSTALL STEERING RACK BOOT CLIP (for RH Side)

HINT
Perform the same procedure as for the LH side.

7. INSPECT STEERING GEAR ASSEMBLY

(a) Using SST, rotate the pinion shaft to see if both the left and the right steering rack boots expand and contract smoothly.





SST : 09616-00011

HINT
If the operation cannot be done as specified, use new steering rack boot clamps and reinstall the steering rack boots.
