Home >> Toyota >> 2011 >> Venza AWD L4-2.7L (1AR-FE) >> Repair and Diagnosis >> Diagrams >> Components >> Position of Parts In Seat >> w/ Front Passenger's Power Seat

w/ Front Passenger's Power Seat

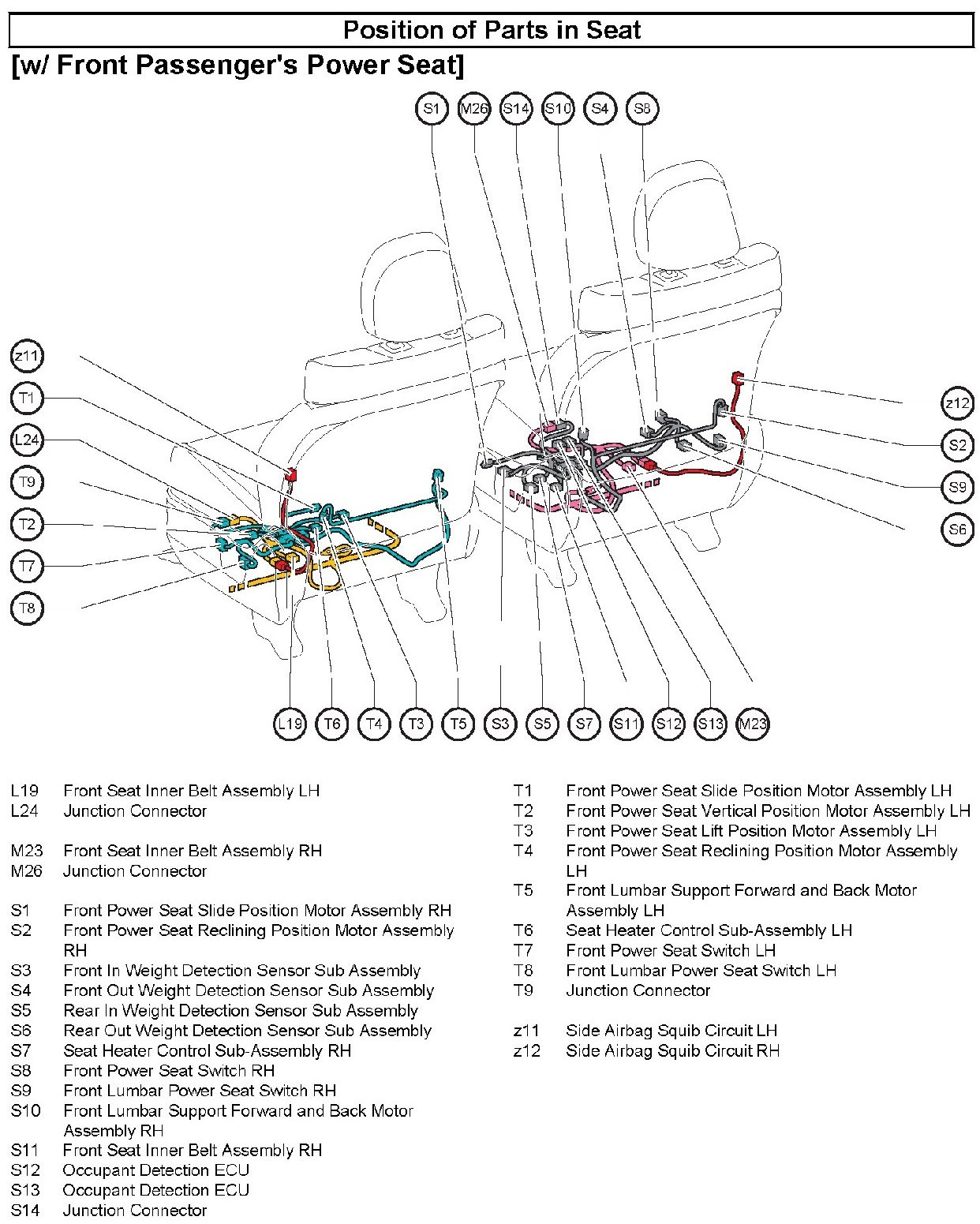

Position Of Parts In Seat [w/ Front Passenger's Power Seat]:
