Torque Specifications





SPECIFICATIONS: DRIVE SHAFT / PROPELLER SHAFT: TORQUE SPECIFICATIONS

FRONT DRIVE SHAFT (for 2AZ-FE)





FRONT DRIVE SHAFT (for 2ZR-FE)

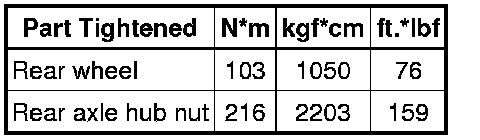

REAR DRIVE SHAFT





Propeller shaft
