Windshield Washer Spray Nozzle: Adjustments

WIPER AND WASHER: WASHER NOZZLE: ADJUSTMENT

PRECAUTION OF WASHER NOZZLE ADJUSTMENT

(a) Do not clean or adjust the washer nozzle with a safety pin, etc. because;

(1) the washer nozzle tip is made of resin and could be damaged.

(2) adjustment is not necessary because the washer nozzle is a spray type. If it is necessary to change the nozzle angle, replace the washer nozzle with one that has a different nozzle angle. Adjustments

(b) In case the washer nozzle is clogged with wax, etc., remove it and clean the nozzle hole with a soft resin brush, etc.


1. ADJUST WASHER NOZZLE SUB-ASSEMBLY

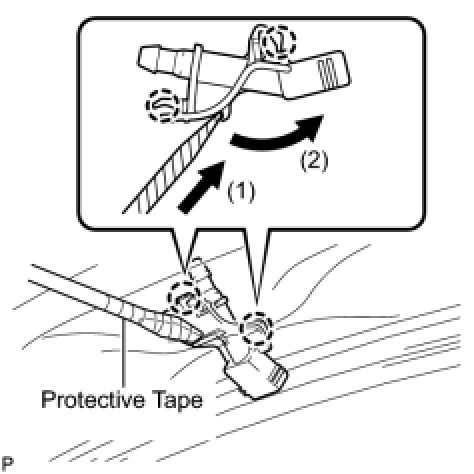

(a) Using a screwdriver, disengage the 2 claws and separate the washer nozzle sub-assembly as shown in the illustration.





NOTICE:
Be careful not to damage the windshield.

HINT
Tape the screwdriver tip before use.

(b) Disconnect the washer nozzle sub-assembly from the washer hose.





NOTICE:
Washer nozzles cannot be reused.

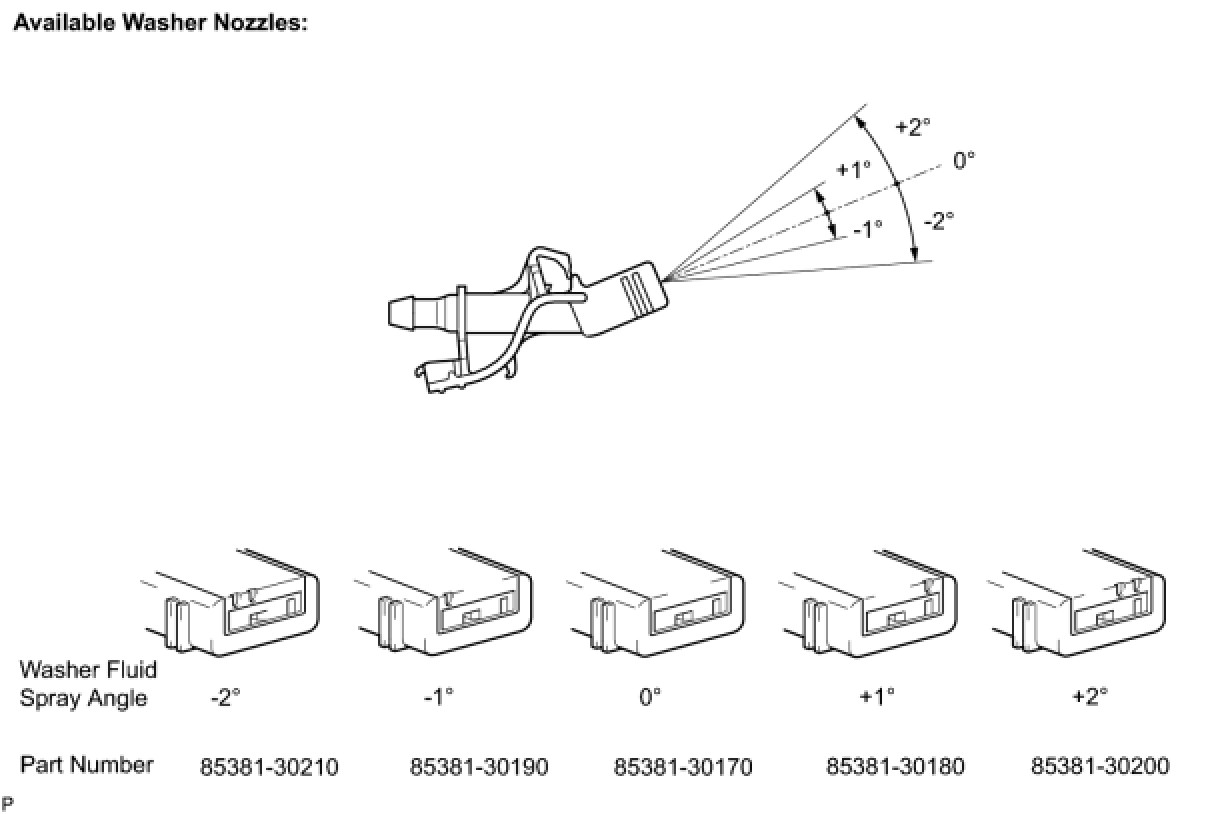

(c) Select a washer nozzle sub-assembly so that the washer fluid spray area is within the standard.





(d) Connect the selected washer nozzle sub-assembly to the washer hose.

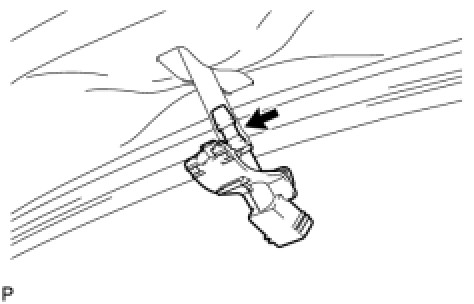

(e) Engage the 2 claws and install the washer nozzle sub-assembly.
