Removal

INTERIOR: REAR SUNSHADE ASSEMBLY: REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

2. REMOVE REAR SEAT HEADREST ASSEMBLY

3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

4. REMOVE REAR SEAT BACK COVER Removal

5. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY LH Removal

6. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH Removal

7. REMOVE CENTER SEAT BACK ASSEMBLY Removal

8. REMOVE REAR DOOR SCUFF PLATE LH Removal

9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

10. REMOVE REAR DOOR SCUFF PLATE RH Removal

11. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

12. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH Disassembly

13. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH

HINT
Use the same procedures for the RH side and the LH side.

14. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH Removal

15. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMC Made) Removal

16. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH (for TMMK Made) Removal

17. REMOVE ROOF SIDE INNER GARNISH LH Removal

18. REMOVE ROOF SIDE INNER GARNISH RH Removal

19. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side) Removal

20. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side) Removal

21. REMOVE REAR SEAT SHOULDER BELT COVER Removal

22. REMOVE REAR SEAT SHOULDER BELT HOLE COVER Removal

23. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY Removal

24. REMOVE CURTAIN RAIL END CAP LH

(a) Disengage the 2 claws and remove the curtain rail end cap LH.





25. REMOVE CURTAIN RAIL END CAP RH

HINT
Use the same procedures for the RH side and the LH side.

26. REMOVE REAR WINDOW SHADE ASSEMBLY

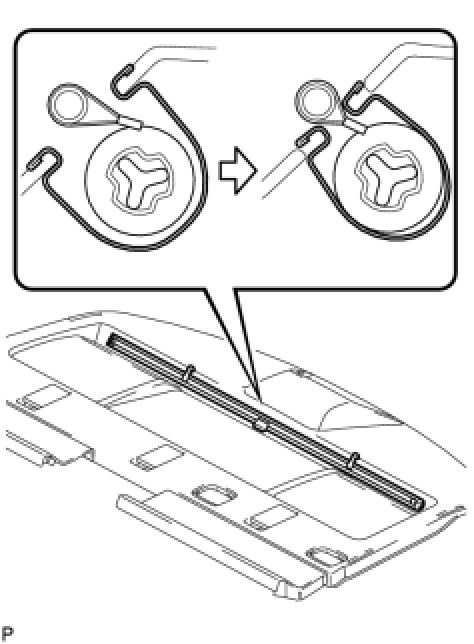

(a) Remove the rear window shade assembly as shown in the illustration.
