Service Data





SERVICE SPECIFICATIONS: EB62 MANUAL TRANSAXLE: SERVICE DATA

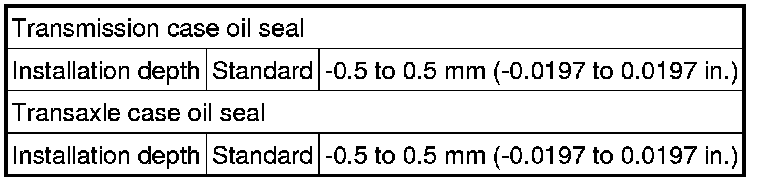

Differential Oil Seal

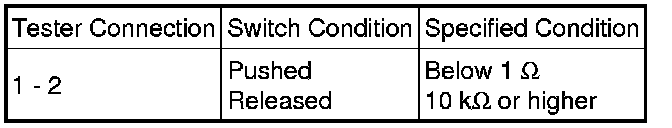

Back-up Light Switch

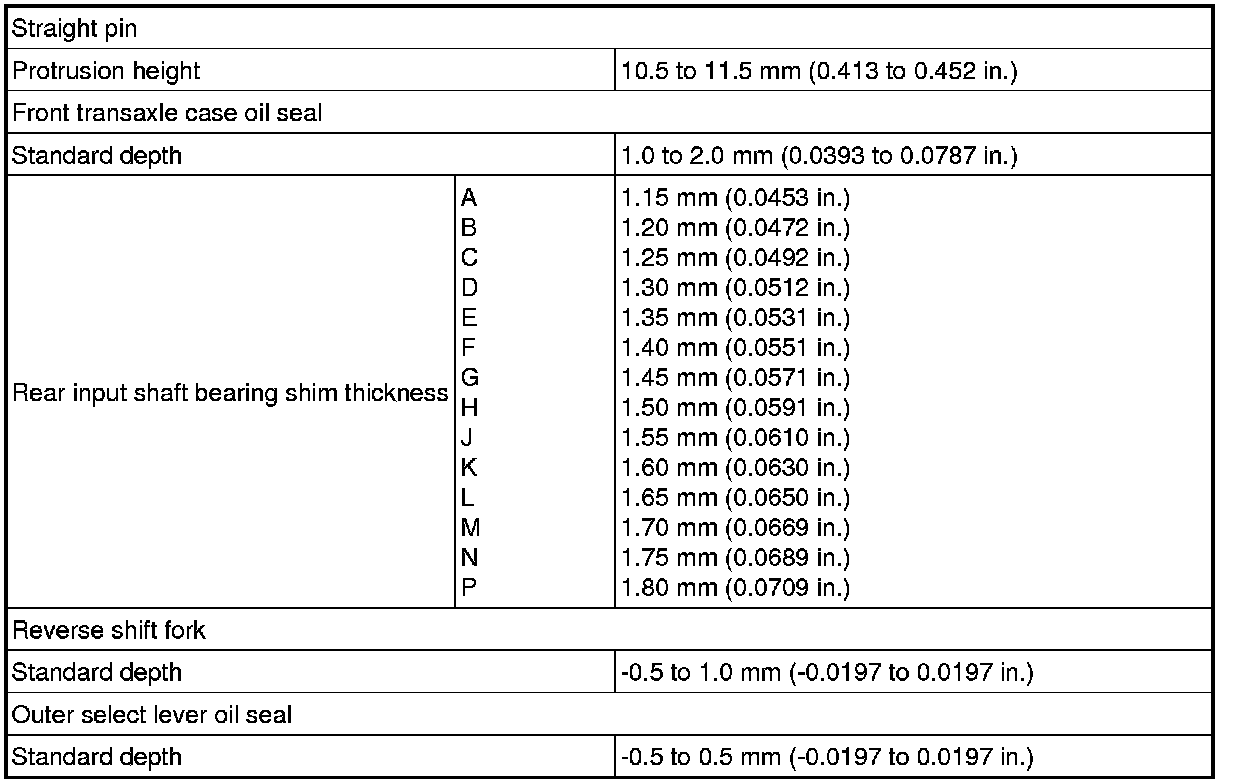

Manual Transaxle Unit

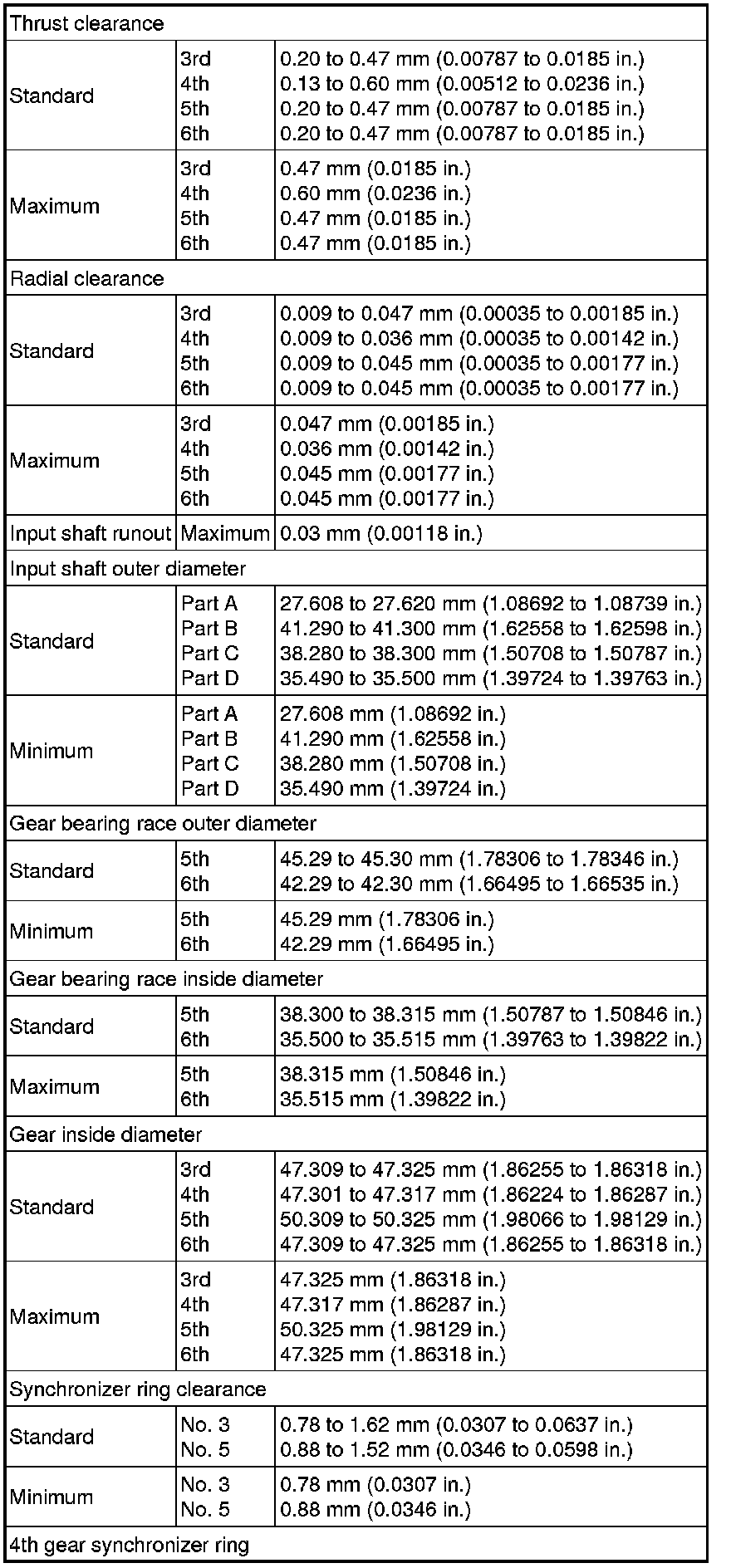

Input Shaft

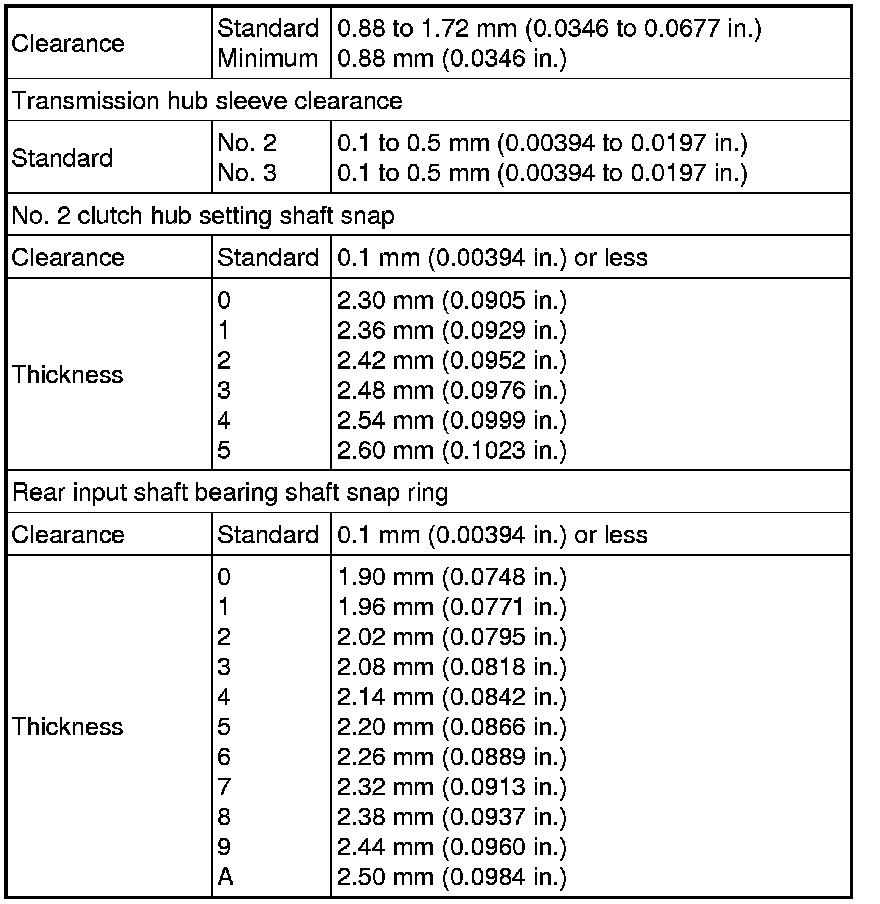

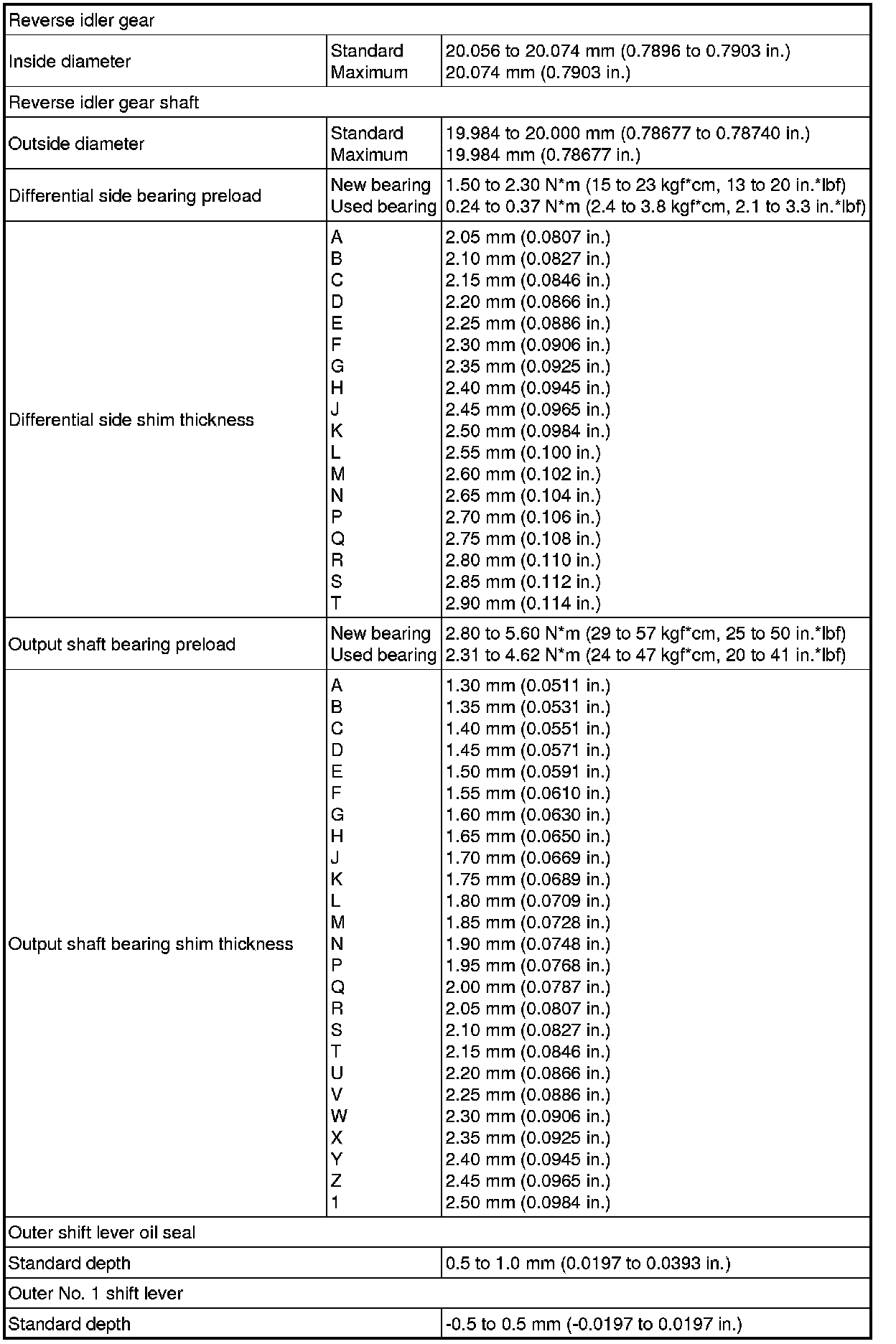

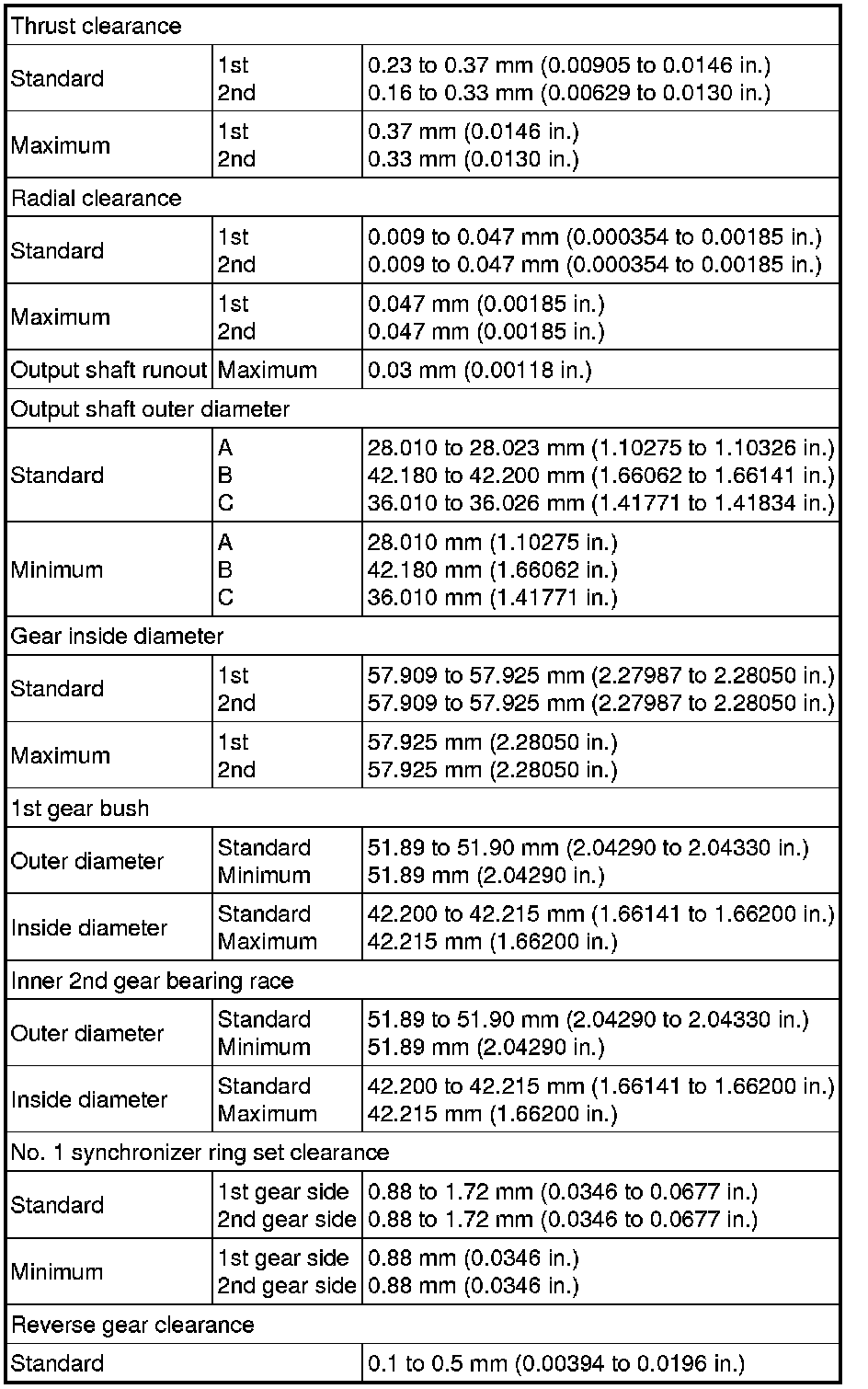

Output Shaft

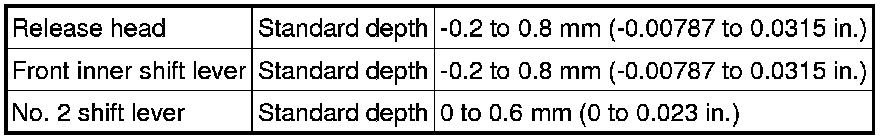

Shift and Select Lever Shaft

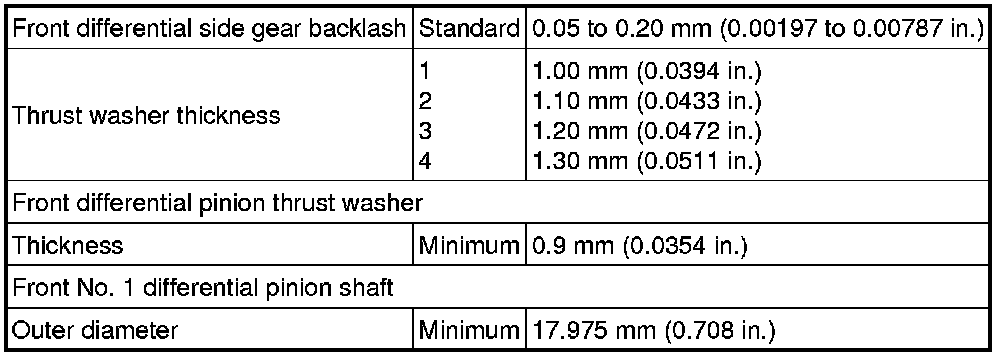

Differential Case
