Manual Transmission/Transaxle: Application and ID

INTRODUCTION: IDENTIFICATION INFORMATION: VEHICLE IDENTIFICATION AND SERIAL NUMBERS

1. VEHICLE IDENTIFICATION NUMBER

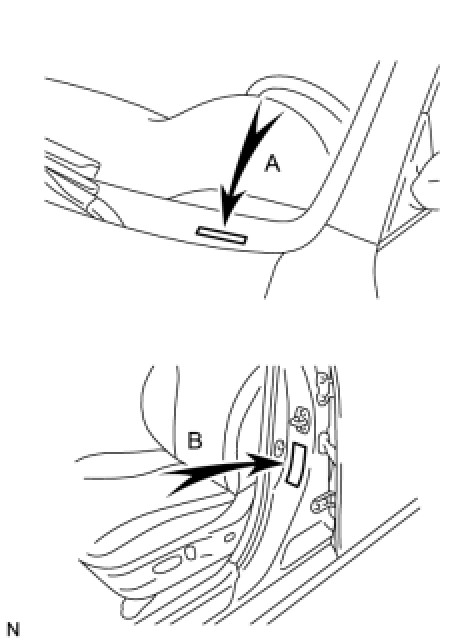

(a) The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.





A:

Vehicle Identification Number

B:

Certification Label

2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

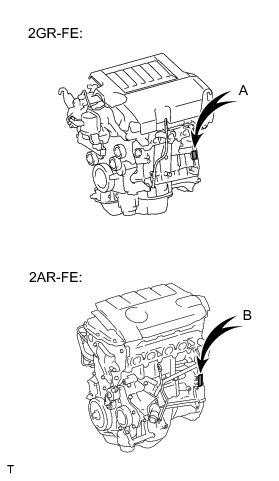

(a) The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.





A:

2GR-FE Engine Serial Number

B:

2AR-FE Engine Serial Number

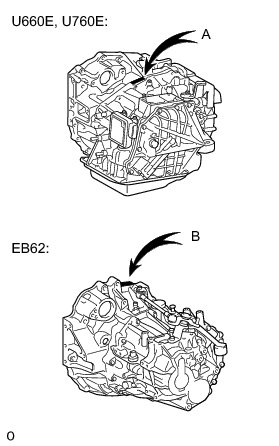

(b) The transaxle serial number is stamped on the transaxle case as shown in the illustration.





A:

U660E, U760E Transaxle Serial Number

B:

EB62 Transaxle Serial Number
