Home >> Toyota >> 2011 >> Camry L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Axle Shaft Assembly >> Service and Repair >> Removal and Replacement >> Front Drive Shaft Assembly (for TMMK Made) >> Components

Components

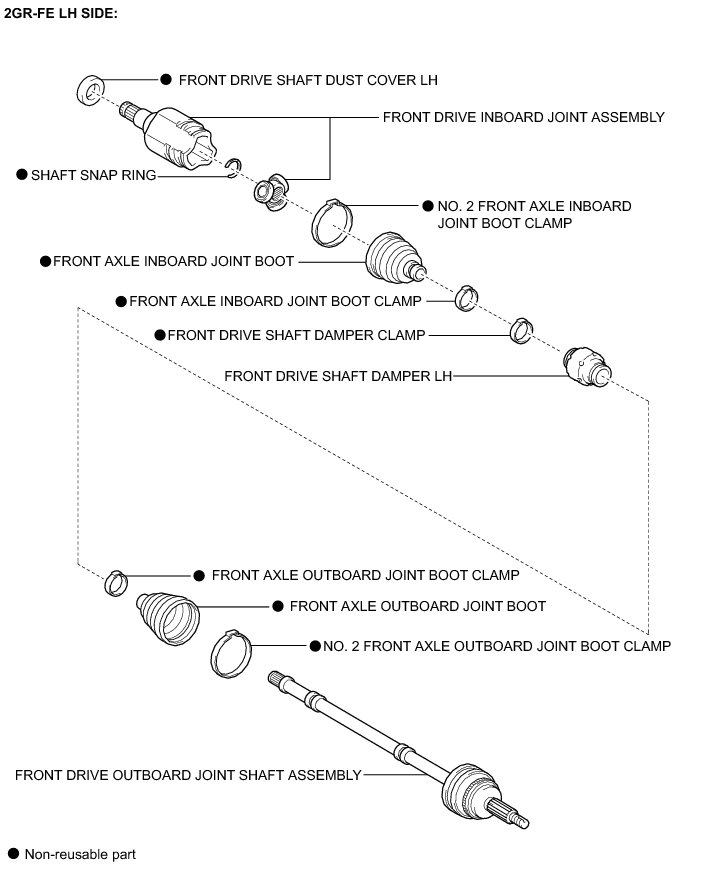

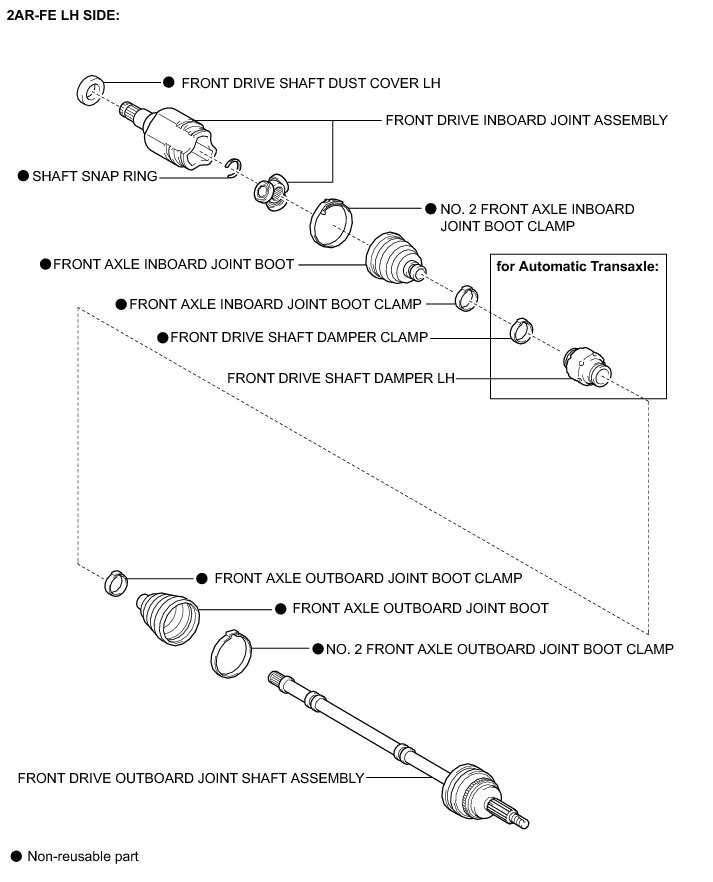

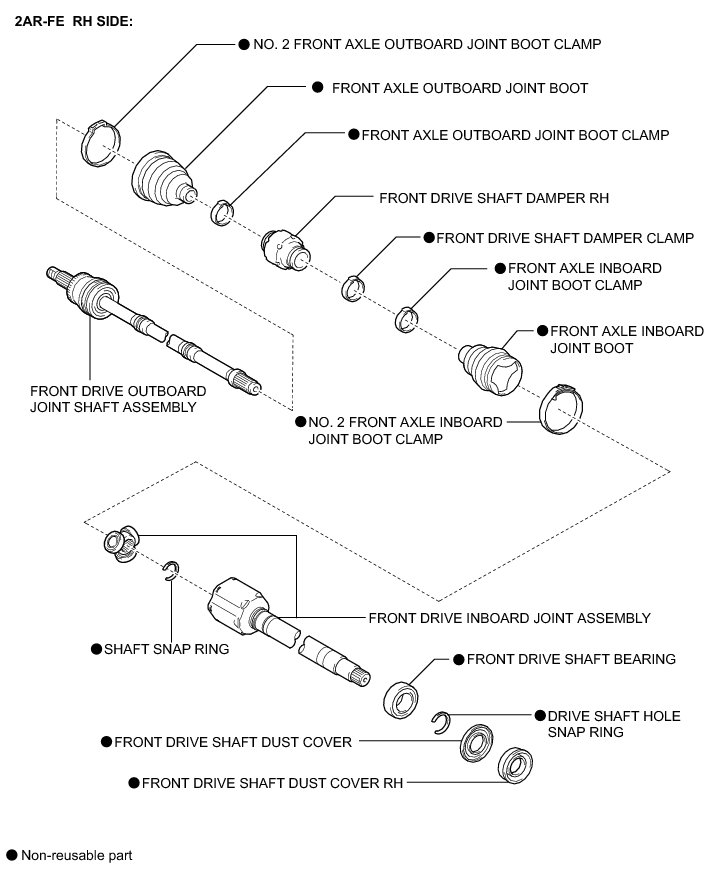

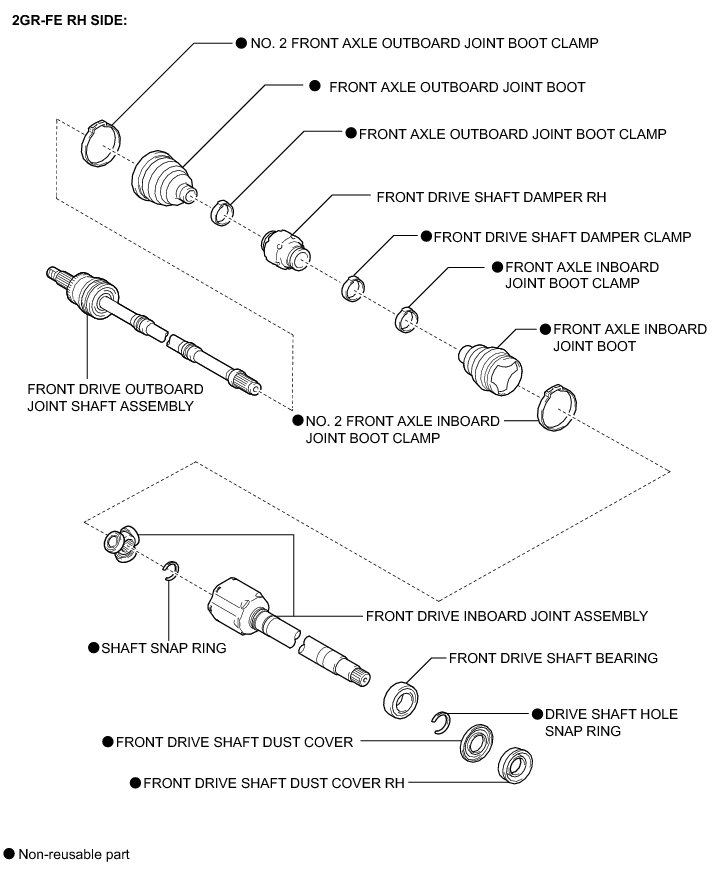

DRIVE SHAFT: FRONT DRIVE SHAFT ASSEMBLY (for TMMK Made): COMPONENTS
