A/T - Transaxle Replacement Repair Manual Supplement: Overview

T-SB-0351-10

December 6, 2010

Repair Manual Supplement: Transaxle Replacement

Service Category
Drivetrain

Section
Automatic Transmission/Transaxle

Market
USA





Applicability

This TSB applies to 4 cylinder Camry vehicles only. The V6 Camry is covered in a separate bulletin.

Introduction

This bulletin supplements the Repair Manual procedures for transaxle removal and replacement with details on the use of a new Engine Support Bar (ESB) SST P/N 00002-ESUPPT-01 to assist in the removal and installation of the transaxle assembly. With the use of the Engine Support Bar it is no longer required for the engine assembly to be removed from the vehicle when removing and installing the transaxle assembly.

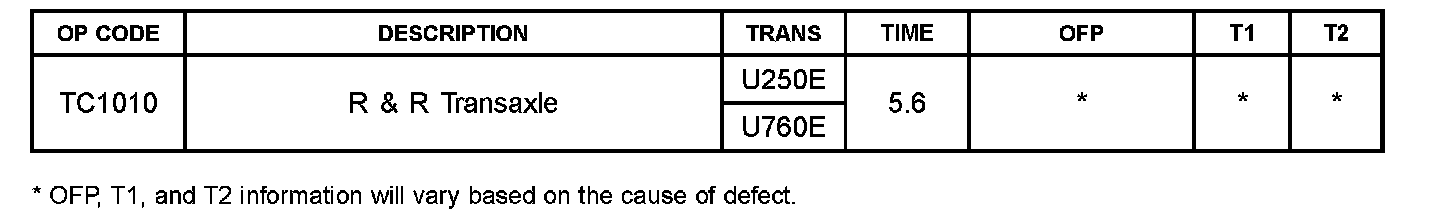

Warranty Information

APPLICABLE WARRANTY

Warranty application is limited to defects in material or workmanship under normal use. Length of coverage is determined by the OFR For more information regarding warranty coverage, please refer to the Warranty Policy & Procedures Manual. For more information regarding the Engine Support Bar, please refer to Warranty Procedures Bulletin PRO10-26.

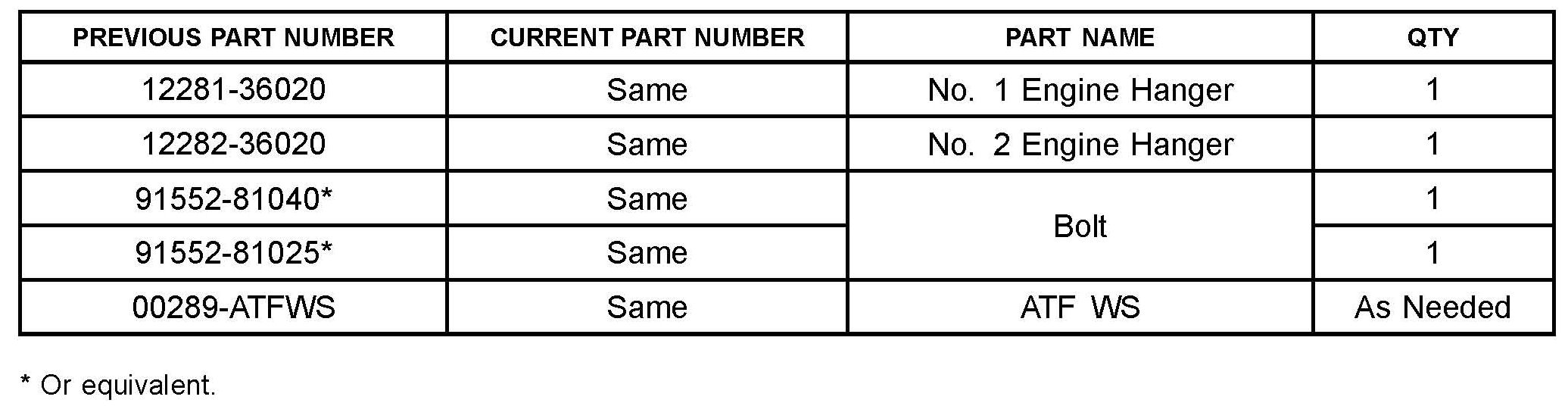

Parts Information

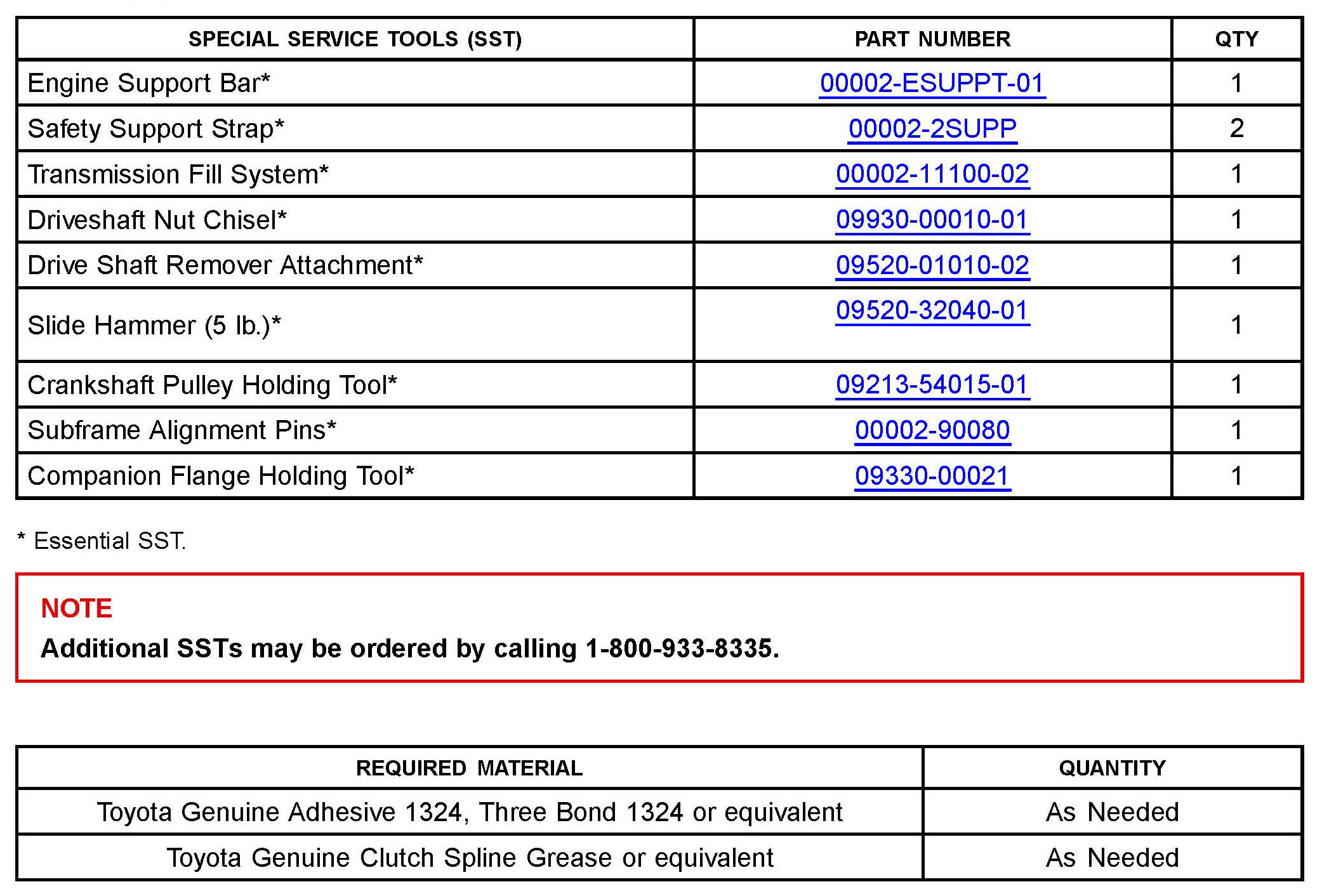

Required Tools & Equipment
