Disposal

SUSPENSION: REAR SHOCK ABSORBER: DISPOSAL

1. DISPOSE OF REAR SHOCK ABSORBER

(a) Fully extend the shock absorber piston rod.

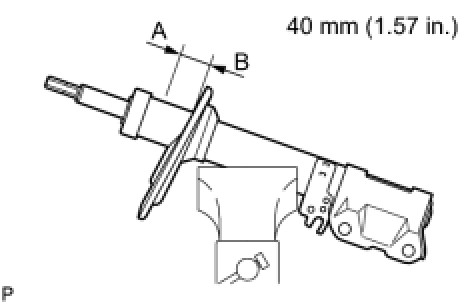

(b) Using a drill, make a hole in the cylinder between A and B as shown in the illustration to discharge the gas inside.

CAUTION:
* Be careful when drilling because shards of metal may fly about. Always use the proper safety equipment.
* The gas is colorless, odorless and non-poisonous.
